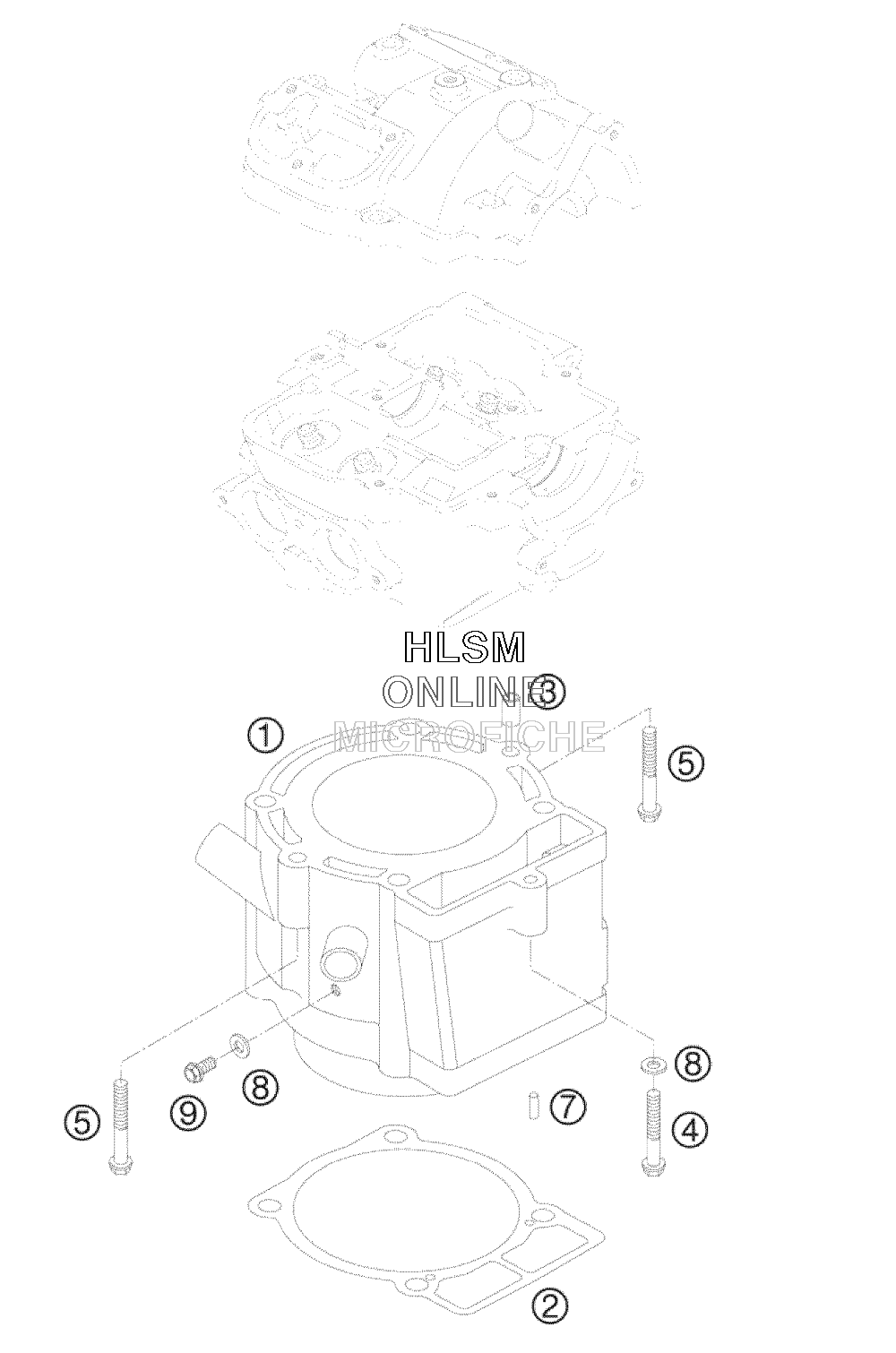

CYLINDER для Ktm 450 XC - 2009 года выпуска
-
№АртикулНазвание
-
159530005000 CYLINDER 89MM 400 RACINGCYLINDER 89MM 400 RACING
-
259430035000 CYLINDER BASE GASKET 0,8MMCYLINDER BASE GASKET 0,8MM
-
359030023000 DOWEL 6X8X11,5DOWEL 6X8X11,5
-
40025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
-
50025060456 HH COLLAR SCREW M6X45HH COLLAR SCREW M6X45
-
70402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
80603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
90025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
