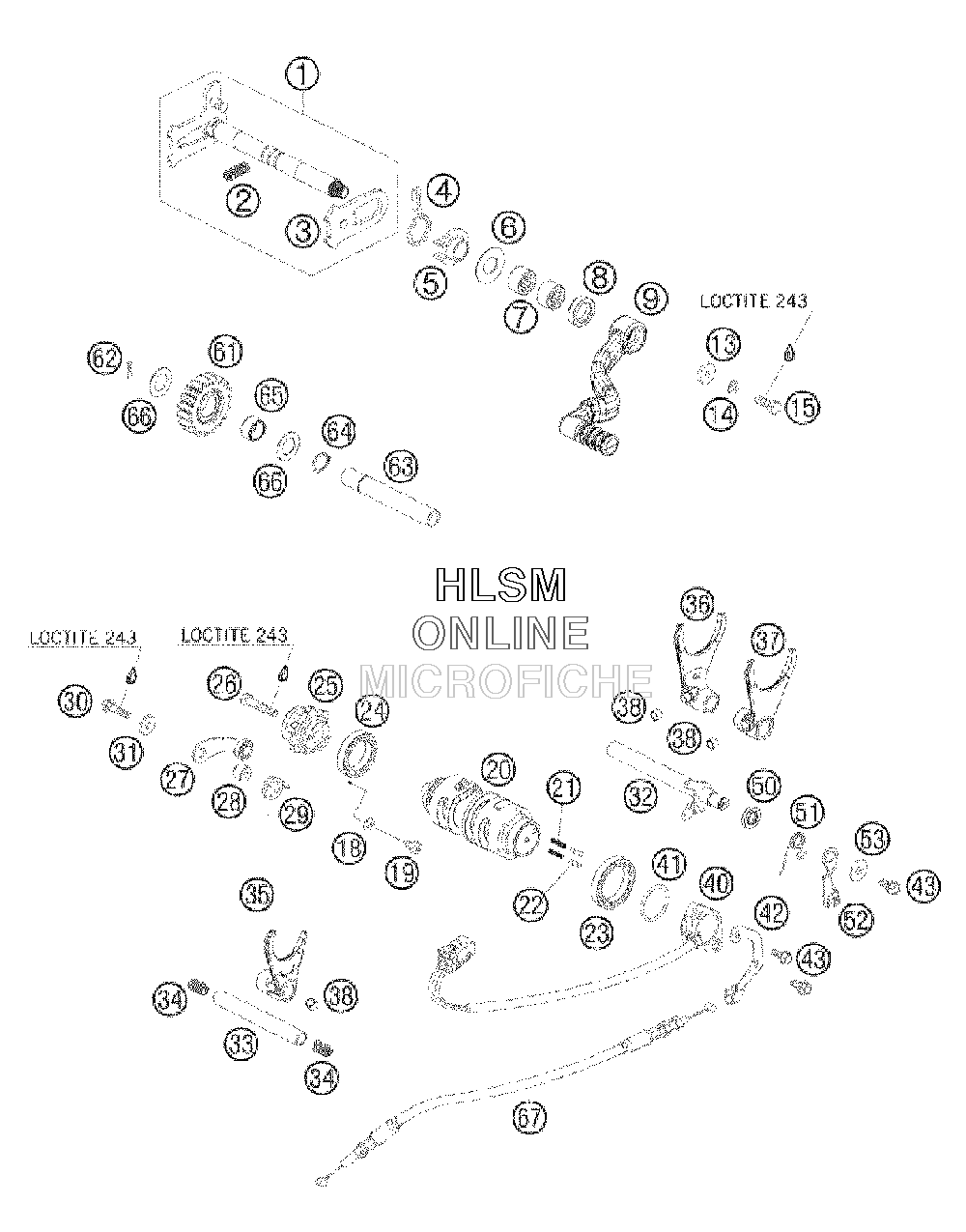

SHIFTING MECHANISM для Ktm 525 XC - 2009 года выпуска
-
№АртикулНазвание
-
183034005044 SHIFTING SHAFT CPL.SHIFTING SHAFT CPL.
-
256534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
354634008044 SLIDING PLATE CPL.SLIDING PLATE CPL.
-
454634014100 RETURN SPRING 2,2MMRETURN SPRING 2,2MM
-
554634020000 SPRING GUIDESPRING GUIDE
-
654634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
754632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
80760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
983034031100 SHIFT LEVER CPL. ATVSHIFT LEVER CPL. ATV
-
1350232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
1450233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
1559009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
180125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
190985050083 FLAT HEAD SCREW DIN7985-M 5X 8FLAT HEAD SCREW DIN7985-M 5X 8
-
2083034012000 SHIFTING DRUM ATVSHIFTING DRUM ATV
-
2183034014000 CONTACT SPRING 3,6X14MMCONTACT SPRING 3,6X14MM
-
2283034037000 CONTACT BOLTCONTACT BOLT
-
230625068060 BALL BEARING 6806 C3BALL BEARING 6806 C3
-
240625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
2559034015144 SHIP DRUM LOCATING CPL.SHIP DRUM LOCATING CPL.
-
260012060303 AH SCREW DIN6912 M6X30 8.8AH SCREW DIN6912 M6X30 8.8
-
2777034024044 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
2854634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
2959034023000 SPRING 2,3MMSPRING 2,3MM
-
300025050206 HH COLLAR SCREW M5X20HH COLLAR SCREW M5X20
-
310349000050 WASHER DIN7349-5X15X2WASHER DIN7349-5X15X2
-
3283034120100 SHIFTING ROD WITH LOCKSHIFTING ROD WITH LOCK
-
3377034019000 SHIFTING MAIN L=93MMSHIFTING MAIN L=93MM
-
3458038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
3583034001000 SHIFT FORKSHIFT FORK
-
3683034003000 SHIFT FORKSHIFT FORK
-
3783034002000 SHIFT FORKSHIFT FORK
-
3850334018100 SHIFTING ROLLER 6X8X5,2SHIFTING ROLLER 6X8X5,2
-
4083011023000 GEAR-POSITION SENSOR ATVGEAR-POSITION SENSOR ATV
-
410770251262 O-RING 25,07X2,62 FPM 75SHO-RING 25,07X2,62 FPM 75SH
-
4283034045000 ABUTMENTABUTMENT
-
430025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
500760101844 SHAFT SEAL RING 10X18X4 BSL V.SHAFT SEAL RING 10X18X4 BSL V.
-
5159036059000 DECOMPRESSION LEVER SPRINGDECOMPRESSION LEVER SPRING
-
5283134043000 LEVER LOCK-SHAFTLEVER LOCK-SHAFT
-
530021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
6183033008102 REVERSE GEAR WHEELREVERSE GEAR WHEEL
-
620472030160 GROOVED PIN DIN1472 3X16GROOVED PIN DIN1472 3X16
-
6383033008101 REVERSE GEAR AXLEREVERSE GEAR AXLE
-
640471140100 LOCK WASHER DIN0471-14X1LOCK WASHER DIN0471-14X1
-
650405141810 NEEDLE BEAR. 14X18X10NEEDLE BEAR. 14X18X10
-
6683033027000 STOP DISK 14,1X24X1STOP DISK 14,1X24X1
-
6783002097000 BUS CABLE F. REVERSE GEARBUS CABLE F. REVERSE GEAR
