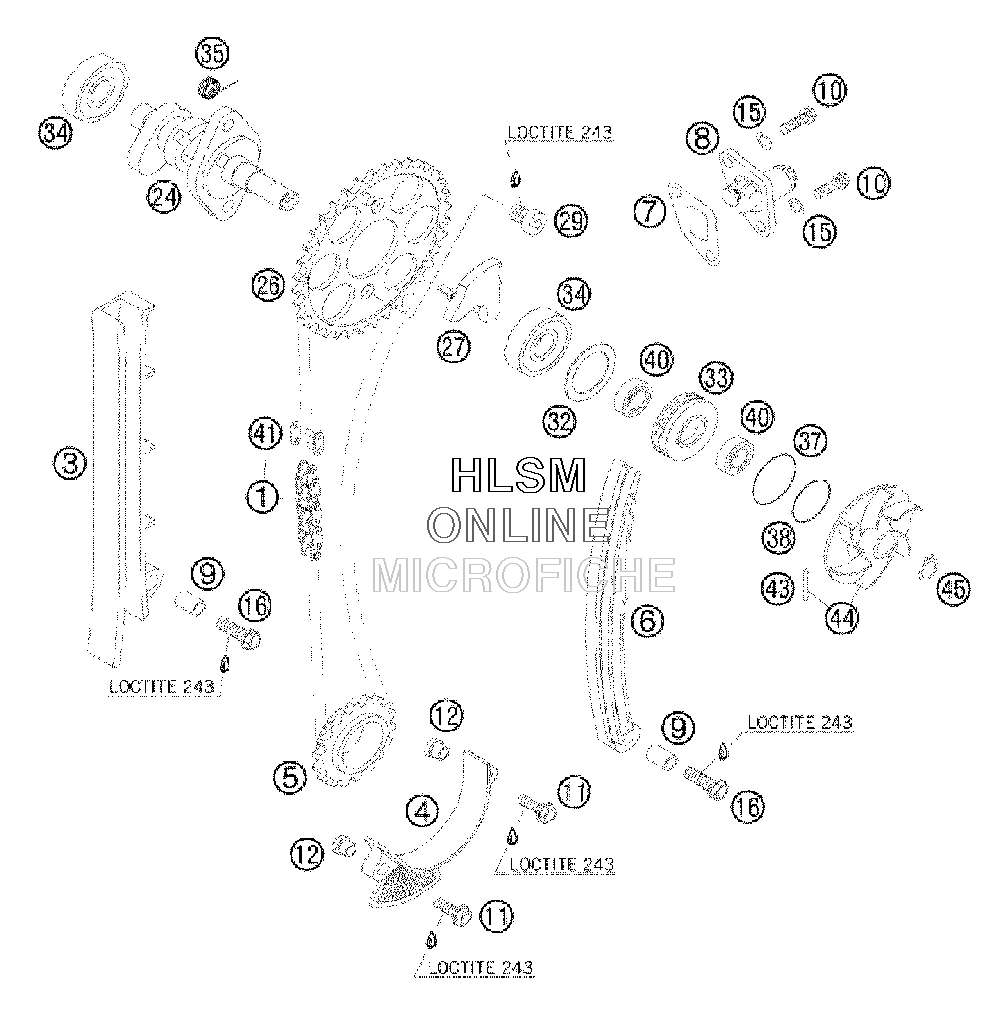

TIMING DRIVE для Ktm 525 XC - 2009 года выпуска
-
№АртикулНазвание
-
159036013000 TIMING CHAIN 96 ROLLSTIMING CHAIN 96 ROLLS
-
359036001000 TIMING CHAIN GUIDE RACINGTIMING CHAIN GUIDE RACING
-
459036018000 SECURING GUIDE RACINGSECURING GUIDE RACING
-
559036014000 TIMING GEAR 18-TTIMING GEAR 18-T
-
659036002000 TIMING CHAIN TENSIONERTIMING CHAIN TENSIONER
-
759036003050 GASKET TIMING CHAIN TENSIONERGASKET TIMING CHAIN TENSIONER
-
859036003000 TIMINGCHAIN TENSIONER CPL.RAC.TIMINGCHAIN TENSIONER CPL.RAC.
-
959036001050 SPACER BUSHING 6,1X8,2X13,1SPACER BUSHING 6,1X8,2X13,1
-
100025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
110025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
1259036018050 SUPPORTING SLEEVE 5,2X7X10X7,7SUPPORTING SLEEVE 5,2X7X10X7,7
-
150603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
160025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
2459036010000 CAMSHAFT 590/5521CAMSHAFT 590/5521
-
2659036011100 CAMSHAFT GEARCAMSHAFT GEAR
-
2759036016000 AUTO DECOMPRESSION SHAFTAUTO DECOMPRESSION SHAFT
-
290984080103 AH SCREW DIN7984-M 8X10AH SCREW DIN7984-M 8X10
-
3259036082000 WASHER 26,7X34X1,3WASHER 26,7X34X1,3
-
3359036081100 GASKET SUPPORTGASKET SUPPORT
-
340625062014 BALL BEARING 6201BALL BEARING 6201
-
3559036017000 SPRING FOR AUTODECOMPRESSIONSPRING FOR AUTODECOMPRESSION
-
370770291016 O-RING 29,10X1,60 NBR 70O-RING 29,10X1,60 NBR 70
-
380770020220 O-RING 25,12X1,78 NBR70O-RING 25,12X1,78 NBR70
-
400760101844 SHAFT SEAL RING 10X18X4 BSL V.SHAFT SEAL RING 10X18X4 BSL V.
-
4159036013050 RIVET LINK FOR TIMING CHAINRIVET LINK FOR TIMING CHAIN
-
430402031780 NEEDLE ROL.DIN5402 NRB 3X17,8NEEDLE ROL.DIN5402 NRB 3X17,8
-
4459035055144 WATER PUMP WHEEL CPL. RAC.WATER PUMP WHEEL CPL. RAC.
-
450471100010 CIRCLIP DIN0471-10X1CIRCLIP DIN0471-10X1
