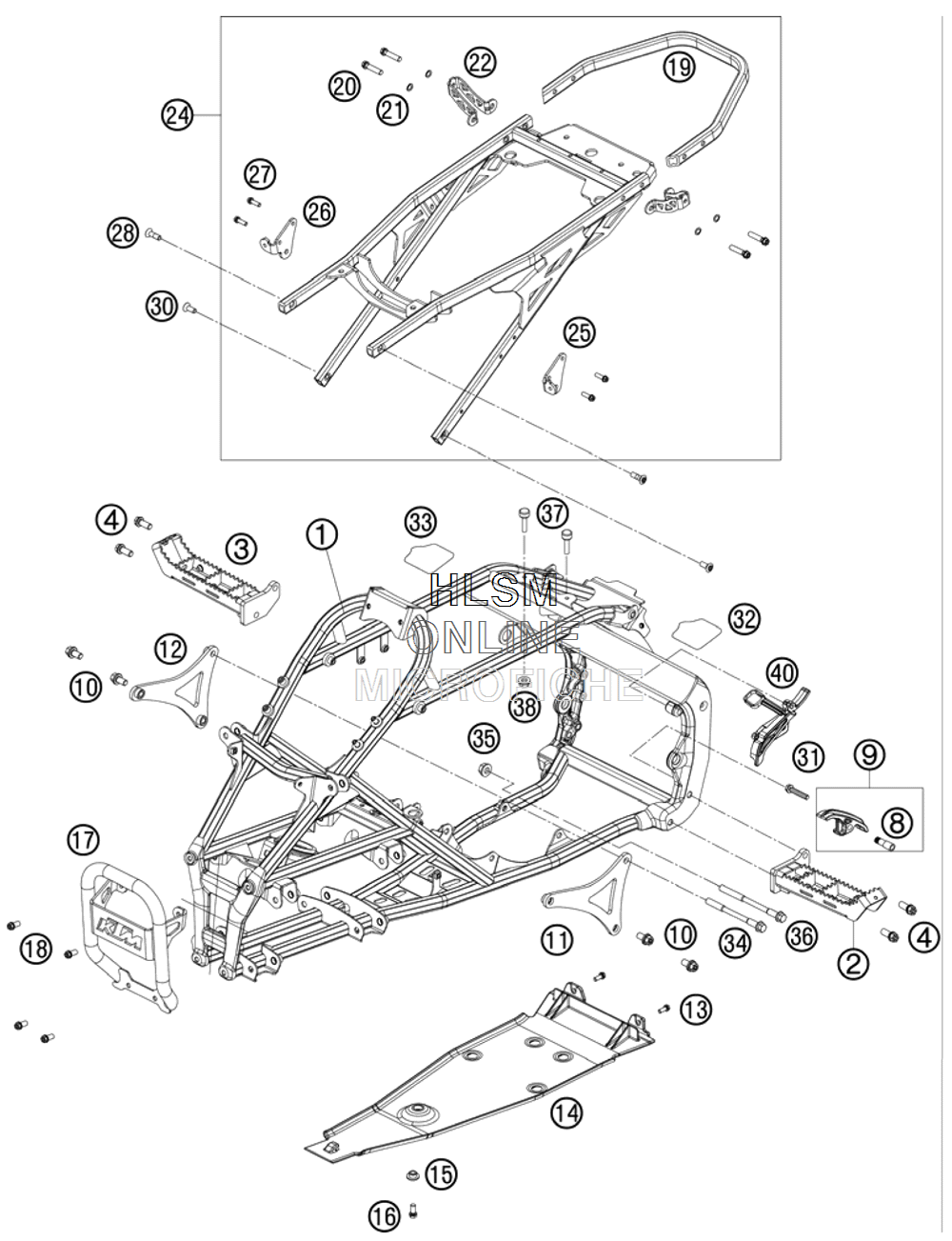

FRAME для Ktm 450 SX ATV - 2010 года выпуска
-
№АртикулНазвание
-
1*8350300110033 FRAME ATV-SX "NB10"FRAME ATV-SX "NB10"
-
283003040300 FOOTREST L/SFOOTREST L/S
-
383003041300 FOOTREST R/SFOOTREST R/S
-
40035100249 AH-COLLAR SCREW M10X24 ISA45AH-COLLAR SCREW M10X24 ISA45
-
877303053051 BUSH 8,2X10X22BUSH 8,2X10X22
-
983003053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
100023100183 COLLAR SCREW M10X18COLLAR SCREW M10X18
-
1183003013044 ENGINE SUPPORT L/S CPL.ENGINE SUPPORT L/S CPL.
-
1283003113044 ENGINE SUPPORT R/S CPL.ENGINE SUPPORT R/S CPL.
-
130025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
14*83003090200 FRAME PROTECTION BELOWFRAME PROTECTION BELOW
-
1560007061000 BEARING BUSHING INSIDEBEARING BUSHING INSIDE
-
160025080206 HH COLLAR SCREW M8X20 TX40HH COLLAR SCREW M8X20 TX40
-
178300300300030 FRONT BUMPER BLACKFRONT BUMPER BLACK
-
180025080166 HH COLLAR SCREW M8X16 TX40HH COLLAR SCREW M8X16 TX40
-
1983003002010 SUB FRAME-BRACKETSUB FRAME-BRACKET
-
200025080356S HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
2136003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
2283003002030 FENDER MOUNTINGFENDER MOUNTING
-
2483003002044 SUB FRAME CPL.SUB FRAME CPL.
-
2583003002040 HEELGUARD FIXING L/SHEELGUARD FIXING L/S
-
2683003002041 HEELGUARD FIXING R/SHEELGUARD FIXING R/S
-
270025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
280019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
300019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
310025080456 HH COLLAR SCREW M8X45 TX40HH COLLAR SCREW M8X45 TX40
-
3283003099000 PROTECT.FILM F. FRAME L/SPROTECT.FILM F. FRAME L/S
-
3383003099100 PROTECT.FILM F. FRAME R/SPROTECT.FILM F. FRAME R/S
-
3459003013000 ENGINEBRAC.SCREW M10X123 WS=13ENGINEBRAC.SCREW M10X123 WS=13
-
3554310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
3683503014000 ENGINE BRAC.SCREW M10X146 10.9ENGINE BRAC.SCREW M10X146 10.9
-
3783503034000 PARABOLIC BUMPER TANKBRACKETPARABOLIC BUMPER TANKBRACKET
-
380926060000 STOP NUT M6 DIN6926 A2-70STOP NUT M6 DIN6926 A2-70
-
4083503096000 CHAIN GUARD ATV SXCHAIN GUARD ATV SX
