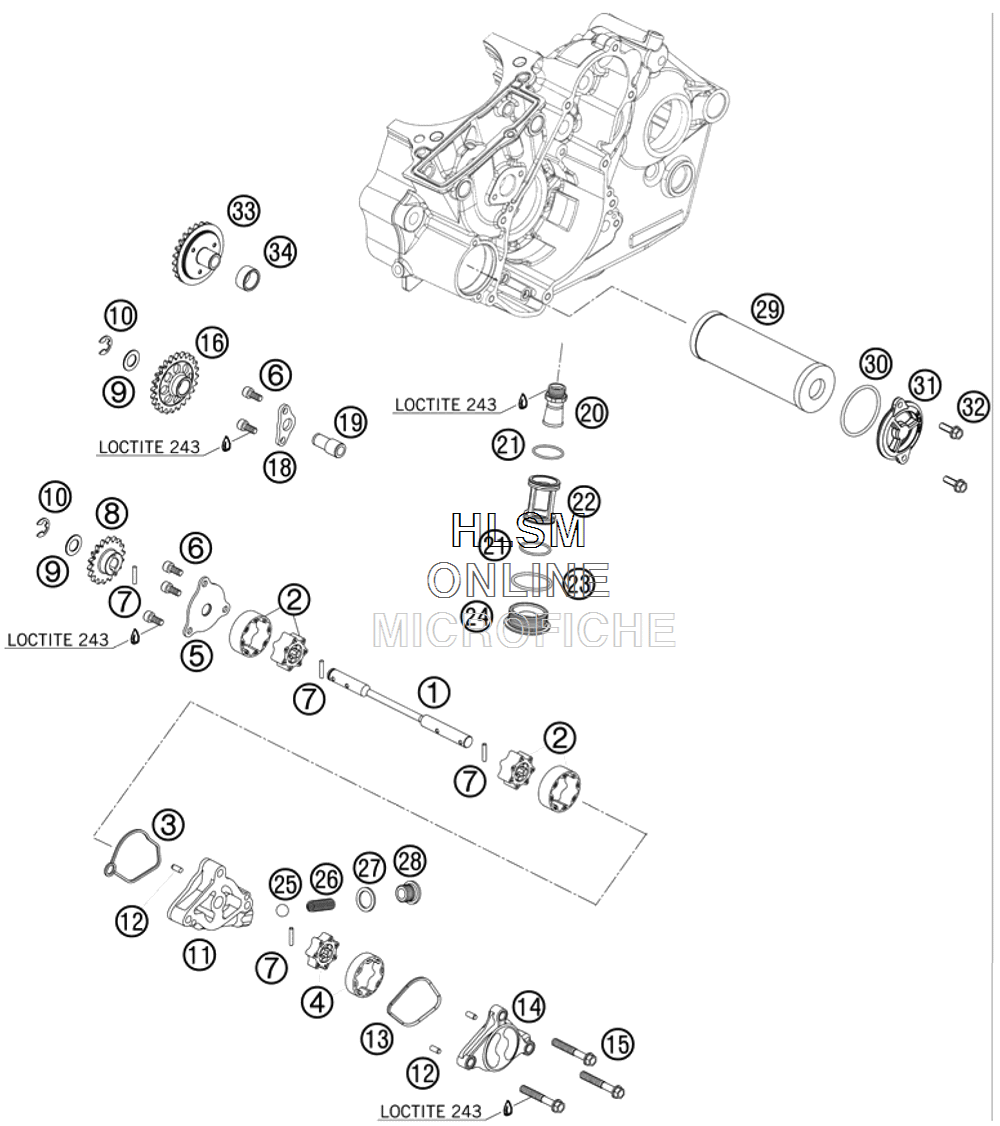

LUBRICATING SYSTEM для Ktm 450 SX ATV - 2010 года выпуска
-
№АртикулНазвание
-
183538002000 OIL PUMP SHAFTOIL PUMP SHAFT
-
277338107100 SUCTION PUMP CPL.SUCTION PUMP CPL.
-
377338012000 GASKET PRESSURE PUMP CASEGASKET PRESSURE PUMP CASE
-
477338207100 PRESSURE PUMP PEEK D=9MMPRESSURE PUMP PEEK D=9MM
-
577338004100 PUMP COVERPUMP COVER
-
60912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
70402031580 NEEDLE ROLLER DIN5402 3X15,8NEEDLE ROLLER DIN5402 3X15,8
-
877338001100 OIL PUMP GEAR 18-TOIL PUMP GEAR 18-T
-
977338023000 WASHER 10,2X18X1WASHER 10,2X18X1
-
100799080000 TAB WASHER DIN6799 RS8TAB WASHER DIN6799 RS8
-
1177338010100 PRESSURE PUMP CASEPRESSURE PUMP CASE
-
120402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
1377338112000 GASKET PRESSURE PUMP COVERGASKET PRESSURE PUMP COVER
-
1477338013100 PRESSURE PUMP COVERPRESSURE PUMP COVER
-
150025060406 HH COLLAR SCREW M6X40 TX30HH COLLAR SCREW M6X40 TX30
-
1677338000150 OILPUMP IDLER GEAR 24-T.OILPUMP IDLER GEAR 24-T.
-
1877338061050 LOCK WASHER BEARING BOLTLOCK WASHER BEARING BOLT
-
1977338061000 BEARING BOLTBEARING BOLT
-
2077338022000 OIL INTAKE SNORKELOIL INTAKE SNORKEL
-
210770023015 O-RING 23,00X1,50 NBR 70O-RING 23,00X1,50 NBR 70
-
2277338016100 OIL SCREEN CPL.OIL SCREEN CPL.
-
230770300020 O-RING 30X2,0 FPMO-RING 30X2,0 FPM
-
2477338019100 PLUG SCREWPLUG SCREW
-
250401100000 BALL D=10 DIN 5401BALL D=10 DIN 5401
-
2677338026100 COIL SPRINGCOIL SPRING
-
270603142016 CU-SEAL RING 14X20X1,5 LC8CU-SEAL RING 14X20X1,5 LC8
-
2860038033050 PLUG SCREW M14X1,5 ALU AHPLUG SCREW M14X1,5 ALU AH
-
2983538005000 OIL FILTEROIL FILTER
-
300770400025 O-RING 40,00X2,50 NBR 70O-RING 40,00X2,50 NBR 70
-
3175038041200 OILFILTER CAPOILFILTER CAP
-
320025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
3383530080100 CENTRIFUGALABSORBER CPL.CENTRIFUGALABSORBER CPL.
-
340618142014 NEEDLE SLEEVE HK 1414L RSNEEDLE SLEEVE HK 1414L RS
