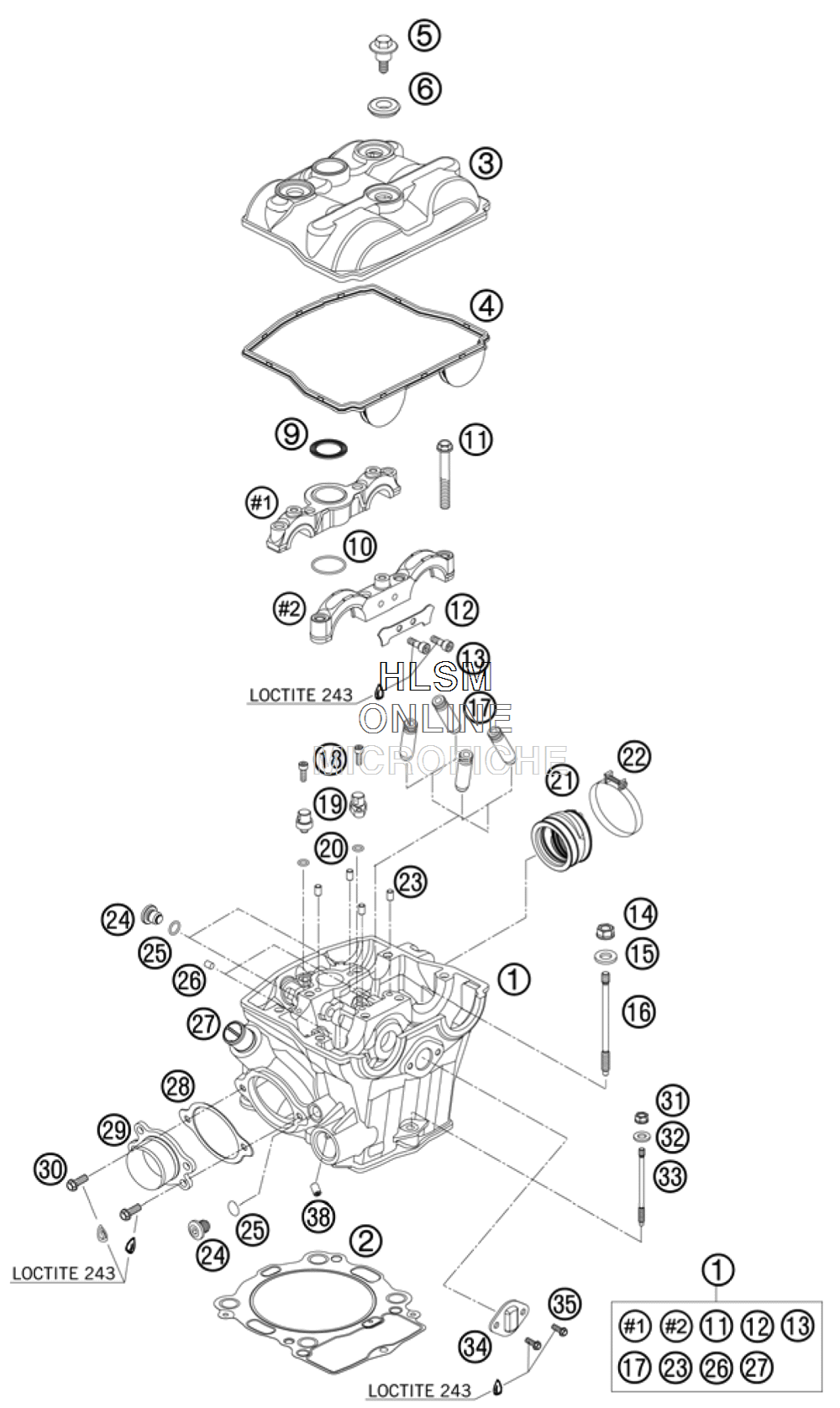

CYLINDER HEAD для Ktm 505 SX ATV - 2010 года выпуска
-
№АртикулНазвание
-
1*77336020344 CYLINDER HEAD CPL.CYLINDER HEAD CPL.
-
277630036000 CYL. HEAD GASKET S=0,5CYL. HEAD GASKET S=0,5
-
377336052100 VALVE COVERVALVE COVER
-
477336053000 VALVE COVER GASKETVALVE COVER GASKET
-
577336054150 VALVE COVER SCREWVALVE COVER SCREW
-
677036054050 RUBBER GASKET FOR SCREWRUBBER GASKET FOR SCREW
-
977336053050 GASKET SPARK-PLUG SHAFTGASKET SPARK-PLUG SHAFT
-
100770250015 O-RING 25,00X1,50 NBR 70O-RING 25,00X1,50 NBR 70
-
1177330067138 SCRW M7-1,0X38SCRW M7-1,0X38
-
1277336020040 BUSHING HOLDERBUSHING HOLDER
-
1477336088210 COLLAR NUT M10X1,25 SCOLLAR NUT M10X1,25 S
-
1577336089010 WASHER 19X10,5X2,5WASHER 19X10,5X2,5
-
1677330044100 STUD SCREW M10STUD SCREW M10
-
17*61236026000 VALVE GUIDE EXHAUSTVALVE GUIDE EXHAUST
-
180912040123 AH SCREW DIN0912-M 4X12AH SCREW DIN0912-M 4X12
-
1977338046000 OIL JETOIL JET
-
200770060015 O-RING 1,5X6O-RING 1,5X6
-
2183536044000 INTAKE BOOT 835 SXINTAKE BOOT 835 SX
-
2260036047100 HOSE CLAMP GEMI 62 MMHOSE CLAMP GEMI 62 MM
-
230402050080 CYLINDER ROLLER ZRO 5X8CYLINDER ROLLER ZRO 5X8
-
2477336056095 SCREW PLUGSCREW PLUG
-
250770090015 O-RING 9X1,5O-RING 9X1,5
-
2659030196000 NBR PLUGNBR PLUG
-
2758030010200 SCREW IN NOZZLE M20X1,5SCREW IN NOZZLE M20X1,5
-
2877336041000 GASKET EXHAUST FLANGEGASKET EXHAUST FLANGE
-
2977336139000 EXHAUST FLANGE CPL. SX-FEXHAUST FLANGE CPL. SX-F
-
300025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
3177336088106 COLLAR NUT M6X1 SW8COLLAR NUT M6X1 SW8
-
320125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
3377330043000 STUD SCREW M6STUD SCREW M6
-
3477336075050 RETAINING PLATERETAINING PLATE
-
350025050106 COLLAR SCREW M5X12 ISA30COLLAR SCREW M5X12 ISA30
-
3877338029012 THROTTLE M6X10X0,6THROTTLE M6X10X0,6
