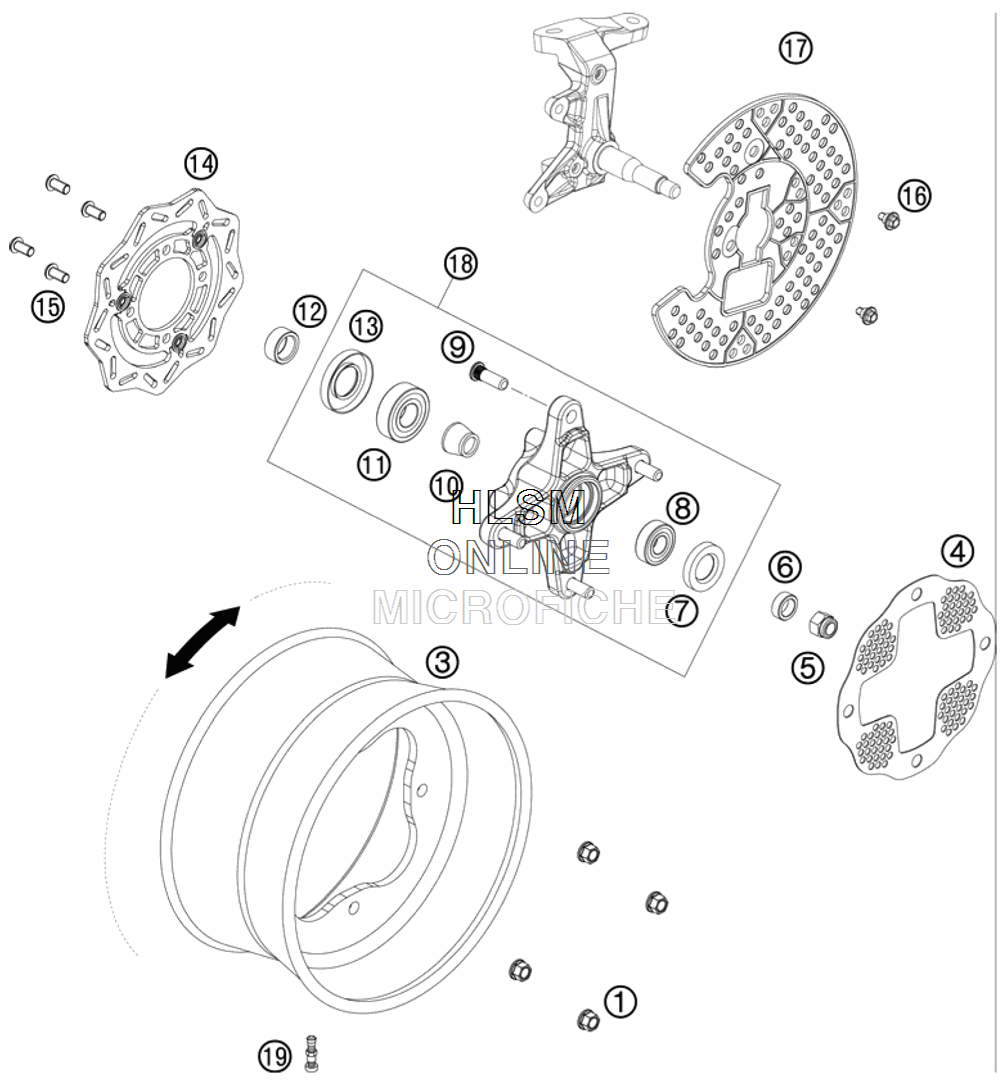

FRONT WHEEL для Ktm 505 SX ATV - 2010 года выпуска
-
№АртикулНазвание
-
158414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
383009070000 RIM FRONT 10X5-5RIM FRONT 10X5-5
-
483009066000 OUTER BRAKE DISK PROTECTOROUTER BRAKE DISK PROTECTOR
-
50985120003 SELF LOCKING NUT DIN0985-M12SELF LOCKING NUT DIN0985-M12
-
683009013000 SPACER BUSHINGSPACER BUSHING
-
70760224070 SHAFT SEAL RING BSL 22X40X7NBRSHAFT SEAL RING BSL 22X40X7NBR
-
80625062028 BALL BEARING 6202-2RSH/C3BALL BEARING 6202-2RSH/C3
-
983009016000 WHEELBOLTWHEELBOLT
-
1083009014000 BEARING SPACER BUSHINGBEARING SPACER BUSHING
-
110625062047 BALL BEARING 6204-2RSH/C3BALL BEARING 6204-2RSH/C3
-
1283009015000 SPACER BUSHINGSPACER BUSHING
-
130760285270 SHAFT SEAL RING BSL 28X52X7NBRSHAFT SEAL RING BSL 28X52X7NBR
-
1483009060000 BRAKE DISKBRAKE DISK
-
150738080166S FLAT HEAD SCREW ISO7380 M8X16FLAT HEAD SCREW ISO7380 M8X16
-
1659001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
1783009065000 BRAKE DISK PROTECTORBRAKE DISK PROTECTOR
-
1883009010044 FRONT WHEEL HUB CPL. SPFRONT WHEEL HUB CPL. SP
-
1983009076000 VALVEVALVE
