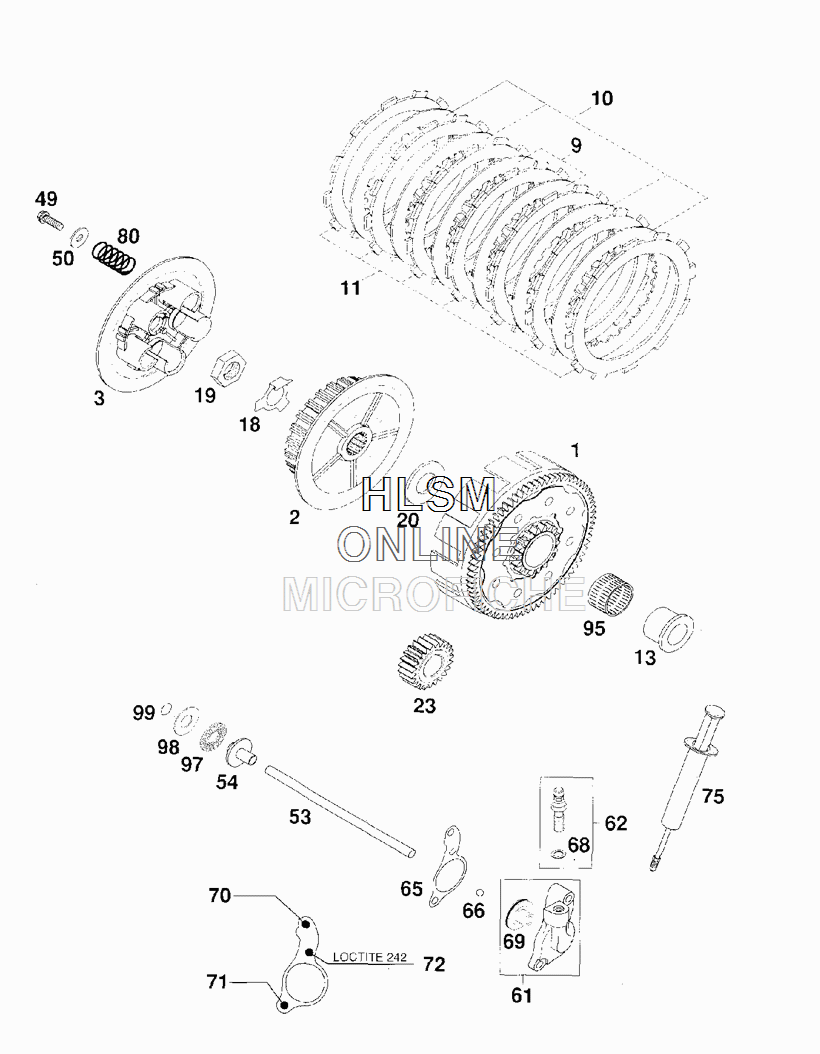

CLUTCH для Ktm 125 EXC - 2000 года выпуска
-
№АртикулНазвание
-
150332000073 CLUTCH 73, Z/18, Z (WITHOUT PRIMARY PINION)CLUTCH 73, Z/18, Z (WITHOUT PRIMARY PINION)
-
250332002000 INNER CLUTCH HUBINNER CLUTCH HUB
-
350332003000 PRESSURE PLATEPRESSURE PLATE
-
950332010100 INTERMEDI. DISC STEEL 1, 5MMINTERMEDI. DISC STEEL 1, 5MM
-
1050332010000 INTERMEDIATE DISC ALU 1, 5MMINTERMEDIATE DISC ALU 1, 5MM
-
1150332011000 ORGANIC DISK 3MMORGANIC DISK 3MM
-
1350332013000 INNER RING 20X26X34X25, 9INNER RING 20X26X34X25, 9
-
1850332018000 SHEET METAL LOCK 1, 5MMSHEET METAL LOCK 1, 5MM
-
190936181505 HEXAGON NUT DIN0936, M18X1, 5 R.HEXAGON NUT DIN0936, M18X1, 5 R.
-
2050332020000 STOP DISK 20X39, 6X3STOP DISK 20X39, 6X3
-
2350332023023 PRIMARY PINION 23, TPRIMARY PINION 23, T
-
490015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
5050232050000 WASHER 6, 2 X 18 X 2WASHER 6, 2 X 18 X 2
-
5350332017200 PUSH ROD L=179MMPUSH ROD L=179MM
-
5450332054051 PRESSURE PIECEPRESSURE PIECE
-
6150332061044 CYLINDER CPL.CYLINDER CPL.
-
6250332062000 HOLLOW SCREW CPL. M10X1HOLLOW SCREW CPL. M10X1
-
6550332065051 CLUTCH RELEASE GASKET 0, 3MMCLUTCH RELEASE GASKET 0, 3MM
-
6550332065052 CLUTCH RELEASE GASKET 0, 5MMCLUTCH RELEASE GASKET 0, 5MM
-
6550332065053 CLUTCH RELEASE GASKET 0, 75MMCLUTCH RELEASE GASKET 0, 75MM
-
660401070003 BALL DIN5401, 7BALL DIN5401, 7
-
6842013226000 CU, SEAL RING DIN7603, 10X16X1CU, SEAL RING DIN7603, 10X16X1
-
6950332066000 PISTON W O-RINGPISTON W O-RING
-
700015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
710015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
720015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
7550329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
8050332005000 CLUTCH SPRING 2, 3X39, 5CLUTCH SPRING 2, 3X39, 5
-
9556532095000 NEEDLE BEARING K26X30X22ZW KSENEEDLE BEARING K26X30X22ZW KSE
-
9754637097200 AXIAL NEEDLE BEARING 1226 AXKAXIAL NEEDLE BEARING 1226 AXK
-
9854637098200 AXIAL WASHER AS1226 12X26X1AXIAL WASHER AS1226 12X26X1
-
9854637098300 AXIAL WASHER 12, 5X25, 8X1, 5AXIAL WASHER 12, 5X25, 8X1, 5
-
990993012000 CIRCLIP DIN7993A, RW12CIRCLIP DIN7993A, RW12
