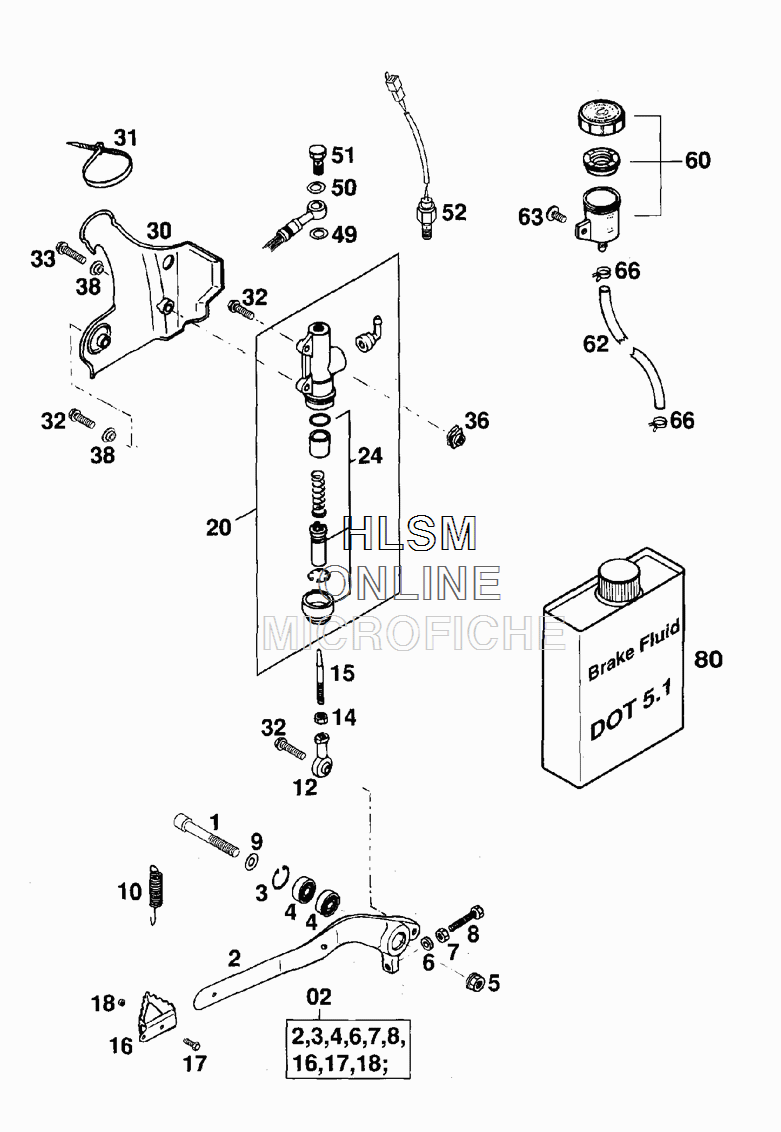

REAR BRAKE CONTROL для Ktm 125 EXC - 2000 года выпуска
-
№АртикулНазвание
-
10912080603 AH SCREW DIN0912, M 8X60AH SCREW DIN0912, M 8X60
-
0254603060144 FOOT BRAKE LEVER CPL. 250'91FOOT BRAKE LEVER CPL. 250'91
-
30472022100 CIRCLIP DIN0472, 22X1CIRCLIP DIN0472, 22X1
-
40625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
554310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
612011016000 WASHER 6 X 12 X 3WASHER 6 X 12 X 3
-
70934060003 HEXAGON NUT DIN0934, M 6HEXAGON NUT DIN0934, M 6
-
80933060353 HH SCREW DIN0933, M 6X35HH SCREW DIN0933, M 6X35
-
90125080003 WASHER DIN0125, A 8, 4WASHER DIN0125, A 8, 4
-
1054603062000 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
1254603069000 SWIVEL HEAD M6 FOOT BRAKE LEVERSWIVEL HEAD M6 FOOT BRAKE LEVER
-
140934060003 HEXAGON NUT DIN0934, M 6HEXAGON NUT DIN0934, M 6
-
1554603068000 PRESSURE ROD ALUPRESSURE ROD ALU
-
1654603060150 STEP PLATE FOR BRAKE LEVERSTEP PLATE FOR BRAKE LEVER
-
170933050163 HH SCREW DIN0933, M 5X16HH SCREW DIN0933, M 5X16
-
180985050003 SELF LOCKING NUT DIN0985, M 5SELF LOCKING NUT DIN0985, M 5
-
2050313060000 FOOTBRAKE CYLINDER D=12MMFOOTBRAKE CYLINDER D=12MM
-
2450313061000 REP. KIT PISTON 12MMREP. KIT PISTON 12MM
-
3054613038100 BRAKECYL.PROTECT.BRAKECYL.PROTECT.
-
3144011076200 CABLE TIE 200MMCABLE TIE 200MM
-
320015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
330015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
3650235033300 SNAP, NUT HOLDER M6 KP142SNAP, NUT HOLDER M6 KP142
-
3850308053000 BUSH FOR SPOILER 6X11X16X7, 5BUSH FOR SPOILER 6X11X16X7, 5
-
4942013026000 CU, SEAL RING DIN7603, 10X16X1, 5CU, SEAL RING DIN7603, 10X16X1, 5
-
5042013226000 CU, SEAL RING DIN7603, 10X16X1CU, SEAL RING DIN7603, 10X16X1
-
5150213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
5250311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
6054513030044 BRAKE FLUID RESERVOIRBRAKE FLUID RESERVOIR
-
6258007016101 HOSE FOR RESERVOIR 6X1, 5HOSE FOR RESERVOIR 6X1, 5
-
630014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
6658007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
