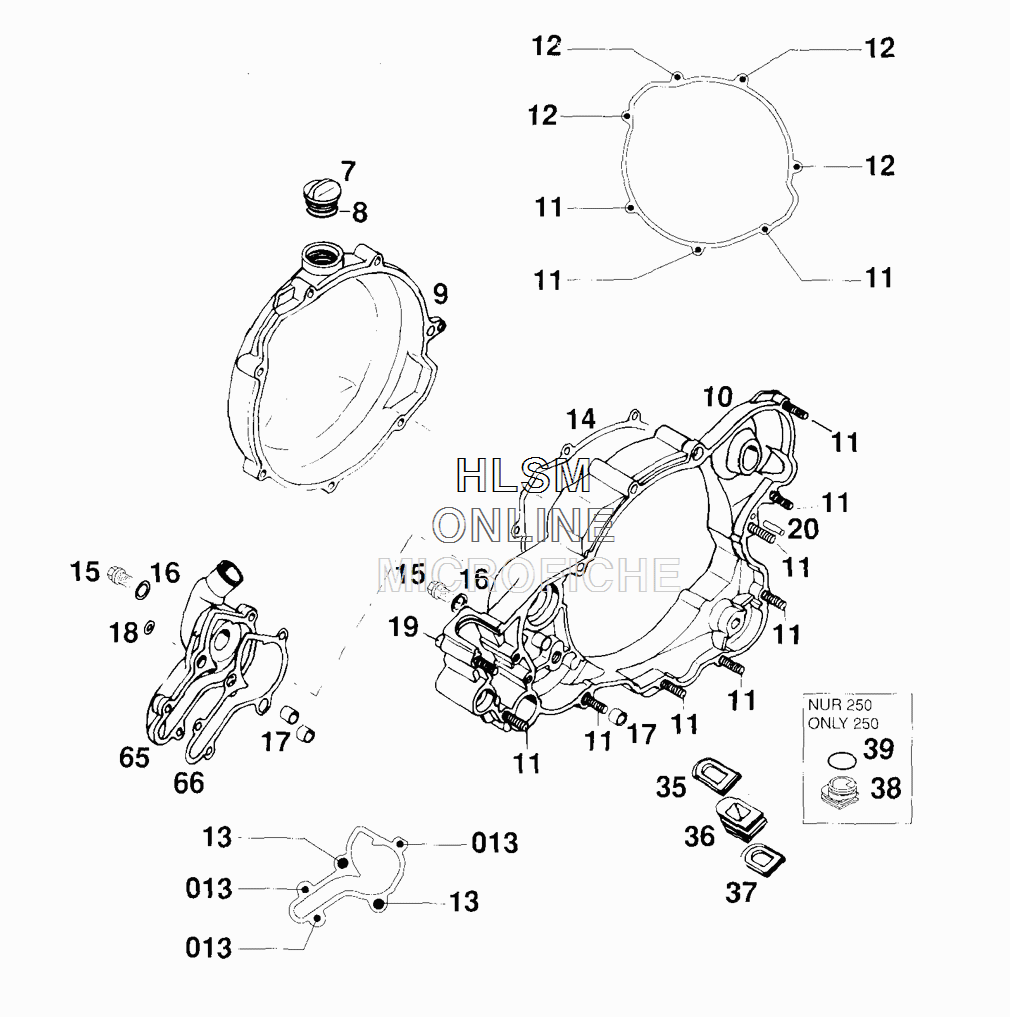

CLUTCH COVER для Ktm 250 EXC - 2000 года выпуска
-
№АртикулНазвание
-
758030020000 PLUG M24 X 3PLUG M24 X 3
-
80770160030 O-RING 16,00X3,00 NBR 70O-RING 16,00X3,00 NBR 70
-
95463010100090 OUTER CLUTCH COVEROUTER CLUTCH COVER
-
1054630001300 CLUTCH COVERCLUTCH COVER
-
110015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
120015060703 HH COLLAR SCREW M 6X70 WS=8HH COLLAR SCREW M 6X70 WS=8
-
130015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
0130015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
1454630025050 OUTER CLUTCH COVER GASKETOUTER CLUTCH COVER GASKET
-
150910100003 PLUG DIN0910-M10X1PLUG DIN0910-M10X1
-
1642013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
1749030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
180603061001 CU-SEAL RING DIN7603- 6X10X1CU-SEAL RING DIN7603- 6X10X1
-
190015060453 HH COLLAR SCREW M 6X45 WS=8HH COLLAR SCREW M 6X45 WS=8
-
200007050160 CYLINDER PIN DIN0007- 5X16CYLINDER PIN DIN0007- 5X16
-
3554637207000 SEALING ELEMENT TOPSEALING ELEMENT TOP
-
3654637007000 GASKETGASKET
-
3754637107000 SEALING ELEMENT BOTTOMSEALING ELEMENT BOTTOM
-
3854737091000 SEALING CARRIERSEALING CARRIER
-
390770021160 O-RING 18,72X2,62O-RING 18,72X2,62
-
6554635001000 WATER PUMP COVERWATER PUMP COVER
-
6654635003200 WATER PUMP COVER GASKETWATER PUMP COVER GASKET
