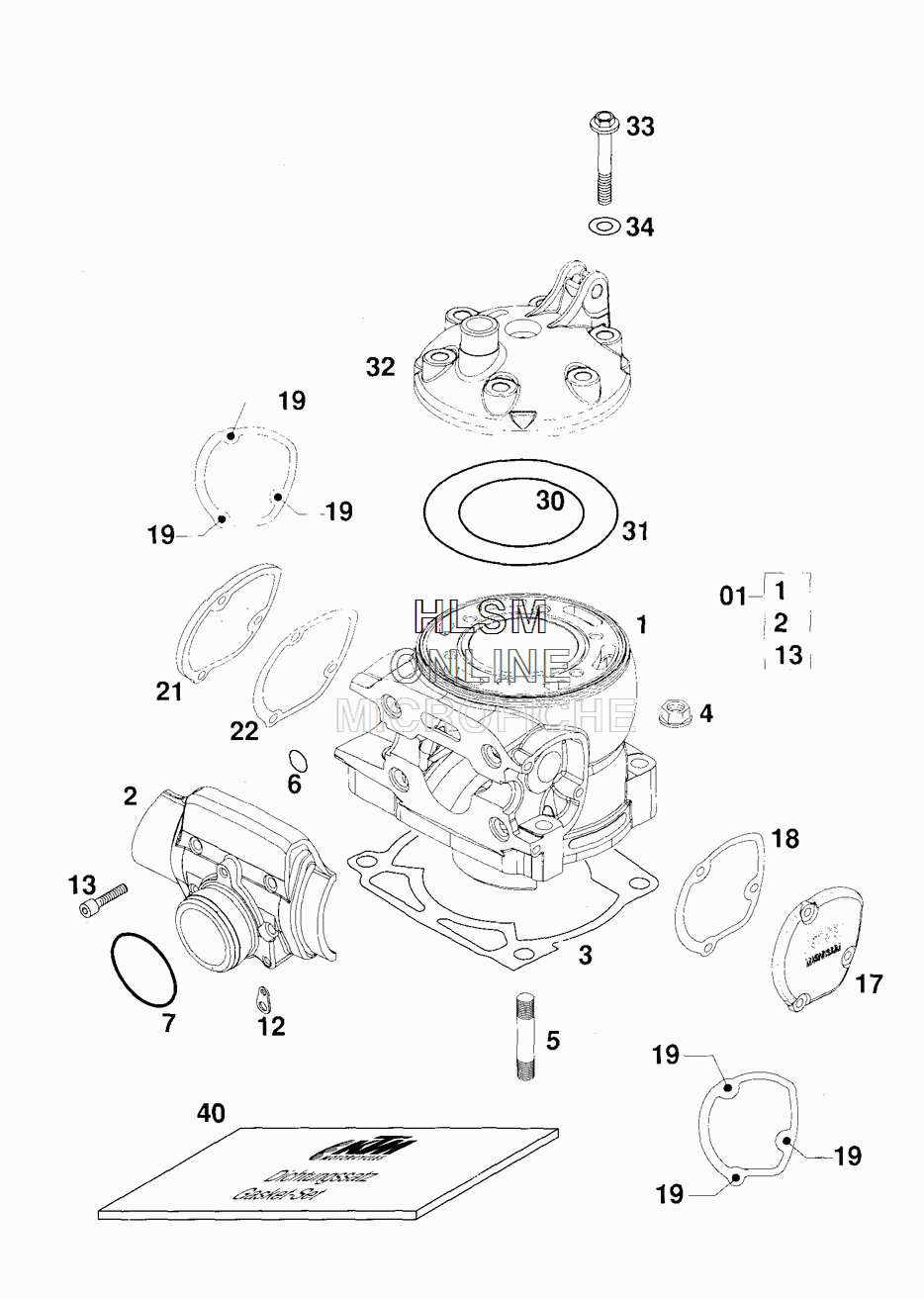

CYLINDER для Ktm 250 EXC - 2000 года выпуска
-
№АртикулНазвание
-
0154630205044 CYLINDER CPL.W FLANGECYLINDER CPL.W FLANGE
-
354630030102 CYLINDER BASE GASKET 0,20MMCYLINDER BASE GASKET 0,20MM
-
354630030104 CYLINDER BASE GASKET 0,40MMCYLINDER BASE GASKET 0,40MM
-
354630030105 CYLINDER BASE GASKET 0,50MMCYLINDER BASE GASKET 0,50MM
-
354630030107 CYLINDER BASE GASKET 0,75MMCYLINDER BASE GASKET 0,75MM
-
454630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
50835100456 STUD DIN0835-M10X45 (250)STUD DIN0835-M10X45 (250)
-
60770116241 O-RING 11,3 X2,4 SILICONO-RING 11,3 X2,4 SILICON
-
70770440030 O-RING 44,00X3,00 VITONO-RING 44,00X3,00 VITON
-
1251005074000 RETAINING PLATERETAINING PLATE
-
130912060303 AH SCREW DIN0912-M 6X30AH SCREW DIN0912-M 6X30
-
1754737005000 CONTROL COVER (LEFT)CONTROL COVER (LEFT)
-
1854737006000 GASKET FOR CONTROL COVER (LEFT)GASKET FOR CONTROL COVER (LEFT)
-
190912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
2154737007000 CONTROL COVER (RIGHT)CONTROL COVER (RIGHT)
-
2254737008000 GASKET FOR CONTROL COVER (RIGHT)GASKET FOR CONTROL COVER (RIGHT)
-
300770740021 O-RING 74,00X2,00 SILICONO-RING 74,00X2,00 SILICON
-
310770114020 O-RING 114,00X2,00 SILICONO-RING 114,00X2,00 SILICON
-
3254630206000 CYLINDERHEAD "2503"CYLINDERHEAD "2503"
-
3356530079000 SPECIAL SCREW M8X42-10.9SPECIAL SCREW M8X42-10.9
-
3456530080000 CU-SEAL RING 8 X 16 X 1CU-SEAL RING 8 X 16 X 1
-
4054630097000 GASKET SET CYLINDER 'GASKET SET CYLINDER '
