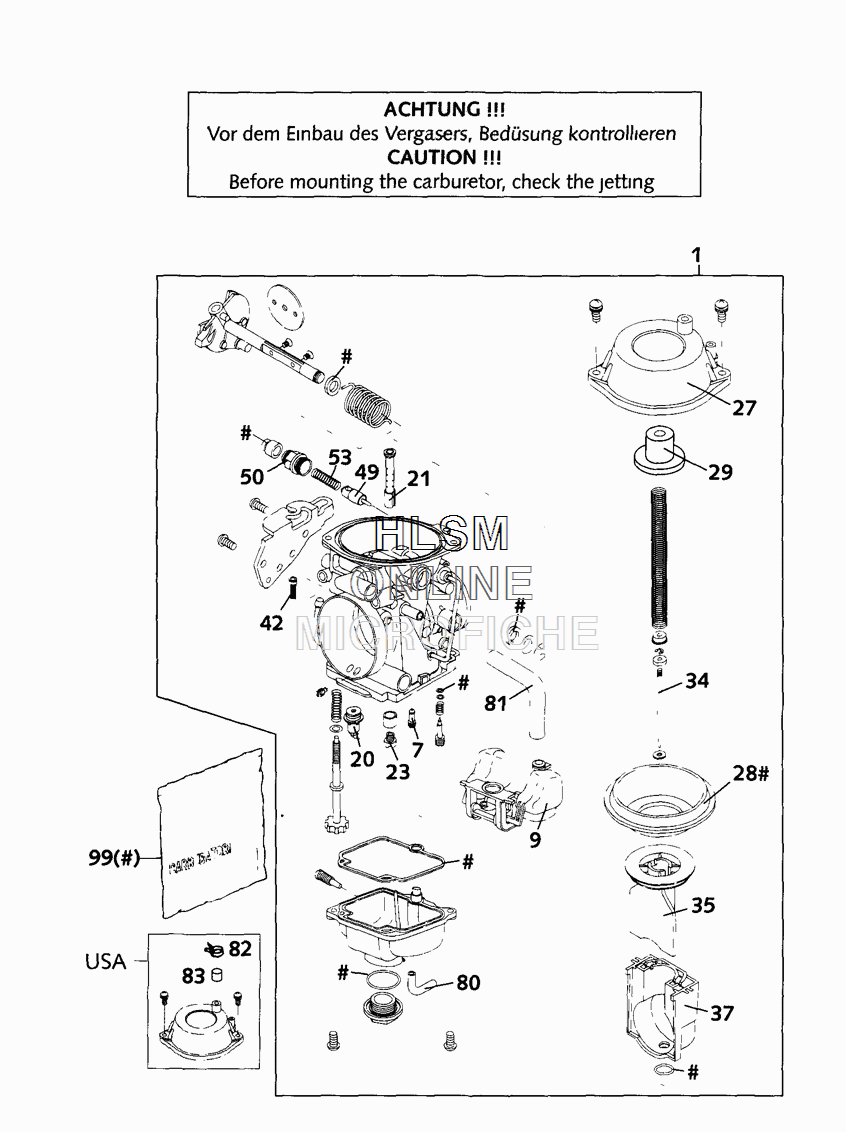

CARBURETOR (BST 40) для Ktm LC4 640 Super Moto - 2000 года выпуска
-
№АртикулНазвание
-
158431001400 CARBURETOR MIKUNI (BST40)CARBURETOR MIKUNI (BST40)
-
758431007045 IDLING JET 45IDLING JET 45
-
958431009000 FLOAT 6,1 GRAMM MIKUNIFLOAT 6,1 GRAMM MIKUNI
-
2058431020000 NEEDLE VALVE 2,8MMNEEDLE VALVE 2,8MM
-
2158431021689 NEEDLE JET 689 X-6NEEDLE JET 689 X-6
-
2358431023140 MAIN JET 140MAIN JET 140
-
2358431023142 MAIN JET 142,5MAIN JET 142,5
-
2358431023145 MAIN JET 145MAIN JET 145
-
2758431027000 DIAPHRAGM COVER MIKUNIDIAPHRAGM COVER MIKUNI
-
2858431028000 DIAPHRAGM FOR THROTTLE VALVEDIAPHRAGM FOR THROTTLE VALVE
-
2958331029017 SLIDE STOP L=17MM MIKUNISLIDE STOP L=17MM MIKUNI
-
3458431034665 JET NEEDLE 6G5JET NEEDLE 6G5
-
3558431035000 THROTTLE VALVE "1"THROTTLE VALVE "1"
-
3758431037000 THROTTLE VALVE GUIDE PLASTICTHROTTLE VALVE GUIDE PLASTIC
-
4258431042000 FUEL SCREEN MIKUNIFUEL SCREEN MIKUNI
-
4958431049000 STARTING PISTON MIKUNISTARTING PISTON MIKUNI
-
5058431050000 SCREW M12 STARTSYSTEMNSCREW M12 STARTSYSTEMN
-
5358431053000 SPRING 22,5MM FOR START.PISTONSPRING 22,5MM FOR START.PISTON
-
8052031137001 PVC-HOSE 3 X 6 MMPVC-HOSE 3 X 6 MM
-
8154435024001 HOSE ID 7,5 PER METERHOSE ID 7,5 PER METER
-
8258031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
8357931001010 PLUG CAP FOR EPC CONNECTIONPLUG CAP FOR EPC CONNECTION
-
9958431099000 GASKET SET MIKUNI BST40-225GASKET SET MIKUNI BST40-225
