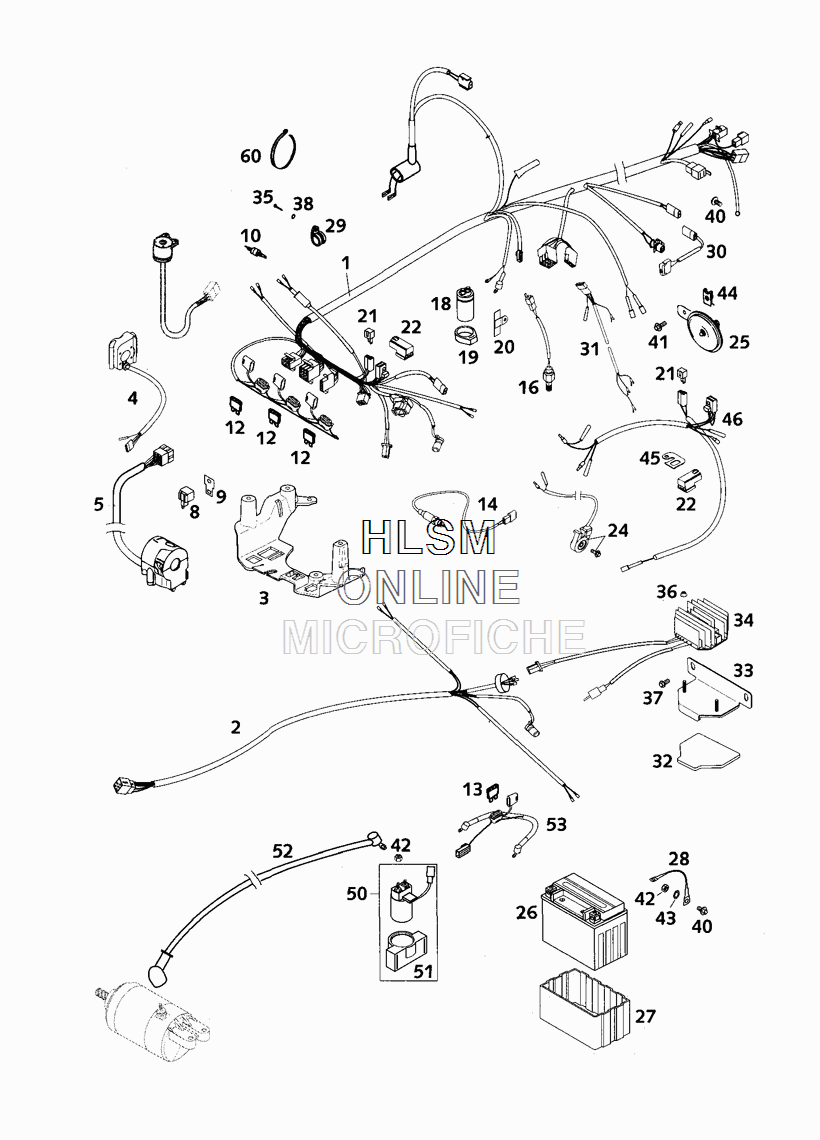

WIRING HARNESS для Ktm LC4 640 Super Moto - 2000 года выпуска
-
№АртикулНазвание
-
158411175100 WIRING HARNESSWIRING HARNESS
-
258411176100 WIRING HARNESS REARWIRING HARNESS REAR
-
358411083100 BRACKET FOR PLUGSBRACKET FOR PLUGS
-
459011074000 START-STOP TIP SWITCH CPL.START-STOP TIP SWITCH CPL.
-
459011074100 START-STOP SWITCH CPL. (AUSTRALIAN)START-STOP SWITCH CPL. (AUSTRALIAN)
-
558411070000 HEAD LIGHT SWITCH CEVHEAD LIGHT SWITCH CEV
-
844611207200 FLASHER UNIT SUMITOMO ADV.FLASHER UNIT SUMITOMO ADV.
-
958211031100 BRACKET FOR FLASHER RELAISEBRACKET FOR FLASHER RELAISE
-
1051011050000 FRONT BRAKE LIGHT SWITCHFRONT BRAKE LIGHT SWITCH
-
1258011109110 FUSE 10 A 2000FUSE 10 A 2000
-
1358011109120 FUSE 20 A 2000FUSE 20 A 2000
-
1458411049000 CLUTCH SWITCHCLUTCH SWITCH
-
1650311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
1849111435100 CONDENSATOR 25V, 10.000 MFCONDENSATOR 25V, 10.000 MF
-
1954511048000 CAPACITOR BRACKETCAPACITOR BRACKET
-
2054611448000 BRACKET FOR CAPACITORBRACKET FOR CAPACITOR
-
2158411096100 DIODE FOR E-START S3H-15DIODE FOR E-START S3H-15
-
2258411057000 STARTER RELAYSTARTER RELAY
-
2458411045000 SIDE STAND SWITCH CPL.SIDE STAND SWITCH CPL.
-
2554511060100 DC HORN 12V NIKKODC HORN 12V NIKKO
-
2658411053000 BATTERY 12V 8AHBATTERY 12V 8AH
-
2758411053050 BATTERY COVER (RUBBER)BATTERY COVER (RUBBER)
-
2858411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
2949007439000 CLAMP RSGU 15/12CLAMP RSGU 15/12
-
3058431065100 MICRO SWITCHMICRO SWITCH
-
3158411085000 WIRING HARN. EPC F. ENGINWIRING HARN. EPC F. ENGIN
-
3258411055150 METAMOLL FOR BATTERY BRACKETMETAMOLL FOR BATTERY BRACKET
-
3358411055100 BATTERY BRACKET LC4-E/DUKEBATTERY BRACKET LC4-E/DUKE
-
3458411034100 VOLT. REGULATOR-RECTIFIER 12VVOLT. REGULATOR-RECTIFIER 12V
-
350981480133 SHEET MET.SCR.DIN7981- 4,8X13SHEET MET.SCR.DIN7981- 4,8X13
-
3656509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
370015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
380797050003 TOOTH LOCK WASH. DIN6797-J 5,3TOOTH LOCK WASH. DIN6797-J 5,3
-
400014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
410014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
420985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
4358411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
4454603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
4558311031000 BRACKETBRACKET
-
4658411046000 SIDE STAND CABLESIDE STAND CABLE
-
5058411058000 STARTER RELAY WITH HOLD.RUBBERSTARTER RELAY WITH HOLD.RUBBER
-
5158411058050 HOLD. RUBBER FOR STARTRELAYHOLD. RUBBER FOR STARTRELAY
-
5258411059100 STARTERCABLE 700 MM (STARTER)STARTERCABLE 700 MM (STARTER)
-
5358411059250 BATTERY CABLE 190MM 20A (BATTERY)BATTERY CABLE 190MM 20A (BATTERY)
-
6044011076305 CABLE TIE 290MMCABLE TIE 290MM
-
6044011076200 CABLE TIE 200MMCABLE TIE 200MM
