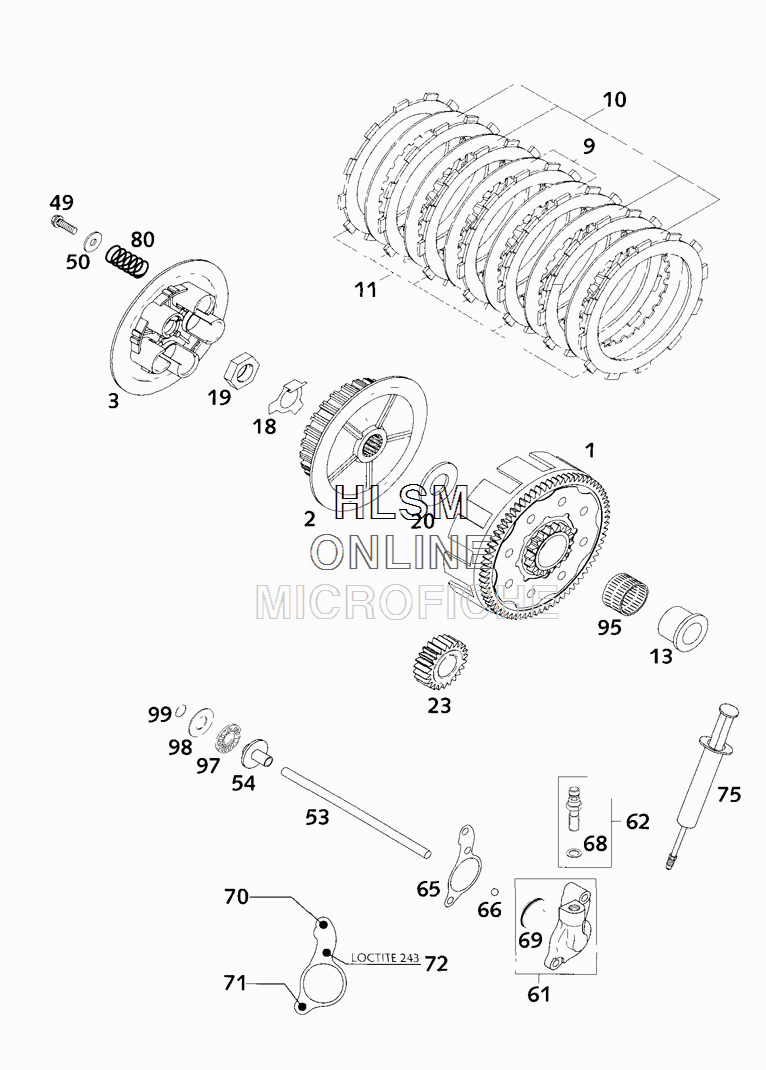

CLUTCH для Ktm 200 EXC - 2001 года выпуска
-
№АртикулНазвание
-
150332000073 CLUTCH 73-Z/18-Z (WITHOUT PRIMARY PINION)CLUTCH 73-Z/18-Z (WITHOUT PRIMARY PINION)
-
250332002000 INNER CLUTCH HUBINNER CLUTCH HUB
-
350332003000 PRESSURE PLATEPRESSURE PLATE
-
950332010100 INTERMEDI. DISC STEEL 1,5MM'INTERMEDI. DISC STEEL 1,5MM'
-
1050332010000 INTERMEDIATE DISC ALU 1,5MM'INTERMEDIATE DISC ALU 1,5MM'
-
1150332011000 ORGANIC DISK 3MMORGANIC DISK 3MM
-
1350332013000 INNER RING 20X26X34X25,9INNER RING 20X26X34X25,9
-
1850332018000 SHEET METAL LOCK 1,5MMSHEET METAL LOCK 1,5MM
-
190936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
2050332020000 STOP DISK 20X39,6X3STOP DISK 20X39,6X3
-
2350332023023 PRIMARY PINION 23-TPRIMARY PINION 23-T
-
490015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
5050232050000 WASHER 6,2 X 18 X 2WASHER 6,2 X 18 X 2
-
5350332017200 PUSH ROD L=179MMPUSH ROD L=179MM
-
5450332054051 PRESSURE PIECEPRESSURE PIECE
-
6150332061044 CYLINDER CPL.CYLINDER CPL.
-
6250332062000 HOLLOW SCREW CPL. M10X1HOLLOW SCREW CPL. M10X1
-
6550332065051 CLUTCH RELEASE GASKET 0,3MMCLUTCH RELEASE GASKET 0,3MM
-
6550332065052 CLUTCH RELEASE GASKET 0,5MMCLUTCH RELEASE GASKET 0,5MM
-
6550332065053 CLUTCH RELEASE GASKET 0,75MMCLUTCH RELEASE GASKET 0,75MM
-
660401070003 BALL DIN5401- 7BALL DIN5401- 7
-
6842013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
6950332066000 PISTON W O-RINGPISTON W O-RING
-
700015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
710015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
720015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
7550329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
8052332005000 CLUTCH SPRING 2,4X40CLUTCH SPRING 2,4X40
-
9556532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
9754637097200 AXIAL NEEDLE BEARING 1226 AXKAXIAL NEEDLE BEARING 1226 AXK
-
9854637098200 AXIAL WASHER AS1226 12X26X1AXIAL WASHER AS1226 12X26X1
-
9854637098300 AXIAL WASHER 12,5X25,8X1,5AXIAL WASHER 12,5X25,8X1,5
-
990993012000 CIRCLIP DIN7993A-RW12CIRCLIP DIN7993A-RW12
