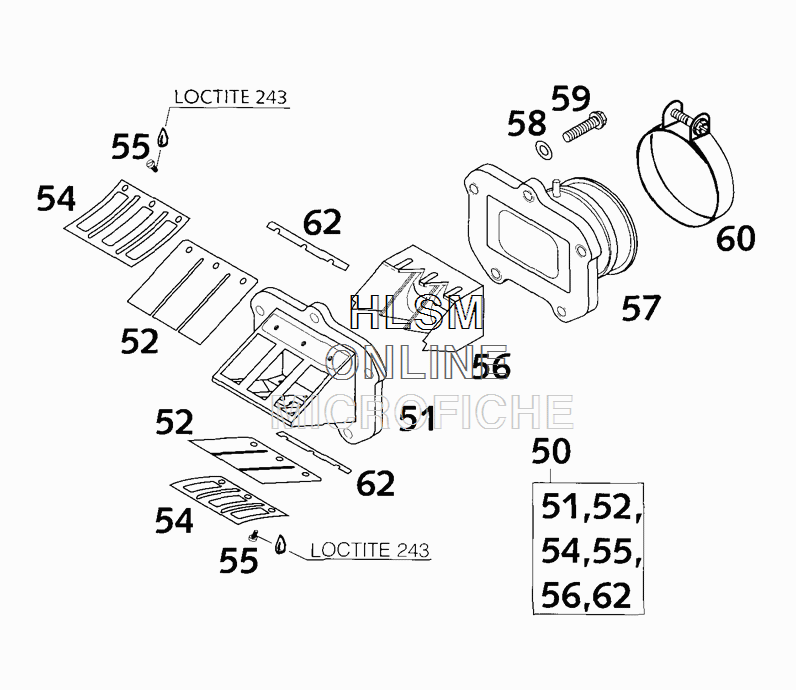

REED VALVE ASSY для Ktm 200 EXC - 2001 года выпуска
-
№АртикулНазвание
-
5052330051044 REED VALVE ASSY CPL.REED VALVE ASSY CPL.
-
5252330052000 REED VALVE CARBONREED VALVE CARBON
-
5454630053000 STOP PLATE TOPSTOP PLATE TOP
-
550084040083 CYL.HEAD SCREW DIN0084-M 4X 8CYL.HEAD SCREW DIN0084-M 4X 8
-
5654630054000 VELOCITY INSERTVELOCITY INSERT
-
5754630050100 INTAKE FLANGE 200 EGS SGPINTAKE FLANGE 200 EGS SGP
-
580137060000 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
590015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
6054330061000 CLAMP 52/12 GEMICLAMP 52/12 GEMI
-
6254230056000 PAPER STRIPPAPER STRIP
