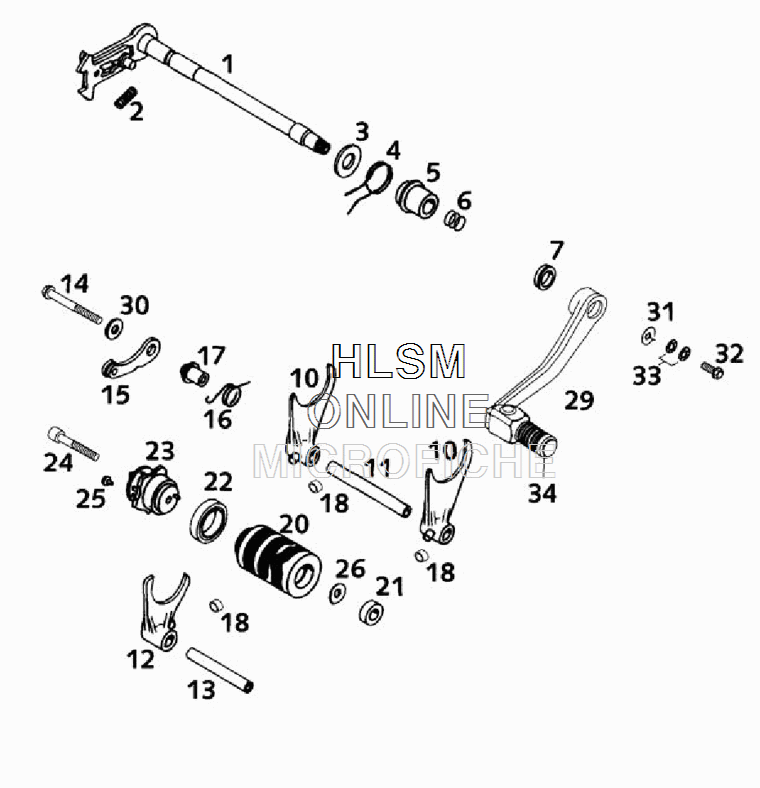

SHIFTING MECHANISM для Ktm LC4 640 Dual Sport - 2001 года выпуска
-
№АртикулНазвание
-
158334005044 SHIFT SHAFT CPL.SHIFT SHAFT CPL.
-
256534013100 SPANNER SPRING 0,8MMSPANNER SPRING 0,8MM
-
358034010000 STEEL WASHER 14 X 28 X 2STEEL WASHER 14 X 28 X 2
-
458034014000 RETURN SPRINGRETURN SPRING
-
558334020000 SPRING SLEEVESPRING SLEEVE
-
60770125020 O-RING 12,50X2,00 NBR 70O-RING 12,50X2,00 NBR 70
-
758033027000 V-SEAL RING V-14-AV-SEAL RING V-14-A
-
1058034002300 SHIFT FORK 1ST/4TH + 2ND GEARSHIFT FORK 1ST/4TH + 2ND GEAR
-
1158034004000 SHIFT RAIL 1ST/4TH + 2ND GEARSHIFT RAIL 1ST/4TH + 2ND GEAR
-
1258034001300 SHIFT FORK 3RD/5TH GEARSHIFT FORK 3RD/5TH GEAR
-
1358034003000 SHIFT RAIL 3RD/5TH GEARSHIFT RAIL 3RD/5TH GEAR
-
140015060653 HH COLLAR SCREW M 6X65 WS=8HH COLLAR SCREW M 6X65 WS=8
-
1558334024044 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
1658034023500 SPRINGSPRING
-
1758334017000 SPRING SLEEVESPRING SLEEVE
-
1850334018100 SHIFTING ROLLER 6X8X5,2SHIFTING ROLLER 6X8X5,2
-
2058334012000 SHIFT ROLLER STEELSHIFT ROLLER STEEL
-
210625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
220625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
2358434015044 SHIFT LOCATING DRUM CPL.SHIFT LOCATING DRUM CPL.
-
240912060404 AH SCREW DIN0912-M 6X40AH SCREW DIN0912-M 6X40
-
2558034016500 SHIFT BUTTONSHIFT BUTTON
-
2651006097000 WASHER 6,4X21,8X1MMWASHER 6,4X21,8X1MM
-
2958434031144 SHIFT LEVER CPL. LC4,COMP.SHIFT LEVER CPL. LC4,COMP.
-
3050232050000 WASHER 6,2 X 18 X 2WASHER 6,2 X 18 X 2
-
3150232050001 STEEL WASHER 6X17X3STEEL WASHER 6X17X3
-
320015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
3350233041000 PAIR OF WASHERS M6 NORDLOCKPAIR OF WASHERS M6 NORDLOCK
-
3436205018000 RUBBERRUBBER
