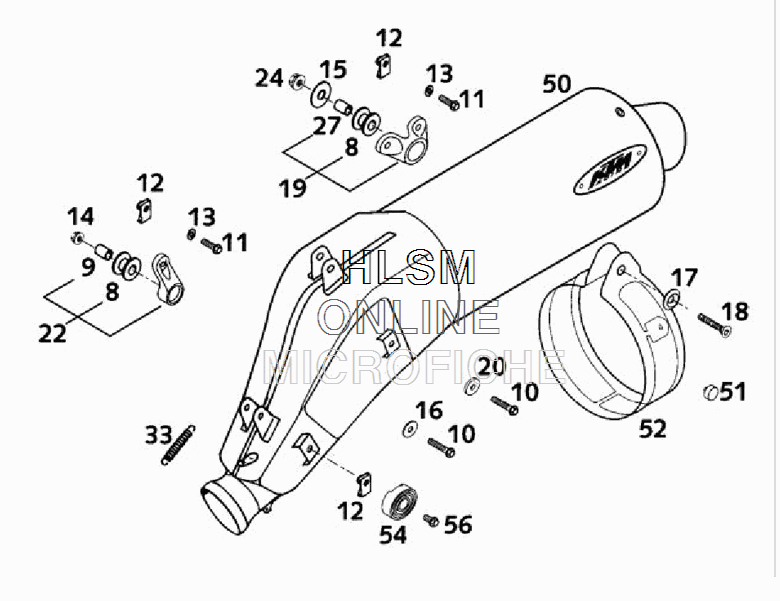

SILENCER для Ktm LC4 640 Dual Sport - 2001 года выпуска
-
№АртикулНазвание
-
854305068100 DAMPING COMPONENT SILICON GREYDAMPING COMPONENT SILICON GREY
-
954305069000 BUSHING 12 X 7 X 16BUSHING 12 X 7 X 16
-
100015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
110015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
1254603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
130137060000 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1456509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
150021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
160021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
1758303061000 SPECIAL WASHER ALU 8 X 24 MMSPECIAL WASHER ALU 8 X 24 MM
-
180991080353 FLAT HEAD SCREW DIN7991-M 8X35FLAT HEAD SCREW DIN7991-M 8X35
-
1958405085044 SILENCER BRACKET CPL.SILENCER BRACKET CPL.
-
2050232050001 STEEL WASHER 6X17X3STEEL WASHER 6X17X3
-
2258305165244 SILENCER BRACKET CPL. SHORTSILENCER BRACKET CPL. SHORT
-
2454310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2756505069000 SPACER BUSHING 8,4X12X16SPACER BUSHING 8,4X12X16
-
3350305016000 TENSION SPRING L=55MMTENSION SPRING L=55MM
-
5058405083000 SILENCER LC4 "HGS4"SILENCER LC4 "HGS4"
-
5154308042000 RUBBER BUFFERRUBBER BUFFER
-
5258405161000 RETAIN CLAMP FHGS-SILENC.RETAIN CLAMP FHGS-SILENC.
-
5458405098100 RUBBERBUFFER F. SILENCERRUBBERBUFFER F. SILENCER
-
560015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
