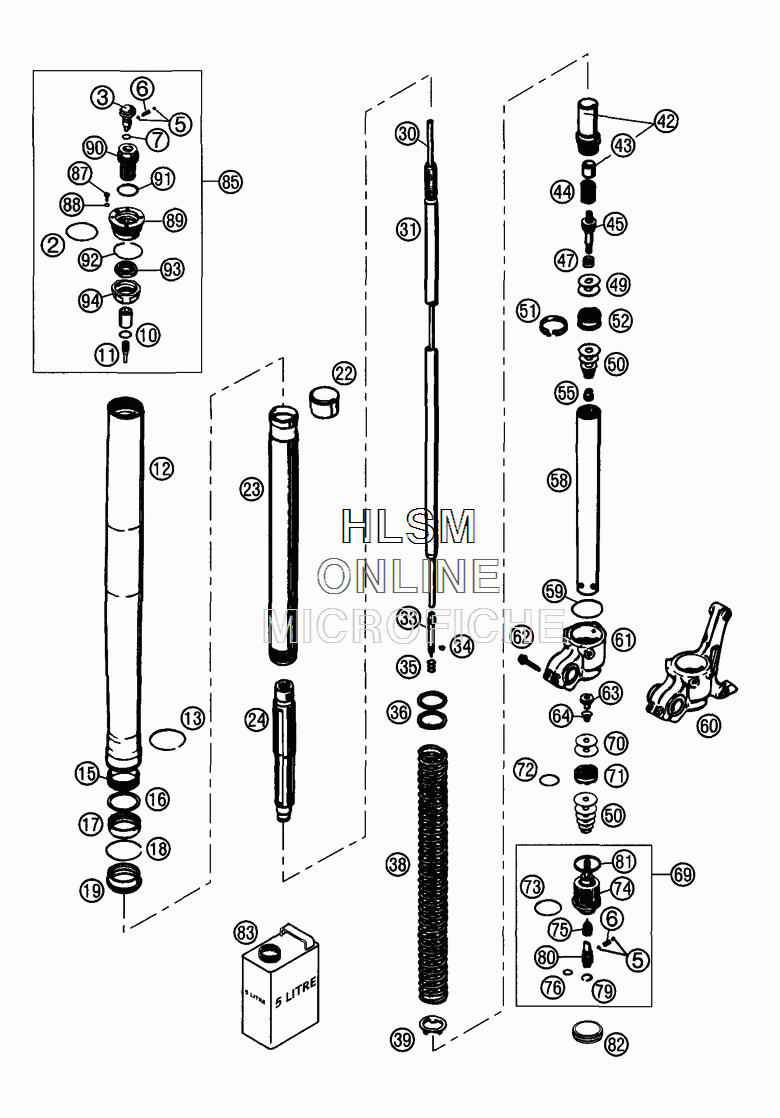

FORK LEGS (USD 48) для Ktm 250 SX - 2002 года выпуска
-
№АртикулНазвание
-
246810340 O-RING NBR 45X2O-RING NBR 45X2
-
348600018 KNOB REBOUNG ADJUSTERKNOB REBOUNG ADJUSTER
-
540540603 STEEL BALL D=3MMSTEEL BALL D=3MM
-
648600028 SPRING D=2,9 L=7,9SPRING D=2,9 L=7,9
-
748600044 O-RING NBR 6X1,5O-RING NBR 6X1,5
-
1048600043 O-RING NBR 12X1,5O-RING NBR 12X1,5
-
1148600019 HOLDER F. ADJUSTMENT TUBE D=4MMHOLDER F. ADJUSTMENT TUBE D=4MM
-
1248600001 OUTER TUBE L=577MM D=54/60MMOUTER TUBE L=577MM D=54/60MM
-
1348600016 GUIDING RING D=58MMGUIDING RING D=58MM
-
1548600007 DU-BUSH 48 X 52 X 20DU-BUSH 48 X 52 X 20
-
1648600013 SUPPORT RING 50 X 57,6 X 1,5SUPPORT RING 50 X 57,6 X 1,5
-
1748600057 OIL SEAL RING 48 X 57,7 X 9,5OIL SEAL RING 48 X 57,7 X 9,5
-
1848600070 LOCK WASHER SB58LOCK WASHER SB58
-
1948600159 DUST STRIPPER D48DUST STRIPPER D48
-
2248600008 DU-BUSH 47 X 49 X 20DU-BUSH 47 X 49 X 20
-
2348600002 INNER TUBE D=48MM L=590MMINNER TUBE D=48MM L=590MM
-
2448600011S HYDR.STOP L=200MM D=32,4 CPL.HYDR.STOP L=200MM D=32,4 CPL.
-
3048600014 ADJUSTMENT TUBE L=512MMADJUSTMENT TUBE L=512MM
-
3148600023 PISTONR. D=14MM L=546MM M11X1PISTONR. D=14MM L=546MM M11X1
-
3348600150 REBOUND NEEDLEREBOUND NEEDLE
-
3448600046 O-RING NBR 3X1,5O-RING NBR 3X1,5
-
3548600033 SPRING REBOUND NEEDLE C=4N/MMSPRING REBOUND NEEDLE C=4N/MM
-
3648600036 SPACER 42X26,5X2,5SPACER 42X26,5X2,5
-
3648600037 SPACER 42X26,5X5SPACER 42X26,5X5
-
3648600053 SPACER 42X26,5X1,5SPACER 42X26,5X1,5
-
3891410011S SPRING 3,6N/MM SETSPRING 3,6N/MM SET
-
3891410012S SPRING 3,8N/MM SETSPRING 3,8N/MM SET
-
3891410013S SPRING 4,ON/MM SET D=5,0MMSPRING 4,ON/MM SET D=5,0MM
-
3891410014S SPRING 4,2N/MM SETSPRING 4,2N/MM SET
-
3891410015S SPRING 4,4N/MM SET D=5,1MMSPRING 4,4N/MM SET D=5,1MM
-
3891410016S SPRING 4,6N/MM SETSPRING 4,6N/MM SET
-
3891410017S SPRING 4,8N/MM SETSPRING 4,8N/MM SET
-
3948600021 INTERM. RING 26,2 X 43 X 3INTERM. RING 26,2 X 43 X 3
-
4243570132S SCREW SLEEVE M29,3X1+BUSHSCREW SLEEVE M29,3X1+BUSH
-
4346810651 DU-BUSH 14X16X12DU-BUSH 14X16X12
-
4448600015 REBOUND SPRING D=14,6MM L=22MMREBOUND SPRING D=14,6MM L=22MM
-
4548600151 TAB REBOUNDTAB REBOUND
-
4735480377 SPRING CHECK VALVE D=0,5SPRING CHECK VALVE D=0,5
-
4948600062 CHECK VALVE 8X24X0,1CHECK VALVE 8X24X0,1
-
4940541416 SHIM 6X8X0,3SHIM 6X8X0,3
-
4940541414 SHIM 6X8,0X0,10SHIM 6X8,0X0,10
-
5048600116 SHIM 6X24X0,1 DELTASHIM 6X24X0,1 DELTA
-
5040540401 SHIM 6X14X0,1SHIM 6X14X0,1
-
5040540402 SHIM 6X16X0,1SHIM 6X16X0,1
-
5040540403 SHIM 6X18X0,1SHIM 6X18X0,1
-
5040541402 SHIM 6X11X0,2SHIM 6X11X0,2
-
5040540405 SHIM 6X14X0,15SHIM 6X14X0,15
-
5040540406 SHIM 6X16X0,15SHIM 6X16X0,15
-
5040540414 SHIM 6X16X0,25SHIM 6X16X0,25
-
5040541417 SHIM 6X11 X0,25SHIM 6X11 X0,25
-
5040540447 SHIM 6X10X0,3SHIM 6X10X0,3
-
5048600063 SHIM 6X24X0,1SHIM 6X24X0,1
-
5048600064 SHIM 6X22X0,1SHIM 6X22X0,1
-
5048600065 SHIM 6X20X0,1SHIM 6X20X0,1
-
5040540415 SHIM 6X18X0,25SHIM 6X18X0,25
-
5148600060 PISTON RING 5X1X84PISTON RING 5X1X84
-
5248600042 PISTON REBOUND D=27,7PISTON REBOUND D=27,7
-
5540540486 NUT M6XO,5 REBOUNDNUT M6XO,5 REBOUND
-
5848600081 TUBE 29,3X1X390 D=8,5MMTUBE 29,3X1X390 D=8,5MM
-
5948600048 O-RING NBR 46 X 2O-RING NBR 46 X 2
-
6048600006 AXLE CLAMP L/S USD 48AXLE CLAMP L/S USD 48
-
6148600005 AXLE CLAMP R/S USD 48AXLE CLAMP R/S USD 48
-
6250600061 HH COLLAR SCREW M 8X30HH COLLAR SCREW M 8X30
-
6340541241 CHECK VALVE NUT M6XO,5CHECK VALVE NUT M6XO,5
-
6440541278 SPRING CHECK VALVE D=0,5MMSPRING CHECK VALVE D=0,5MM
-
6948600152S TAP COMPRESSION CPL.TAP COMPRESSION CPL.
-
7048600061 CHECK VALVE 8X24X0,4CHECK VALVE 8X24X0,4
-
7148600047 PISTON COMPRESSION D=27,9PISTON COMPRESSION D=27,9
-
7246811499 O-RING NBR 21X2O-RING NBR 21X2
-
7335480320 O-RING NBR 24X2O-RING NBR 24X2
-
7448600152 TAP COMPRESSIONTAP COMPRESSION
-
7548600153 NEEDLE COMPRESSION M10X1NEEDLE COMPRESSION M10X1
-
7648600049 O-RING NBR 8X2O-RING NBR 8X2
-
7948600051 LOCK WASHER RB12LOCK WASHER RB12
-
8048600034 COMPRESSION ADJ. SCREWCOMPRESSION ADJ. SCREW
-
8148600004 COPPER WASHER 29,5X33,5X1COPPER WASHER 29,5X33,5X1
-
8248600141 RUBBER CAP D=35MMRUBBER CAP D=35MM
-
8340540882 FORKOIL REZ 71 SAE 5FORKOIL REZ 71 SAE 5
-
8548600075S PRE-LOAD ADJUSTER CPL.(1 PC.)PRE-LOAD ADJUSTER CPL.(1 PC.)
-
8748600076 VENT SCREW M4X8VENT SCREW M4X8
-
8848600046 O-RING NBR 3X1,5O-RING NBR 3X1,5
-
8948600075 SCREW CAP M51X1,5SCREW CAP M51X1,5
-
9048600073 ADAPTER FOR REB. MENDINGADAPTER FOR REB. MENDING
-
9148600077 O-RING NBR 26X2O-RING NBR 26X2
-
9246810010 CIRCLIP 49X1,5CIRCLIP 49X1,5
-
9348600072 LOCKNUTLOCKNUT
-
9448600071 SUPPORT RING FOR SPRINGSUPPORT RING FOR SPRING
