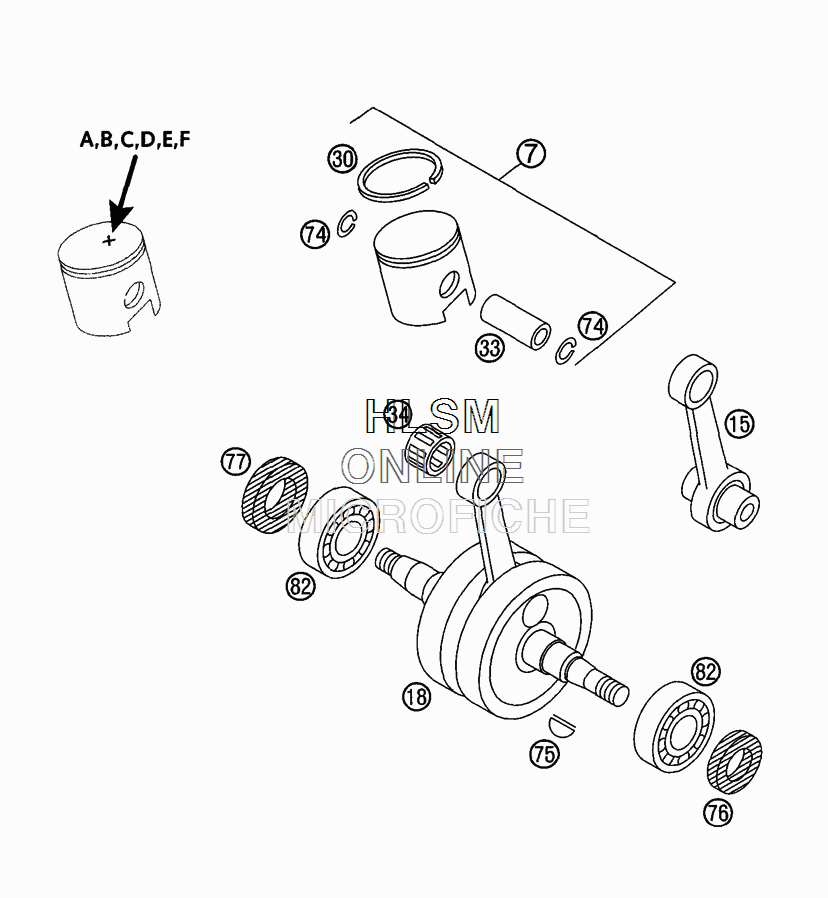

CRANKSHAFT W/ PISTON для Ktm 50 SX Mini Adventure - 2002 года выпуска
-
№АртикулНазвание
-
745130007000A PISTON CPL.39,5 "A"PISTON CPL.39,5 "A"
-
745130007000B PISTON CPL.39,5 "B"PISTON CPL.39,5 "B"
-
745130007000C PISTON CPL.39,5 "C"PISTON CPL.39,5 "C"
-
745130007000D PISTON CPL.39,5 "D"PISTON CPL.39,5 "D"
-
745130007000E PISTON CPL.39,5 "E"PISTON CPL.39,5 "E"
-
745130007000F PISTON CPL.39,5 "F"PISTON CPL.39,5 "F"
-
1545130515000 CON.ROD REPAIR SETCON.ROD REPAIR SET
-
1845130518000 CRANKSHAFTCRANKSHAFT
-
3045130030000 PISTON RING 5000MPISTON RING 5000M
-
3345130033000 PISTON PIN 5000MPISTON PIN 5000M
-
3445130034000 NEEDLE BEARING PISTONPINNEEDLE BEARING PISTONPIN
-
7446030074000 CIRCLIP 12X1CIRCLIP 12X1
-
7545130075000 WOODRUFF KEY 2,5X3,7WOODRUFF KEY 2,5X3,7
-
7645130076000 OIL SEAL RING 15X24X7OIL SEAL RING 15X24X7
-
7745130077000 OIL SEAL RING 17X35X7OIL SEAL RING 17X35X7
-
8245130082100 BALL BEARING 17X40X12BALL BEARING 17X40X12
