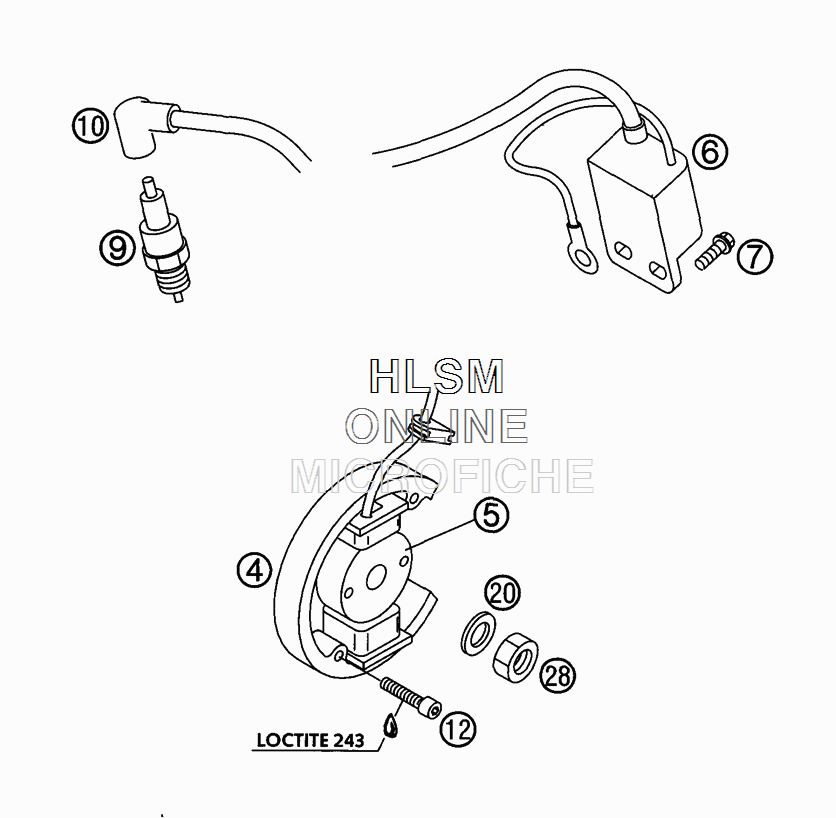

IGNITION SYSTEM для Ktm 50 SX Mini Adventure - 2002 года выпуска
-
№АртикулНазвание
-
445139004000 FLYWHEEL STATOR 5OCCMFLYWHEEL STATOR 5OCCM
-
545139005000 FLYWHEEL ROTOR 50MFLYWHEEL ROTOR 50M
-
645139006000 IGNITION COIL 50MIGNITION COIL 50M
-
70015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
951139093010 SPARK PLUG NGK BR8HSSPARK PLUG NGK BR8HS
-
1054531010000 SPARK PLUG CAP LB05EMH NGKSPARK PLUG CAP LB05EMH NGK
-
120912050253 AH SCREW DIN0912-M 5X25AH SCREW DIN0912-M 5X25
-
2045132020000 WASHER 10,4X16,8X0,4WASHER 10,4X16,8X0,4
-
2845130028000 SPECIAL NUT M10 (HEIGHT 6MM)SPECIAL NUT M10 (HEIGHT 6MM)
