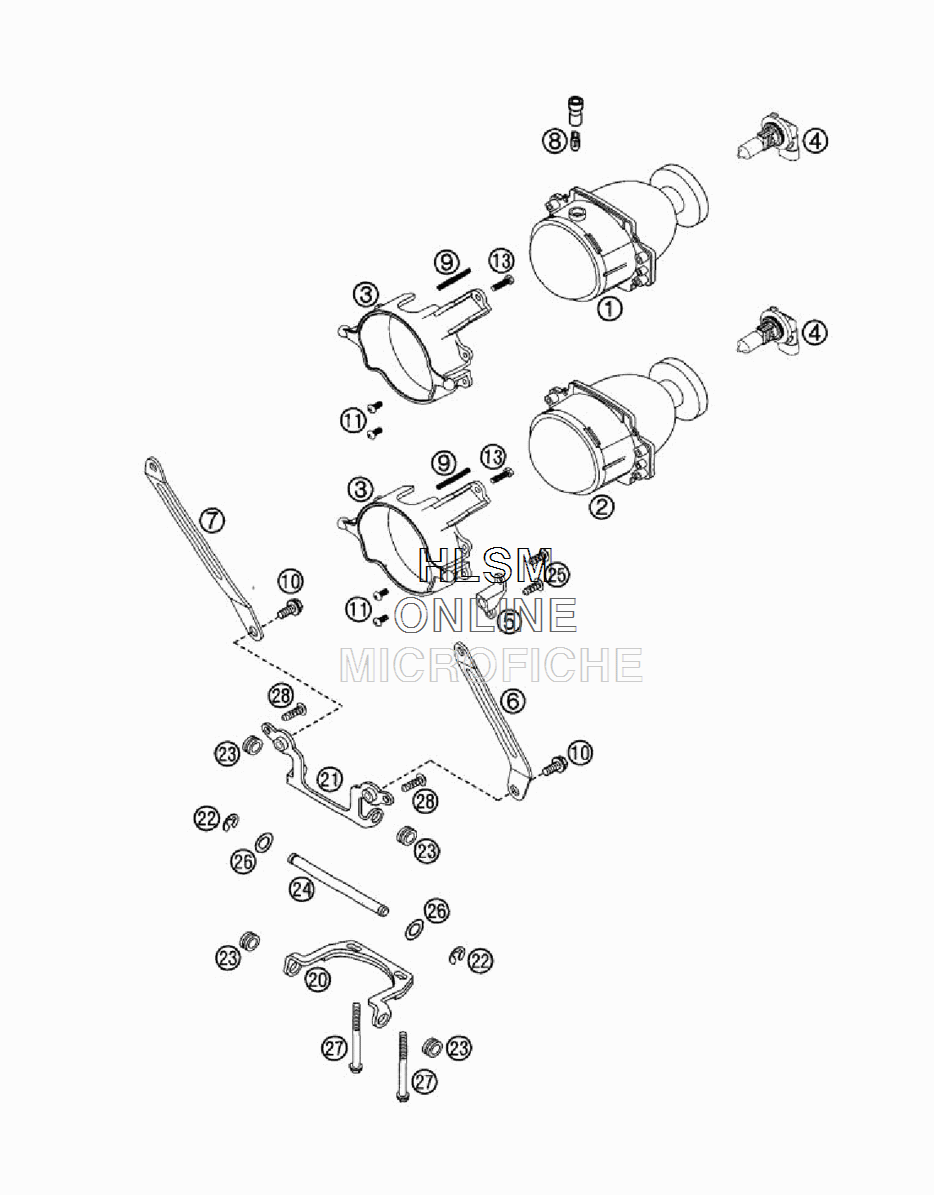

HEADLIGHT W/ SUPPORT для Ktm LC4 640 Duke - 2002 года выпуска
-
№АртикулНазвание
-
158714002000 HEADLIGHT HIGHBEAM CEV 603HEADLIGHT HIGHBEAM CEV 603
-
158714002100 HEAD LIGHT HIGH BEAM CEV622 (LEFT TRAFFIC)HEAD LIGHT HIGH BEAM CEV622 (LEFT TRAFFIC)
-
258714001000 HEADLIGHT LOWBEAM CEV 602 (RIGHT TRAFFIC)HEADLIGHT LOWBEAM CEV 602 (RIGHT TRAFFIC)
-
258714001050 HEAD LIGHT LOWBEAM CEV 601 (LEFT TRAFFIC)HEAD LIGHT LOWBEAM CEV 601 (LEFT TRAFFIC)
-
258714001100 HEAD LIGHT LOW BEAM CEV 604 (RIGHT TRAFFIC)HEAD LIGHT LOW BEAM CEV 604 (RIGHT TRAFFIC)
-
358714010000 HEADLIGHT SUPPORTHEADLIGHT SUPPORT
-
458714003000 BULB HB3 12V 60WBULB HB3 12V 60W
-
558714010070 BRACKET HEAD LIGHT SUPPORTBRACKET HEAD LIGHT SUPPORT
-
658708001080 BRACE PLATEE FOR MASK L/SBRACE PLATEE FOR MASK L/S
-
758708101080 BRACE PLATE FOR MASK R/SBRACE PLATE FOR MASK R/S
-
849011435000 BULB 12V 5W (W2,1X9,5D)BULB 12V 5W (W2,1X9,5D)
-
958714010050 SPRING F. HEAD LIGHT ADJ.SPRING F. HEAD LIGHT ADJ.
-
100015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
1158714001011 OVAL HEAD SCREW DC15 GEH. PH2OVAL HEAD SCREW DC15 GEH. PH2
-
1358714001010 SCREW EJOT PT 10 K 50X35SCREW EJOT PT 10 K 50X35
-
2058708002000 HINGE JOINT BOTTOMHINGE JOINT BOTTOM
-
2158708001060 BRACKET F. JOINT MASKBRACKET F. JOINT MASK
-
220799060003 TAB WASHER M6799-RS 6,0TAB WASHER M6799-RS 6,0
-
2331008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
2458708001070 JOINT AXLE F. MASKJOINT AXLE F. MASK
-
250016050121 PLASTIC SCREW KA50X12 PT1411PLASTIC SCREW KA50X12 PT1411
-
260125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
270015060653 HH COLLAR SCREW M 6X65 WS=8HH COLLAR SCREW M 6X65 WS=8
-
280081500181 EJOT PT SCREW KA 50X18 WN1411EJOT PT SCREW KA 50X18 WN1411
