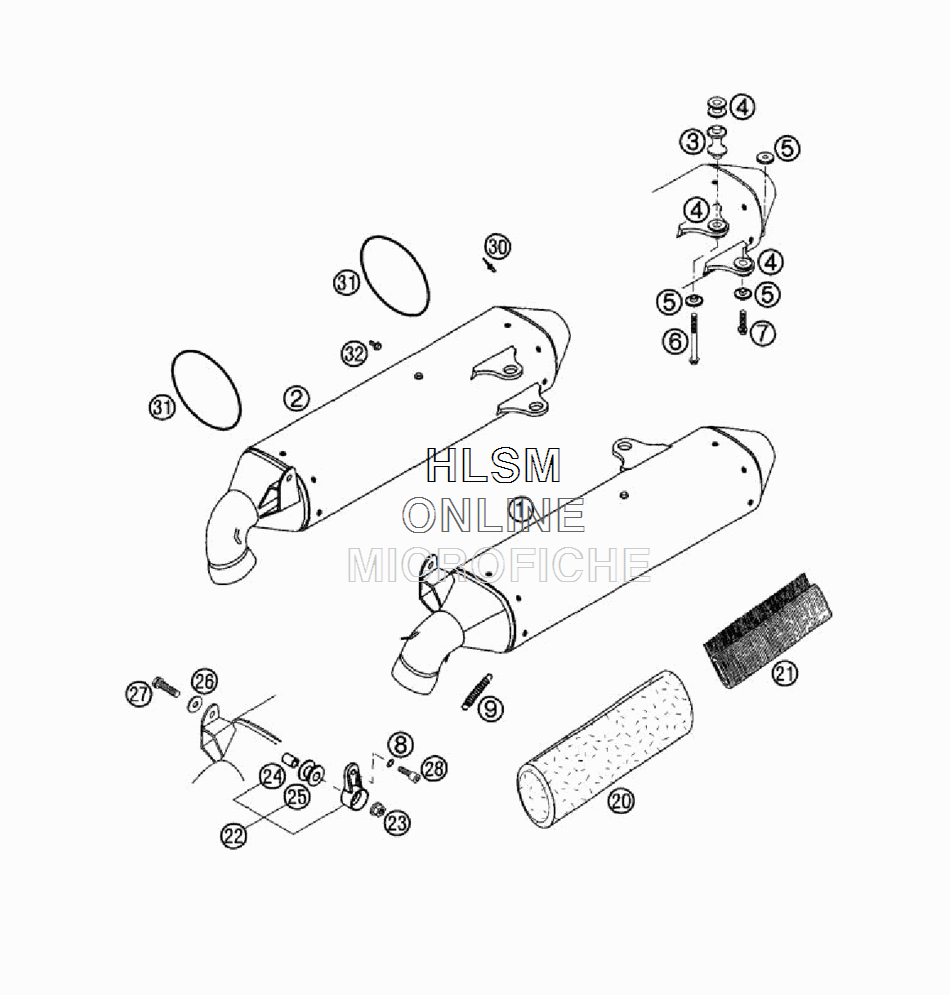

SILENCER для Ktm LC4 640 Duke - 2002 года выпуска
-
№АртикулНазвание
-
15870507000030 SILENCER L/S DUKE BLACKSILENCER L/S DUKE BLACK
-
15870507010030 SILENCER L/S BLACK (USA)SILENCER L/S BLACK (USA)
-
25870507100030 SILENCER R/S DUKE BLACKSILENCER R/S DUKE BLACK
-
25870507110030 SILENCER R/S BLACK (USA)SILENCER R/S BLACK (USA)
-
358708015050 CLAMP NUMBER PLATE CARRIERCLAMP NUMBER PLATE CARRIER
-
454605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
554605069000 BUSHING 7,5X12X28X7,8BUSHING 7,5X12X28X7,8
-
60015060653 HH COLLAR SCREW M 6X65 WS=8HH COLLAR SCREW M 6X65 WS=8
-
70014060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
80137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
950305016000 TEN.SPRING L=55MM EY.MOVEABLETEN.SPRING L=55MM EY.MOVEABLE
-
2058705078350 STUFFING YARN 350 GRAMMSTUFFING YARN 350 GRAMM
-
2158705078080 STUFINGYARN 80 GRAMMSTUFINGYARN 80 GRAMM
-
2254305065444 SIL.BRACKET CPL. LONG 8MMSIL.BRACKET CPL. LONG 8MM
-
2354310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2456505069000 SPACER BUSHING 8,4X12X16SPACER BUSHING 8,4X12X16
-
2554305068100 DAMP. COMPONENT SILICONE GREYDAMP. COMPONENT SILICONE GREY
-
260021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
270015080303 HH COLLAR SCREW M8X30 WS=10HH COLLAR SCREW M8X30 WS=10
-
280912060203 AH SCREW DIN0912-M 6X20AH SCREW DIN0912-M 6X20
-
300011481002 DUMMY RIVET 4,8X10,0 NIRODUMMY RIVET 4,8X10,0 NIRO
-
310770223601 O-RING 82,14X3,53 SILIKONO-RING 82,14X3,53 SILIKON
-
320009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
Все узлы модели:
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- BREATHER SYSTEM
- CARBURETOR MIKUNI BST 40
- CLUTCH
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- ELECTRIC STARTER
- ELECTRONIC POWER CONTROL
- ENGINE CASE
- FLASHER W/ REAR LIGHT
- FORK LEGS - 43 - DISASEMBLED
- FRAME - SUB FRAME
- FRONT FORK - 43
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- HEADLIGHT W/ SUPPORT
- IGNITION SYSTEM KOKUSAN
- KICKSTARTER
- LUBRICATING SYSTEM
- MASK W/ FENDERS
- PIPES - PRE SILENCER
- PRO LEVER SYSTEM
- REAR BRAKE CONTROL
- REAR WHEEL
- SEAT - TANK - COVER
- SHIFTING MECHANISM
- SHOCK ABSORBER
- SHOCK ABSORBER DISASSEMBLED
- SIDE STAND
- • SILENCER
- SPECIAL TOOLS
- SPEEDOMETER - TACHOMETER
- SWINGARM W/ CHAIN GUARD
- TIMING VALVE
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
- VALVE DRIVE
- WATER PUMP
- WIRING HARNESS
