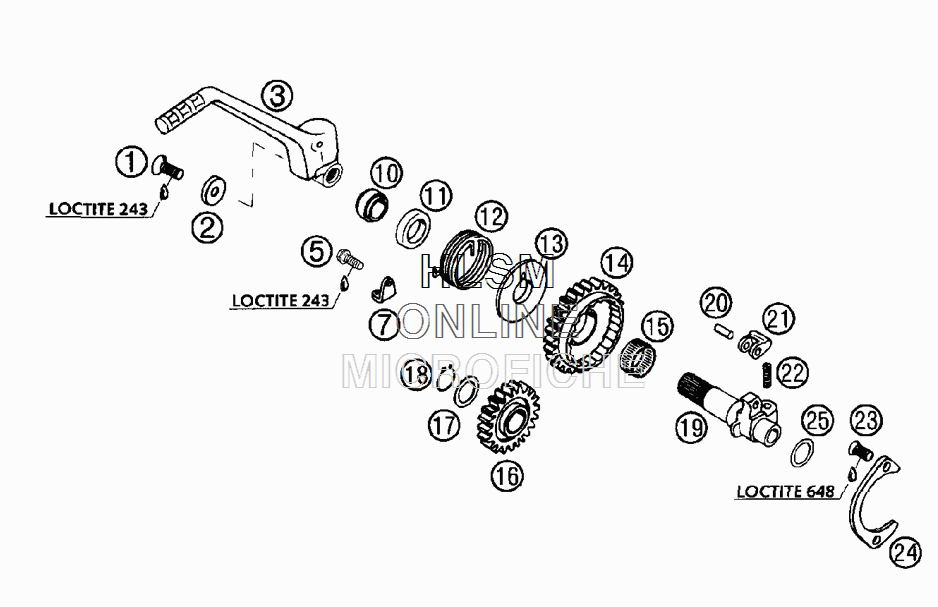

KICKSTARTER для Ktm 250 EXC - 2003 года выпуска

№

Артикул

Название
1

54610052000 SPROCKET SCREW-AH M8X20 WS=6

SPROCKET SCREW-AH M8X20 WS=6

410 ₽
2

54633037000 WASHER 8MM GALVANIZED

WASHER 8MM GALVANIZED

1 640 ₽
3

54633036344 KICKSTARTER CPL. 250/VL

KICKSTARTER CPL. 250/VL

42 990 ₽
5

0015060163 HH COLLAR SCREW M 6X16 WS=8

HH COLLAR SCREW M 6X16 WS=8

290 ₽
7

54633074000 SPRING HANGER

SPRING HANGER

850 ₽
10

54633038000 SPACER BUSHING ZINC PLATED

SPACER BUSHING ZINC PLATED

1 960 ₽
11

0760193070 SHAFT SEAL RING 19X30X7B

SHAFT SEAL RING 19X30X7B

1 290 ₽
12

54633025000 KICKSTARTER SPRING

KICKSTARTER SPRING

2 630 ₽
13

54633026000 DRIVING HUB

DRIVING HUB

350 ₽
14

54733051034 KICKSTART..GEAR 34-Z

KICKSTART..GEAR 34-Z

26 780 ₽
15

56533098000 NEEDLE BEARING K22X26X13H

NEEDLE BEARING K22X26X13H

3 210 ₽
16

54633024200 KICKST;INTERMEDIATE GEAR 24 T

KICKST;INTERMEDIATE GEAR 24 T

33 120 ₽
17

54633090000 STOP DISK 17,2X24X1

STOP DISK 17,2X24X1

820 ₽
18

0471170010 CIRCLIP DIN0471-17X1

CIRCLIP DIN0471-17X1

290 ₽
19

54633021200 KICKSTARTER SHAFT

KICKSTARTER SHAFT

69 190 ₽
20

0402061480 NEEDLE ROLLER DIN5402 6X14,8

NEEDLE ROLLER DIN5402 6X14,8

880 ₽
21

54633023200 LOCKING PAWL

LOCKING PAWL

7 180 ₽
22

54633028200 RATCHET SPRING

RATCHET SPRING

740 ₽
23

0991060166 FL.HEAD SCR.DIN7991-M6X16 10.9

FL.HEAD SCR.DIN7991-M6X16 10.9

320 ₽
24

54733069000 RELEASE PLATE 6MM

RELEASE PLATE 6MM

12 530 ₽
25

0988172405 SHIM WASHER DIN0988-17X24X0,5

SHIM WASHER DIN0988-17X24X0,5

410 ₽
