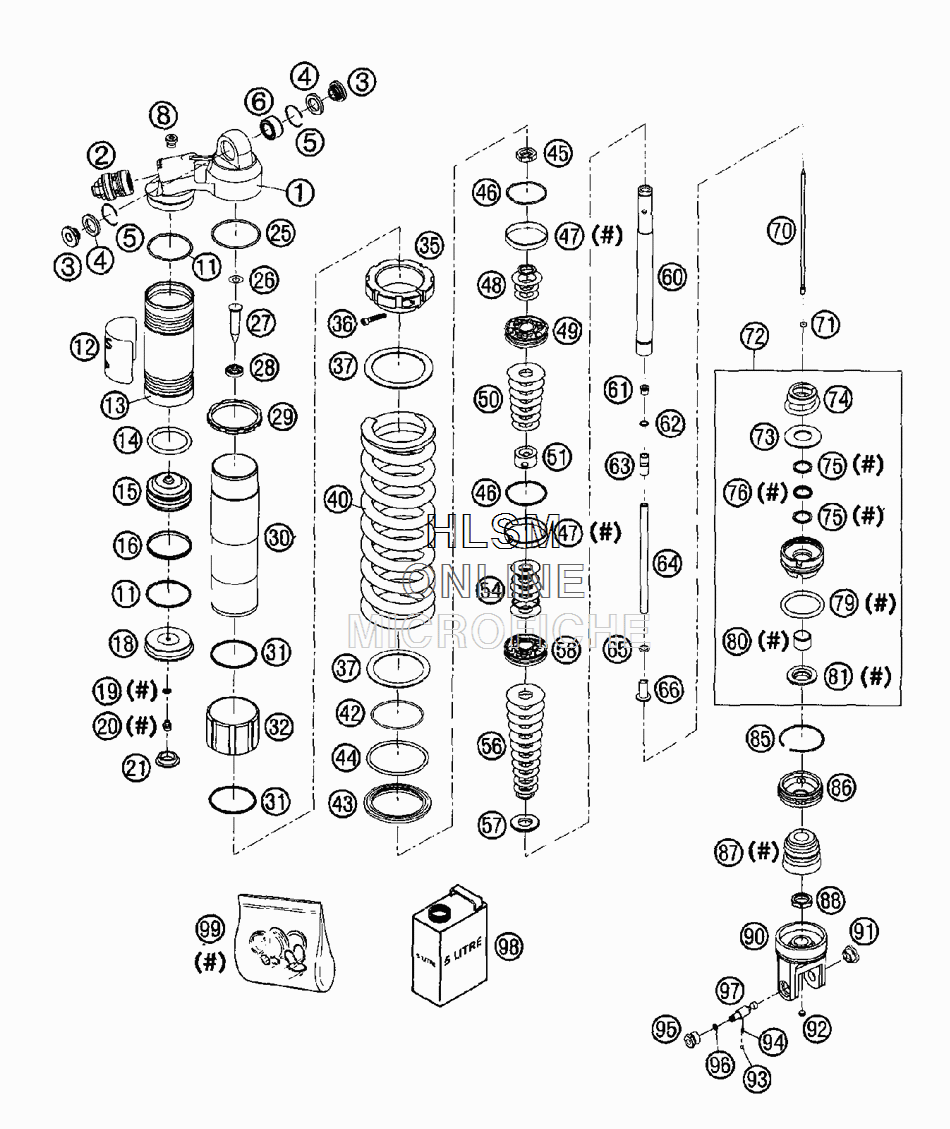

SHOCK ABSORBER - DISASSEMBLED для Ktm 250 EXC - 2003 года выпуска
-
№АртикулНазвание
-
150180350 SHOCK ABSORBER TOP H=30,5 B=21SHOCK ABSORBER TOP H=30,5 B=21
-
250180301S2 MCC-COMPR.DAMP.CONTROL CPL.MCC-COMPR.DAMP.CONTROL CPL.
-
346180007 ADAPTOR BUSH KGW 12X24ADAPTOR BUSH KGW 12X24
-
446180003 OIL SEAL KGW D=25OIL SEAL KGW D=25
-
550180168 WASHER KGW D=25WASHER KGW D=25
-
650180005 BEARING KGW 1525 HDBEARING KGW 1525 HD
-
850180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
1146810016 O-RING NBR 48X2O-RING NBR 48X2
-
1252000041 WP CAUTION (PDS KTM) 58X33WP CAUTION (PDS KTM) 58X33
-
1350180351 RESERVOIR SCREW L=140 D=52RESERVOIR SCREW L=140 D=52
-
1446180014 O-RING VITON 41X5O-RING VITON 41X5
-
1546180002 SEPARATION PISTON D=52; H=32SEPARATION PISTON D=52; H=32
-
1646180015 PISTON RING 3,9X1,5X156PISTON RING 3,9X1,5X156
-
1850180344 RESERVOIR CAP D=58RESERVOIR CAP D=58
-
1946810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
2036120151 SCREW PLUG.M5X6SCREW PLUG.M5X6
-
2146811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
2550180097 O-RING 52X2O-RING 52X2
-
2650180177 WASHER 16X8,2X0,6WASHER 16X8,2X0,6
-
2750180343 NEEDLE D=10 L=36/50NEEDLE D=10 L=36/50
-
2850180271 SCREW CAP M20X1; D=11SCREW CAP M20X1; D=11
-
2950180270 LOCK WASHERLOCK WASHER
-
3050180295 TUBE PDS L=196TUBE PDS L=196
-
3150180133 CIRCLIP 50X1,5CIRCLIP 50X1,5
-
3250180081 SPRING GUIDANCE L=40SPRING GUIDANCE L=40
-
3550180354 SPRING RETAINER M5SPRING RETAINER M5
-
360912050303 AH SCREW DIN0912-M 5X30AH SCREW DIN0912-M 5X30
-
3750180114 INTERM.RING SCREW SPRING RET.INTERM.RING SCREW SPRING RET.
-
4091210013 SPRING PD50-250 65-83N/MMSPRING PD50-250 65-83N/MM
-
4091210009 SPRING PDS1-250 70-90N/MMSPRING PDS1-250 70-90N/MM
-
4091210010 SPRING PDS2-250 75-96N/MMSPRING PDS2-250 75-96N/MM
-
4091210011 SPRING PDS3-250 80-103N/MMSPRING PDS3-250 80-103N/MM
-
4091210012 SPRING PDS4-250 85-111N/MMSPRING PDS4-250 85-111N/MM
-
4091210014 SPRING PDS5-260 66-86N/MMSPRING PDS5-260 66-86N/MM
-
4091210015 SPRING PDS6-260 71,5-90,5N/MMSPRING PDS6-260 71,5-90,5N/MM
-
4091210016 SPRING PDS7-260 76-95N/MMSPRING PDS7-260 76-95N/MM
-
4091210017 SPRING PDS8-260 81-99,5N/MMSPRING PDS8-260 81-99,5N/MM
-
4250180273 CIRCLIP 58,2X2CIRCLIP 58,2X2
-
4350180355 SPRING RETAINER D=80SPRING RETAINER D=80
-
4450180352 O-RING VITON 66,27X3,53O-RING VITON 66,27X3,53
-
4550180141 PISTON ROD NUT M16X1PISTON ROD NUT M16X1
-
4650180099 O-RING VITON 44,17X1,78O-RING VITON 44,17X1,78
-
4750180135 PISTON RING 50-8PISTON RING 50-8
-
4850180072 WASHER 16X28X0,30WASHER 16X28X0,30
-
4850180209 WASHER 21X36X0,25WASHER 21X36X0,25
-
4850180210 WASHER 16X21X1WASHER 16X21X1
-
4950180197 PISTON 6+6X7/4,5PISTON 6+6X7/4,5
-
5050180070 WASHER 16X42X0,25WASHER 16X42X0,25
-
5050180071 WASHER 16X44X0,25WASHER 16X44X0,25
-
5050180074 WASHER 16X32X0,30WASHER 16X32X0,30
-
5050180075 WASHER 16X34X0,30WASHER 16X34X0,30
-
5050180076 WASHER 16X36X0,30WASHER 16X36X0,30
-
5050180077 WASHER 16X38X0,30WASHER 16X38X0,30
-
5050180078 WASHER 16X40X0,30WASHER 16X40X0,30
-
5150180269 SANDWICH BUSH D25XD16X14,5/DSANDWICH BUSH D25XD16X14,5/D
-
5446811637 PRESSURE RING 36X32,25PRESSURE RING 36X32,25
-
5450180035 BACKPLATE 16X21X0,30BACKPLATE 16X21X0,30
-
5450180047 WASHER 16X32X0,15WASHER 16X32X0,15
-
5450180057 WASHER 16X34X0,20WASHER 16X34X0,20
-
5450180058 WASHER 16X36X0,20WASHER 16X36X0,20
-
5450180065 WASHER 16X32X0,25WASHER 16X32X0,25
-
5650180035 BACKPLATE 16X21X0,30BACKPLATE 16X21X0,30
-
5650180055 WASHER 16X30X0,20WASHER 16X30X0,20
-
5650180056 WASHER 16X32X0,20WASHER 16X32X0,20
-
5650180057 WASHER 16X34X0,20WASHER 16X34X0,20
-
5650180058 WASHER 16X36X0,20WASHER 16X36X0,20
-
5650180059 WASHER 16X38X0,20WASHER 16X38X0,20
-
5650180069 WASHER 16X40X0,25WASHER 16X40X0,25
-
5650180070 WASHER 16X42X0,25WASHER 16X42X0,25
-
5650180071 WASHER 16X44X0,25WASHER 16X44X0,25
-
5650180315 PRESSURE-RING 40X44X0,3PRESSURE-RING 40X44X0,3
-
5750180313 DISC REBOUND D=47DISC REBOUND D=47
-
5850180311 PISTON 6+6X7/4,5 VB 1,0PISTON 6+6X7/4,5 VB 1,0
-
6050180294 SPINDEL D=18; L=153; M16X1SPINDEL D=18; L=153; M16X1
-
6150180200 BUSH M8X1BUSH M8X1
-
6250180157 O-RING VITON 7X1,5O-RING VITON 7X1,5
-
6350180201 NEEDLE SEAT M8X1NEEDLE SEAT M8X1
-
6450180264 TUBEM18X1 L=151,5TUBEM18X1 L=151,5
-
6548600049 O-RING NBR 8X2O-RING NBR 8X2
-
6650180279 TUBE ADAPTOR M8X1 L=23TUBE ADAPTOR M8X1 L=23
-
7050180261 NEEDLE L=175NEEDLE L=175
-
7146811265 O-RING VITON 2,2X1,6O-RING VITON 2,2X1,6
-
7250180384S ADAPTOR CPL. D=50 H=26,5ADAPTOR CPL. D=50 H=26,5
-
7350180314 DISC REBOUND SPRINGDISC REBOUND SPRING
-
7450180385 REBOUND SPRINGREBOUND SPRING
-
7550180102 BACKUPRING 22,55X1,5BACKUPRING 22,55X1,5
-
7650180101 QUAD RING 18X2,62QUAD RING 18X2,62
-
7950180103 O-RING 41X5O-RING 41X5
-
8046180119 DU-BUSH 18X20X12DU-BUSH 18X20X12
-
8150180082 DUST SEAL 1835DUST SEAL 1835
-
8550180126 CIRCLIP 53X1,75CIRCLIP 53X1,75
-
8650180165 COVER D=50COVER D=50
-
8750180276 BUMP RUBBER WP60 D=18-26BUMP RUBBER WP60 D=18-26
-
8850180283 CONTRA NUT M18X1 H=5CONTRA NUT M18X1 H=5
-
9050180356 FORK PART L=55,5 8=32,5 D=12FORK PART L=55,5 8=32,5 D=12
-
9150180105 THREADED BUSH M12 PDSTHREADED BUSH M12 PDS
-
9250180297 RUBBER PLUG D=8RUBBER PLUG D=8
-
9340540603 STEEL BALL D=3MMSTEEL BALL D=3MM
-
9440540602 SPRING D=2,9; L=6,2SPRING D=2,9; L=6,2
-
9550180281 RESERVOIR CAP M14X1RESERVOIR CAP M14X1
-
9650180222 O-RING NBR 4X1,5O-RING NBR 4X1,5
-
9750180280 ADJUSTING SCREW 80 DEG.; L=39ADJUSTING SCREW 80 DEG.; L=39
-
9850180342S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
99R12008 REPAIR-KIT GASKET 5018 PDS 03REPAIR-KIT GASKET 5018 PDS 03
