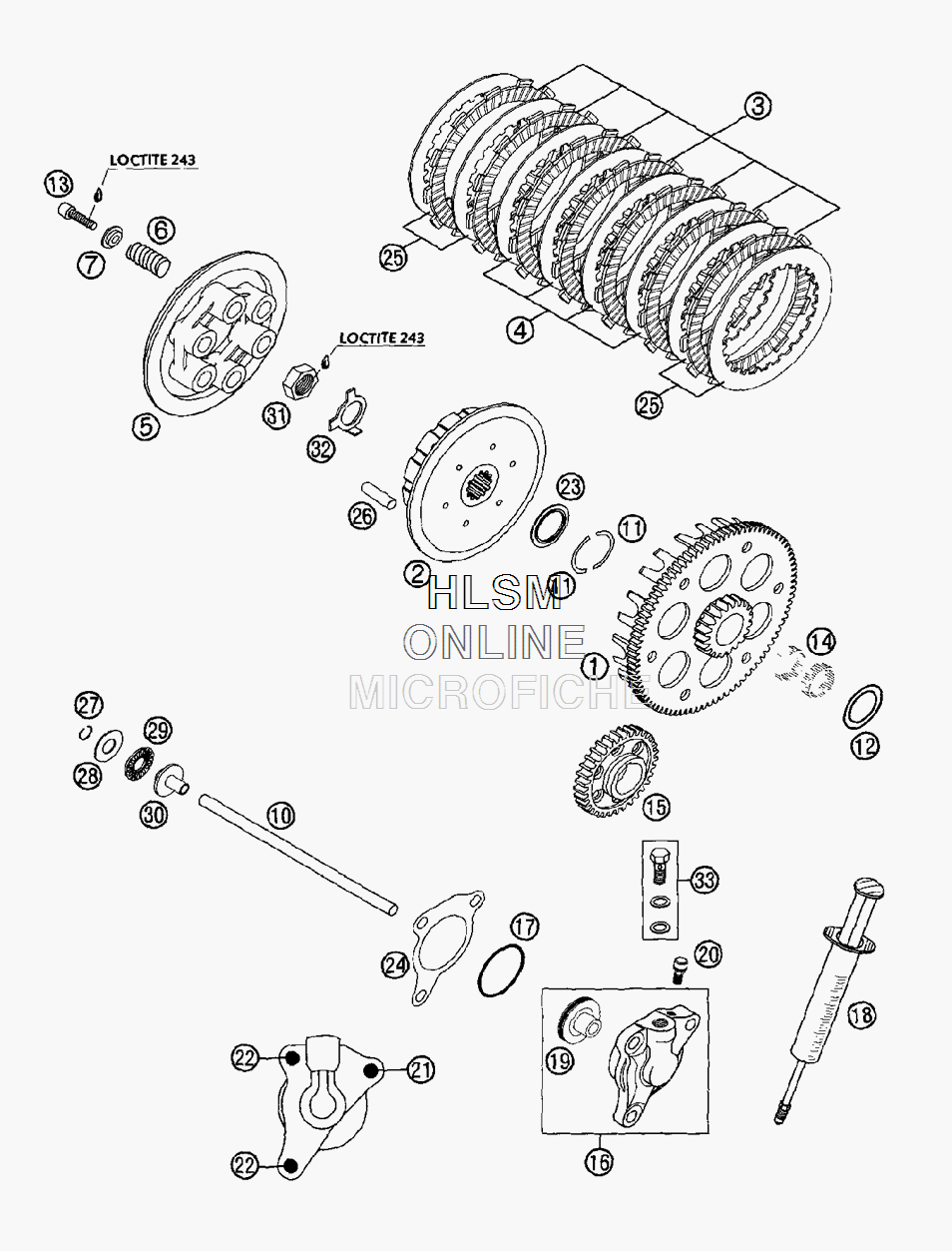

CLUTCH для Ktm 450 SX Racing/RFS - 2003 года выпуска
-
№АртикулНазвание
-
159032000276 OUTER CLUTCH H. 76-T/20-T (HARDED)OUTER CLUTCH H. 76-T/20-T (HARDED)
-
259032002200 INNER CLUTCH HUB RACINGINNER CLUTCH HUB RACING
-
359032011000 LINING DISK 1,8MMLINING DISK 1,8MM
-
459032010200 INTERMEDIATE DISC 1,4MMINTERMEDIATE DISC 1,4MM
-
559032003100 PRESSURE CAPPRESSURE CAP
-
659032005000 CLUTCH SPRING 2,5X43MMCLUTCH SPRING 2,5X43MM
-
759032006000 SPRING RETAINER 6,2X12X18X3,6SPRING RETAINER 6,2X12X18X3,6
-
1059032054000 PUSH ROD 7X188MMPUSH ROD 7X188MM
-
1159032007000 HALF-WASHERHALF-WASHER
-
1259032017000 SUPPORTWASHER 25X35X1SUPPORTWASHER 25X35X1
-
130984060252 AH SCREW DIN7984 M6X25AH SCREW DIN7984 M6X25
-
140405252910 NEEDLE BEAR K25X29X10NEEDLE BEAR K25X29X10
-
1559032000033 PRIMARY GEAR 33-TPRIMARY GEAR 33-T
-
1659032061044 OUTPUT CYLINDER CPL.OUTPUT CYLINDER CPL.
-
170770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
1850329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
1959032066000 PISTON WITH O-RINGPISTON WITH O-RING
-
2054732064000 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
210015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
220015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
2359032009000 STEPPED WASHERSTEPPED WASHER
-
2459032065000 GASKET FOR SLAVE CYLINDERGASKET FOR SLAVE CYLINDER
-
2559032010100 INTERMEDIATE DISC 1MMINTERMEDIATE DISC 1MM
-
2659032004000 DRIVING SLEEVE D=8,L=31DRIVING SLEEVE D=8,L=31
-
270993012000 CIRCLIP DIN7993-RWI2CIRCLIP DIN7993-RWI2
-
2854637098200 AXIAL WASHER AS122612X26X1AXIAL WASHER AS122612X26X1
-
2954637097200 AXIAL NEEDLE BEARING AXK 1226AXIAL NEEDLE BEARING AXK 1226
-
3050332054051 PRESSURE PIECEPRESSURE PIECE
-
310936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
3256532018000 LOCK WASHERLOCK WASHER
-
3359032062000 HOLLOW SCREW HYDR. CLUTCH CPL.HOLLOW SCREW HYDR. CLUTCH CPL.
