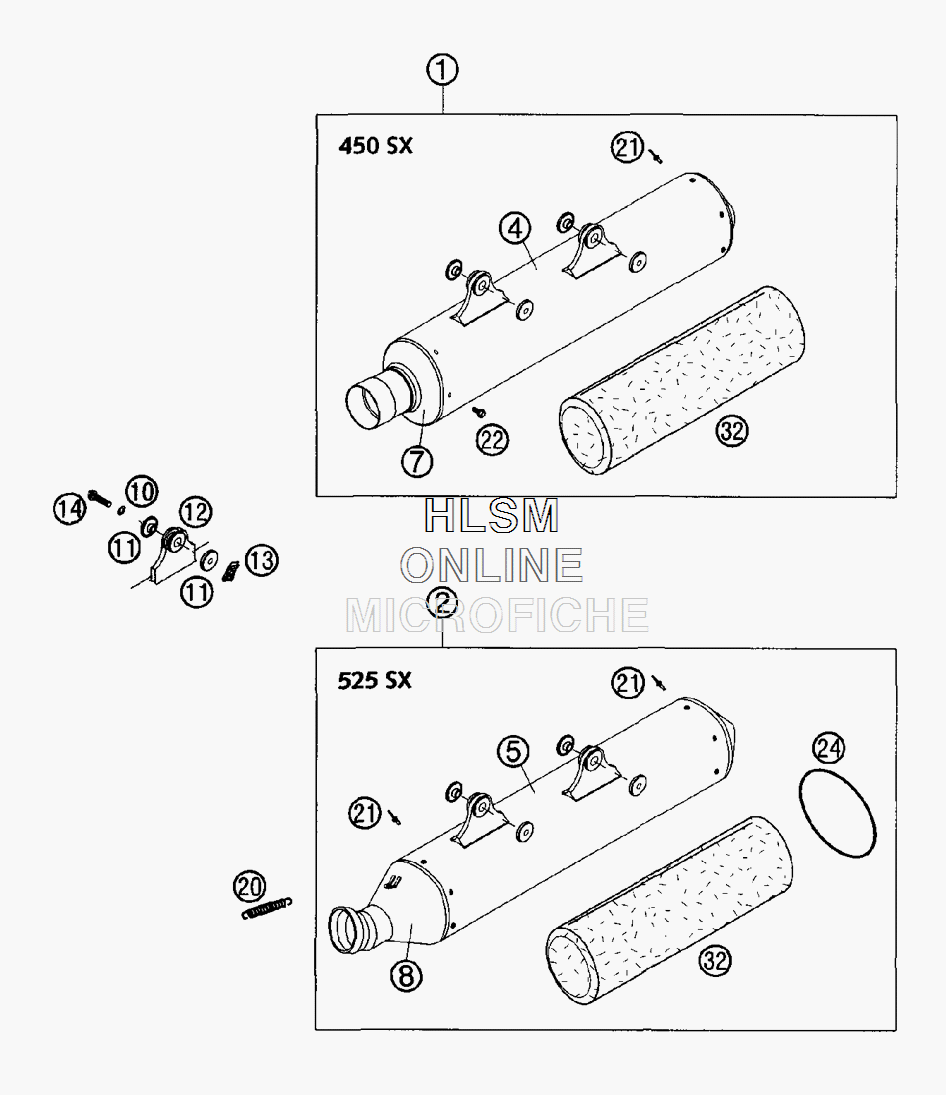

EXHAUST SILENCER для Ktm 450 SX Racing/RFS - 2003 года выпуска
-
№АртикулНазвание
-
159405079000 SILENCERSILENCER
-
259005079200 SILENCERSILENCER
-
459405079050 SILENCER HOUSING CPL.SILENCER HOUSING CPL.
-
559005079150 SILENCER HOUSINGSILENCER HOUSING
-
759405079009 SILENC.CONNECT. CAP CPL.SILENC.CONNECT. CAP CPL.
-
859005081052 SILENC.CONNECTING CAP CPL.SILENC.CONNECTING CAP CPL.
-
100137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1154605069000 BUSHING 7,5X12X28X7,8 96BUSHING 7,5X12X28X7,8 96
-
1254605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
1354603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
140015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
2050305016000 TEN.SPRING L=55MM EY.MOVEABLETEN.SPRING L=55MM EY.MOVEABLE
-
210011481002 DUMMY RIVET 4,8X10,0 NIRODUMMY RIVET 4,8X10,0 NIRO
-
220009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
240770223601 O-RING 82,14X3,53 SILIKONO-RING 82,14X3,53 SILIKON
-
3259005078550 STUFF. YARN 550GRAMM L=550MMSTUFF. YARN 550GRAMM L=550MM
