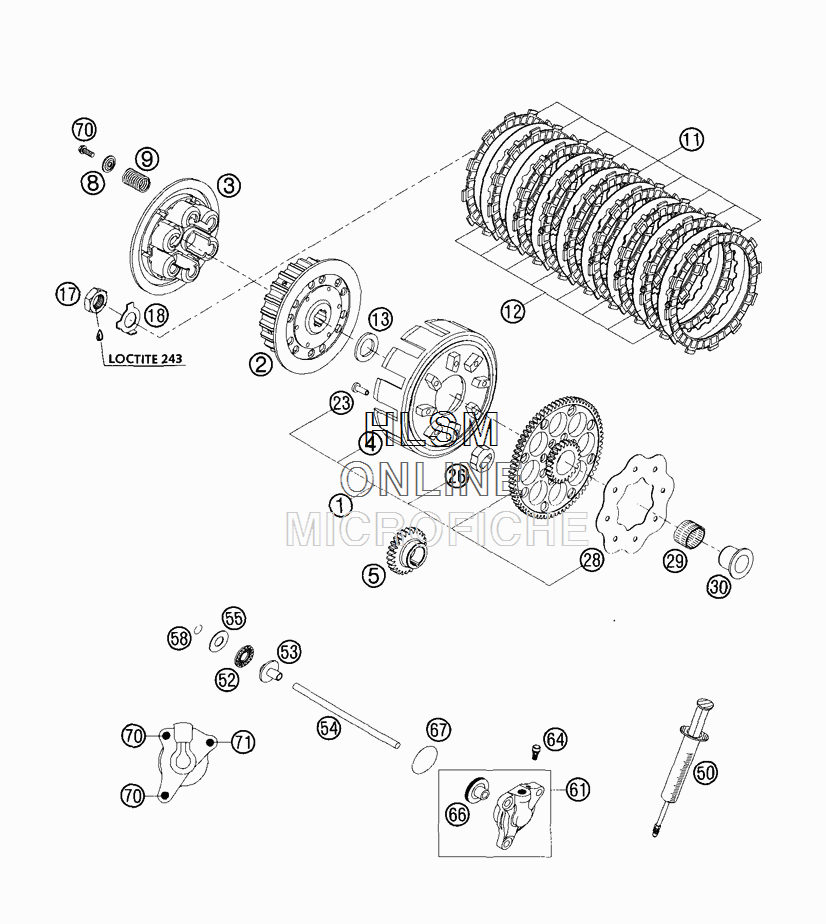

CLUTCH для Ktm 250 EXC - 2004 года выпуска
-
№АртикулНазвание
-
154832001072 OUTER CLUTCH HUB 72-T CPLOUTER CLUTCH HUB 72-T CPL
-
254832002000 INNER CLUTCH HUBINNER CLUTCH HUB
-
354632003000 PRESSURE CAPPRESSURE CAP
-
454832001000 OUTER CLUTCH HUB LOOSEOUTER CLUTCH HUB LOOSE
-
554832000026 PRIMARY GEAR 26TPRIMARY GEAR 26T
-
858132081000 SPRING RETAINER 6,2 X 20 X 3,2SPRING RETAINER 6,2 X 20 X 3,2
-
954632080000 CLUTCH SPRING 2,5X43 8,5WCLUTCH SPRING 2,5X43 8,5W
-
1154832011000 LINING DISC FCC 04LINING DISC FCC 04
-
1254632012000 STEEL DISK 1,2 MMSTEEL DISK 1,2 MM
-
1357532013000 SUPPORTWASHER 22,2X35X3 HARDE.SUPPORTWASHER 22,2X35X3 HARDE.
-
170936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
1856532018000 LOCK WASHERLOCK WASHER
-
230733060150 CLUTCH RIVET DIN7338- 6X15CLUTCH RIVET DIN7338- 6X15
-
2658132026000 DAMPING ELEMENTDAMPING ELEMENT
-
2858132028000 RETAINING PLATERETAINING PLATE
-
2956532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
3050332070000 INNER RING WITH COLLARINNER RING WITH COLLAR
-
5050329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
5254637097200 AXIAL NEEDLE BEARING AXK 1226AXIAL NEEDLE BEARING AXK 1226
-
5350332054051 PRESSURE PIECEPRESSURE PIECE
-
5454832054000 PUSH RODPUSH ROD
-
5554637098200 AXIAL WASHER AS1226 12X26X1AXIAL WASHER AS1226 12X26X1
-
580993012000 CIRCLIP DIN7993-RW12CIRCLIP DIN7993-RW12
-
6159032061044 OUTPUT CYLINDER CPL.OUTPUT CYLINDER CPL.
-
6454732064000 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
6659032066000 PISTON WITH O-RINGPISTON WITH O-RING
-
670770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
700015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
710015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
