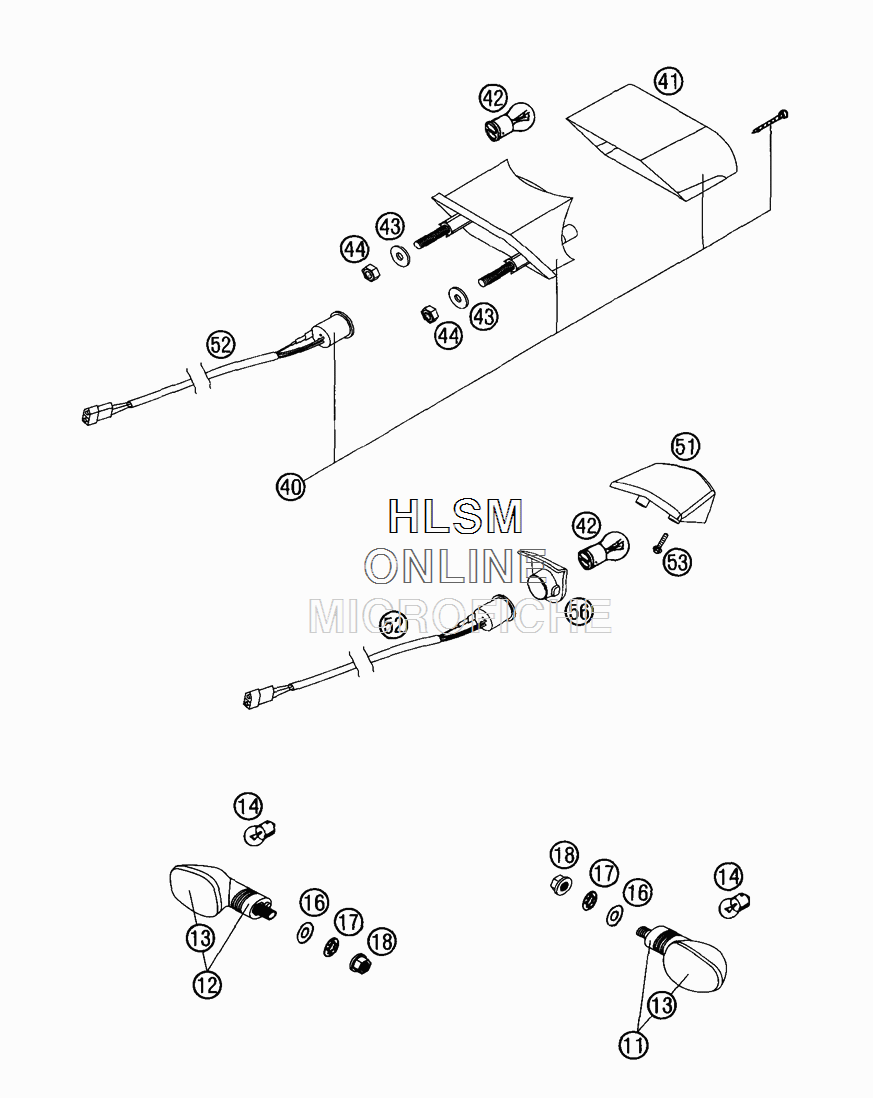

FLASHER W/ REAR LIGHT для Ktm 250 EXC - 2004 года выпуска
-
№АртикулНазвание
-
115841402500030 FLASHER CPL.FRONT L/S REAR R/S (BLACK)FLASHER CPL.FRONT L/S REAR R/S (BLACK)
-
125841402600030 FLASHER CPL.FRONT R/S REAR L/S (BLACK)FLASHER CPL.FRONT R/S REAR L/S (BLACK)
-
1358414028000 FLASHER LENS L/S & R/SFLASHER LENS L/S & R/S
-
1444111015100 BULB 12V 10W (BA15S)BULB 12V 10W (BA15S)
-
160125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
170797100003 LOCK WASHER DIN6797-110,5 ZILOCK WASHER DIN6797-110,5 ZI
-
1858414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
4050314040100 REAR LIGHT CPL.REAR LIGHT CPL.
-
4150314041100 REAR LIGHT LENSREAR LIGHT LENS
-
4258414042000 BULB 12V 21/5W (BAY15S)REINFO.BULB 12V 21/5W (BAY15S)REINFO.
-
430021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
440985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
5150314041200 REAR LIGHT LENSREAR LIGHT LENS
-
5250311076000 WIRING HARNESS REARWIRING HARNESS REAR
-
530017060203 SPECIAL SCREW T60 6X20 WS=6SPECIAL SCREW T60 6X20 WS=6
-
5654811076050 LAMP HOLDERLAMP HOLDER
