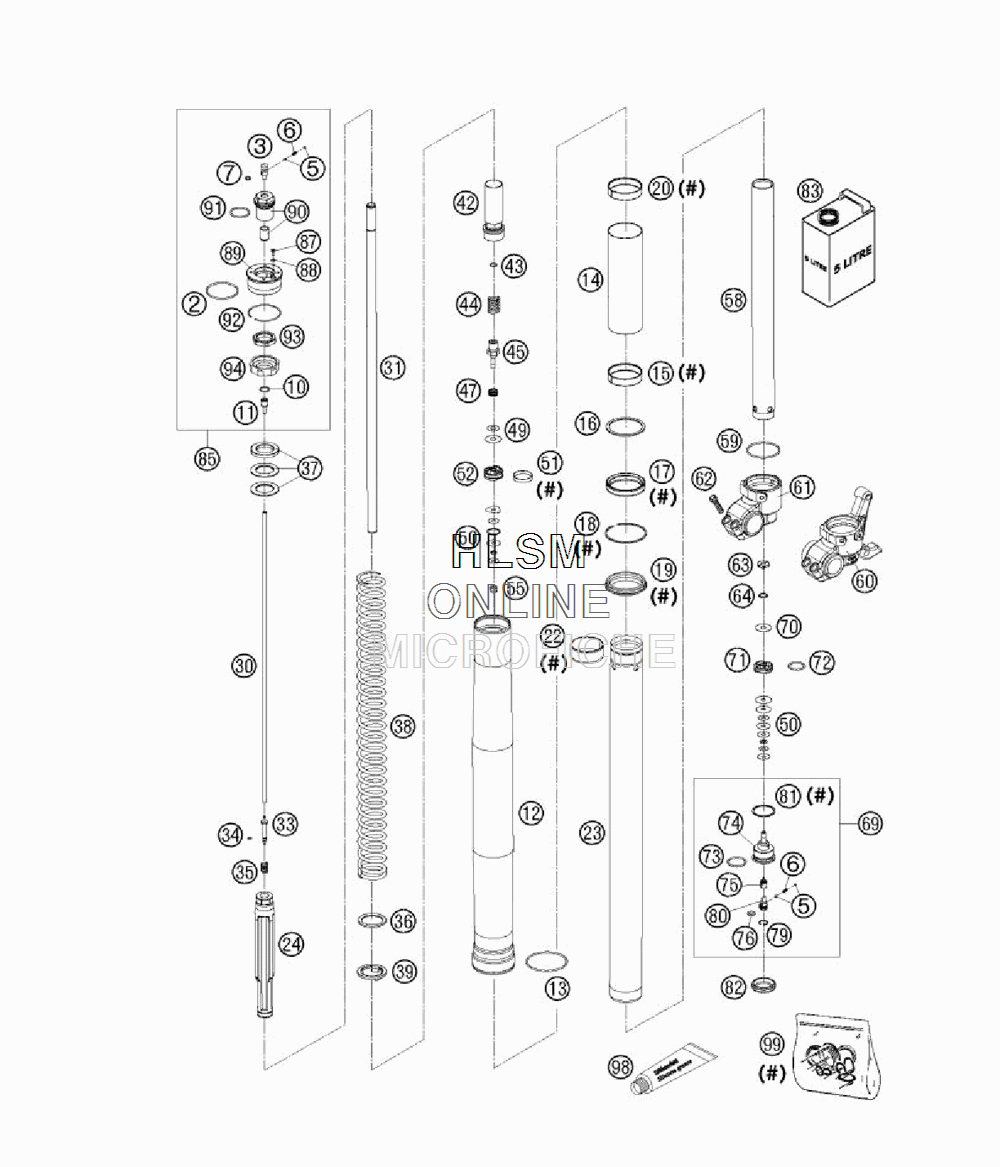

FORK LEGS - 48 для Ktm 450 SMC - 2004 года выпуска
-
№АртикулНазвание
-
246810340 O-RING NBR 45X2O-RING NBR 45X2
-
348600262 KNOB REBOUND ADJUSTERKNOB REBOUND ADJUSTER
-
540540603 STEEL BALL D=3MMSTEEL BALL D=3MM
-
648600028 SPRING D=2,9 L=7,9SPRING D=2,9 L=7,9
-
750180222 O-RING NBR 4X1,5O-RING NBR 4X1,5
-
1048600043 O-RING NBR 12X1,5O-RING NBR 12X1,5
-
1148600263 HOLDER FOR ADJUSTMENT TUBEHOLDER FOR ADJUSTMENT TUBE
-
1248600244 OUTER TUBE L=577MM D=54/60MMOUTER TUBE L=577MM D=54/60MM
-
1348600016 GUIDING RING D=58MMGUIDING RING D=58MM
-
1448600245 SPACER 50,95X0,85X161,5SPACER 50,95X0,85X161,5
-
1548600205 DU-BUSH 48X52X12DU-BUSH 48X52X12
-
1648600013 SUPPORT RING 50 X 57,6 X 1,5SUPPORT RING 50 X 57,6 X 1,5
-
1748600347 OIL SEAL RING 48X57,8X9,5OIL SEAL RING 48X57,8X9,5
-
1848600070 LOCK WASHER SB58LOCK WASHER SB58
-
1948600348 DUST STRIPPER D=48DUST STRIPPER D=48
-
2048600236 GUIDING RING 48X51X12GUIDING RING 48X51X12
-
2248600204 DU-BUS 47X49X20DU-BUS 47X49X20
-
2348600307 INNER TUBE D=48MM L=595 TITANINNER TUBE D=48MM L=595 TITAN
-
2448600241S HYDR.STOP L=200MM D=31,9 CPL.HYDR.STOP L=200MM D=31,9 CPL.
-
3048600094 ADJUSTMENT TUBE L=492MMADJUSTMENT TUBE L=492MM
-
3148600315 PISTON ROD D=14 L=526 M11X1PISTON ROD D=14 L=526 M11X1
-
3348600189 NEEDLE REBOUNDNEEDLE REBOUND
-
3448600046 O-RING NBR 3X1,5O-RING NBR 3X1,5
-
3548600033 SPRING REBOUND NEEDLE C=4N/MMSPRING REBOUND NEEDLE C=4N/MM
-
3648600113 WASHER 32X42X2,5WASHER 32X42X2,5
-
3748600036 SPACER 42X26,5X2,5SPACER 42X26,5X2,5
-
3748600037 SPACER 42X26,5X5SPACER 42X26,5X5
-
3748600053 SPACER 42X26,5X1,5SPACER 42X26,5X1,5
-
3891410027S SPRING 4,4 N/MM SET D=5,1MMSPRING 4,4 N/MM SET D=5,1MM
-
3891410028S SPRING 4,6 N/MM SET D=5,1MMSPRING 4,6 N/MM SET D=5,1MM
-
3891410029S SPRING 4,8 N/MM SET D=5,25MMSPRING 4,8 N/MM SET D=5,25MM
-
3948600021 INTERM. RING 26,2 X 43 X 3INTERM. RING 26,2 X 43 X 3
-
4248600200S SCREW SLEEVE M29,3X1 L=65 CPL.SCREW SLEEVE M29,3X1 L=65 CPL.
-
4348600239 O-RING NBR 8X1,25O-RING NBR 8X1,25
-
4448600261 REBOUND SPRING 34,5X15X11REBOUND SPRING 34,5X15X11
-
4548600203 TAB REBOUND D=3TAB REBOUND D=3
-
4735480377 SPRING CHECK VALVE D=0,5SPRING CHECK VALVE D=0,5
-
4948600062 CHECK VALVE 8X24X0,1CHECK VALVE 8X24X0,1
-
4948600068 CHECK VALVE 8X18X0,1CHECK VALVE 8X18X0,1
-
4948600215 CHECK VALVE 8X20X0,1CHECK VALVE 8X20X0,1
-
4948600216 CHECK VALVE 8X22X0,1CHECK VALVE 8X22X0,1
-
5040540402 SHIM 6X16X0,1SHIM 6X16X0,1
-
5040540403 SHIM 6X18X0,1SHIM 6X18X0,1
-
5040540405 SHIM 6X14X0,15SHIM 6X14X0,15
-
5040540406 SHIM 6X16X0,15SHIM 6X16X0,15
-
5040540414 SHIM 6X16X0,25SHIM 6X16X0,25
-
5040540415 SHIM 6X18X0,25SHIM 6X18X0,25
-
5040540447 SHIM 6X10X0,3SHIM 6X10X0,3
-
5040541391 SHIM 6X11X0,3SHIM 6X11X0,3
-
5048600063 SHIM 6X24X0,1SHIM 6X24X0,1
-
5048600064 SHIM 6X22X0,1SHIM 6X22X0,1
-
5048600065 SHIM 6X20X0,1SHIM 6X20X0,1
-
5048600069 SHIM 6X20X0,15SHIM 6X20X0,15
-
5048600116 SHIM 6X24X0,1 DELTASHIM 6X24X0,1 DELTA
-
5048600212 PRESSURE-RING 20X16,25X0,20PRESSURE-RING 20X16,25X0,20
-
5148600060 PISTON RING 5X1X84PISTON RING 5X1X84
-
5248600042 PISTON REBOUND D=27,7PISTON REBOUND D=27,7
-
5540540486 NUT M6X0,5 REBOUNDNUT M6X0,5 REBOUND
-
5848600081 TUBE 29,3X1X390 D=8,5MMTUBE 29,3X1X390 D=8,5MM
-
5948600048 O-RING NBR 46 X 2O-RING NBR 46 X 2
-
6048600265 AXLE CLAMP L/S SMSAXLE CLAMP L/S SMS
-
6148600266 AXLE CLAMP R/S SMSAXLE CLAMP R/S SMS
-
620015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
620015080353 HH COLLAR SCREW M 8X35 WS=10HH COLLAR SCREW M 8X35 WS=10
-
6348600163 CHECK VALVE NUT M6X0,5 D=2CHECK VALVE NUT M6X0,5 D=2
-
6448600202 SPRING CHECK VALVE D=0,7SPRING CHECK VALVE D=0,7
-
6948600264S TAP COMPRESSION CPL.TAP COMPRESSION CPL.
-
7048600061 CHECK VALVE 8X24X0,4CHECK VALVE 8X24X0,4
-
7148600047 PISTON COMPRESSION D=27,9PISTON COMPRESSION D=27,9
-
7246811499 O-RING NBR 21X2O-RING NBR 21X2
-
7335480320 O-RING NBR 24X2O-RING NBR 24X2
-
7448600264 TAP COMPRESSION D=3MMTAP COMPRESSION D=3MM
-
7548600190 NEEDLE COMPRESSIONNEEDLE COMPRESSION
-
7648600049 O-RING NBR 8X2O-RING NBR 8X2
-
7948600051 LOCK WASHER RB12LOCK WASHER RB12
-
8048600034 COMPRESSION ADJ. SCREWCOMPRESSION ADJ. SCREW
-
8148600004 COPPER WASHER 29,5X33,5X1COPPER WASHER 29,5X33,5X1
-
8248600141 RUBBER CAP D=35MMRUBBER CAP D=35MM
-
8348600211S1 FORK OIL SAE 5FORK OIL SAE 5
-
8548600074S2 PRE-LOAD ADJUSTER CPL. M51X1,5PRE-LOAD ADJUSTER CPL. M51X1,5
-
8748600076 VENT SCREW M4X8VENT SCREW M4X8
-
8848600046 O-RING NBR 3X1,5O-RING NBR 3X1,5
-
8948600074 SCREW CAP M51X1,5SCREW CAP M51X1,5
-
9048600267S ADAPTOR ADJUST.KNOB NAT.+BUSHADAPTOR ADJUST.KNOB NAT.+BUSH
-
9148600077 O-RING NBR 26X2O-RING NBR 26X2
-
9246810010 CIRCLIP 49X1,5CIRCLIP 49X1,5
-
9348600072 LOCKNUTLOCKNUT
-
9448600071 SUPPORT RING FOR SPRINGSUPPORT RING FOR SPRING
-
98T511 SILICONE GREASE F. DUST STRIP.SILICONE GREASE F. DUST STRIP.
-
99R14007 REPAIR-KIT GASKET 4860 MXMAREPAIR-KIT GASKET 4860 MXMA
