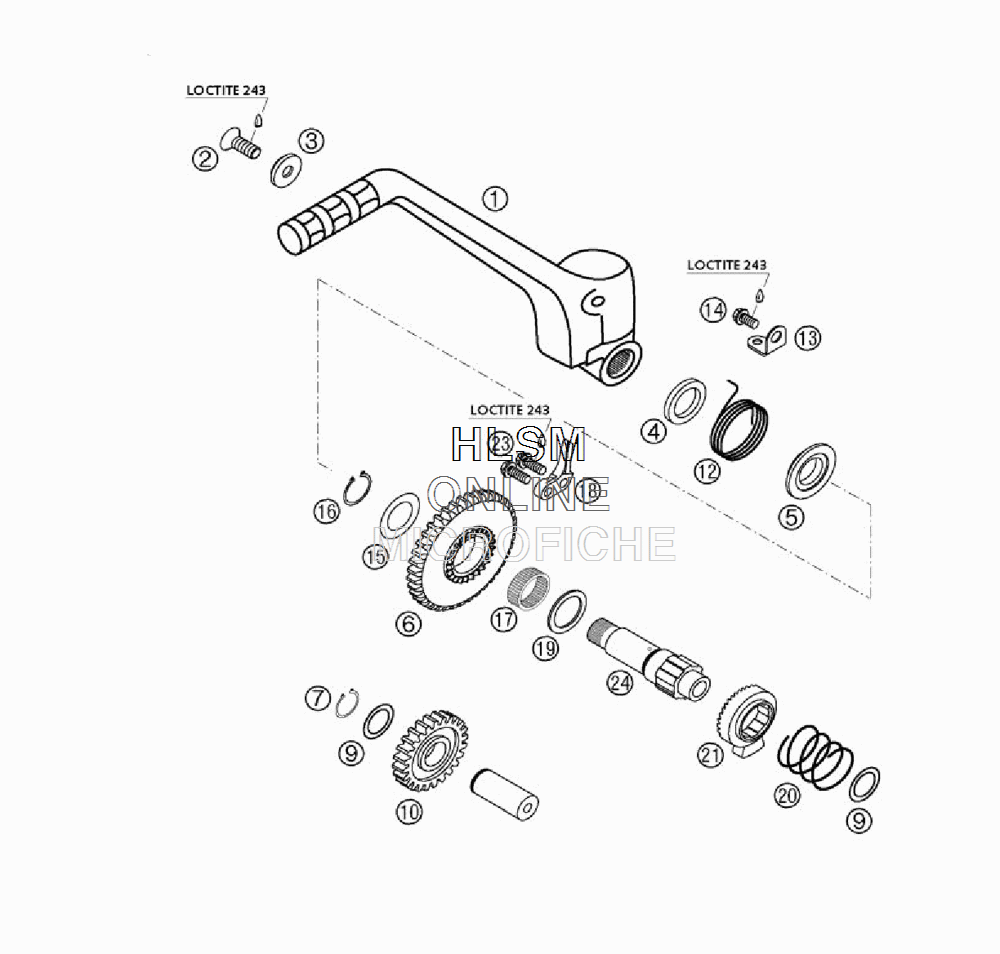

KICKSTARTER для Ktm 450 SMC - 2004 года выпуска
-
№АртикулНазвание
-
154833070044 KICKSTARTER CPL.KICKSTARTER CPL.
-
254610052000 SPROCKET SCREW-AH M8X20 WS=6SPROCKET SCREW-AH M8X20 WS=6
-
354633037000 WASHER 8MM GALVANIZEDWASHER 8MM GALVANIZED
-
40760193070 SHAFT SEAL RING 19X30X7 BSHAFT SEAL RING 19X30X7 B
-
559033055000 DRIVING HUBDRIVING HUB
-
659033051039 KICKSTARTER GEAR 39-TKICKSTARTER GEAR 39-T
-
70471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
90988172405 SHIM WASHER DIN0988-17X24X0,5SHIM WASHER DIN0988-17X24X0,5
-
1059033053000 INTERMEDIATE GEAR 24-TINTERMEDIATE GEAR 24-T
-
1259033054000 KICKSTARTER SPRINGKICKSTARTER SPRING
-
1359033074000 SPRING HANGERSPRING HANGER
-
140015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
1559033080000 SHIM 20X32X1SHIM 20X32X1
-
160471190120 CIRCLIP DIN0471-19X1,2CIRCLIP DIN0471-19X1,2
-
170405222610 NEEDLE BEARING K 22X26X10 ANEEDLE BEARING K 22X26X10 A
-
1859033069000 BUMP PARTBUMP PART
-
1958033031000 STOP DISK 22,2 X 30 X 1,5STOP DISK 22,2 X 30 X 1,5
-
2058033028000 RATCHET GEAR SPRING 1,2 MMRATCHET GEAR SPRING 1,2 MM
-
2159033052000 RATCHET GEAR KICKSTARTERRATCHET GEAR KICKSTARTER
-
230015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
2459033050000 KICKSTARTER SHAFT RACINGKICKSTARTER SHAFT RACING
