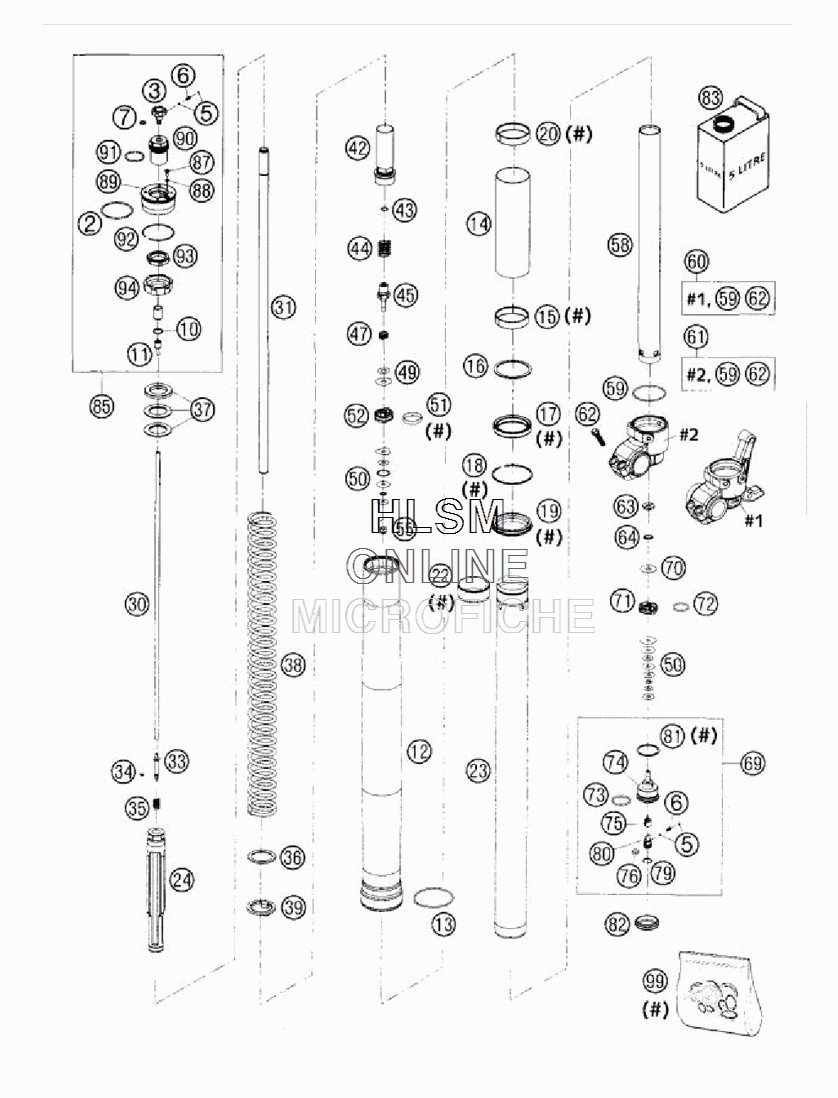

FORK LEGS - 48 для Ktm 450 SX RFS - 2004 года выпуска
-
№АртикулНазвание
-
246810340 O-RING NBR 45X2O-RING NBR 45X2
-
348600018 KNOB REBOUNG ADJUSTERKNOB REBOUNG ADJUSTER
-
540540603 STEEL BALL D=3MMSTEEL BALL D=3MM
-
648600028 SPRING D=2,9 L=7,9SPRING D=2,9 L=7,9
-
748600044 O-RING NBR 6X1,5O-RING NBR 6X1,5
-
1048600043 O-RING NBR 12X1,5O-RING NBR 12X1,5
-
1148600019 HOLDER F.ADJUSTMENT TUBE D=4MMHOLDER F.ADJUSTMENT TUBE D=4MM
-
1248600244 OUTER TUBE L=577MM D=54/60MMOUTER TUBE L=577MM D=54/60MM
-
1348600016 GUIDING RING D=58MMGUIDING RING D=58MM
-
1448600245 SPACER 50,95X0,85X161,5SPACER 50,95X0,85X161,5
-
1548600205 DU-BUSH 48X52X12DU-BUSH 48X52X12
-
1648600013 SUPPORT RING 50 X 57,6 X 1,5SUPPORT RING 50 X 57,6 X 1,5
-
1748600344 OIL SEAL RING 48X57,8X9,5OIL SEAL RING 48X57,8X9,5
-
1848600070 LOCK WASHER SB58LOCK WASHER SB58
-
1948600345 DUST STRIPPER D=48DUST STRIPPER D=48
-
2048600236 GUIDING RING 48X51X12GUIDING RING 48X51X12
-
2248600204 DU-BUS 47X49X20DU-BUS 47X49X20
-
2348600240 INNER TUBE D=48 L=595INNER TUBE D=48 L=595
-
2448600241S HYDR.STOP L=200MM D=31,9 CPL.HYDR.STOP L=200MM D=31,9 CPL.
-
3048600092 ADJUSTMENT TUBE L=517MMADJUSTMENT TUBE L=517MM
-
3148600251 PISTONROD D=14 L=551 M11X1PISTONROD D=14 L=551 M11X1
-
3348600189 NEEDLE REBOUNDNEEDLE REBOUND
-
3448600046 O-RING NBR 3X1,5O-RING NBR 3X1,5
-
3548600033 SPRING REBOUND NEEDLE C=4N/MMSPRING REBOUND NEEDLE C=4N/MM
-
3648600113 WASHER 32X42X2,5WASHER 32X42X2,5
-
3748600036 SPACER 42X26,5X2,5SPACER 42X26,5X2,5
-
3748600037 SPACER 42X26,5X5SPACER 42X26,5X5
-
3748600053 SPACER 42X26,5X1,5SPACER 42X26,5X1,5
-
3891410011S SPRING 3,6N/MM SETSPRING 3,6N/MM SET
-
3891410012S SPRING 3,8N/MM SET D=4,9MMSPRING 3,8N/MM SET D=4,9MM
-
3891410013S SPRING 4,0N/MM SET D=5.0MMSPRING 4,0N/MM SET D=5.0MM
-
3891410014S SPRING 4,2N/MM SET D=5,0MMSPRING 4,2N/MM SET D=5,0MM
-
3891410015S SPRING 4,4N/MM SET D=5,1MMSPRING 4,4N/MM SET D=5,1MM
-
3891410017S SPRING 4,8N/MM SETSPRING 4,8N/MM SET
-
3948600021 INTERM. RING 26,2 X 43 X 3INTERM. RING 26,2 X 43 X 3
-
4248600196S SCREW SLEEVE M29,3X1 L=90 CPL.SCREW SLEEVE M29,3X1 L=90 CPL.
-
4348600239 O-RING NBR 8X1,25O-RING NBR 8X1,25
-
4448600192 REBOUND SPRING D=15MM L=34,5MMREBOUND SPRING D=15MM L=34,5MM
-
4548600203 TAB REBOUND D=3 03TAB REBOUND D=3 03
-
4735480377 SPRING CHECK VALVE D=0,5SPRING CHECK VALVE D=0,5
-
4948600062 CHECK VALVE 8X24X0,1CHECK VALVE 8X24X0,1
-
4948600214 SHIM 8X16X0,1SHIM 8X16X0,1
-
4948600215 CHECK VALVE 8X20X0,1CHECK VALVE 8X20X0,1
-
4948600350 CHECK VALVE 8X16X0,15CHECK VALVE 8X16X0,15
-
4948600351 CHECK VALVE 8X12X0,1CHECK VALVE 8X12X0,1
-
4948600352 CHECK VALVE 8X11X0,4CHECK VALVE 8X11X0,4
-
4948600346 SHIM 8X11X0,2SHIM 8X11X0,2
-
5040540400 SHIM 6X12X0,1SHIM 6X12X0,1
-
5040540401 SHIM 6X14X0,1SHIM 6X14X0,1
-
5040540402 SHIM 6X16X0,1SHIM 6X16X0,1
-
5040540403 SHIM 6X18X0,1SHIM 6X18X0,1
-
5040540414 SHIM 6X16X0,25SHIM 6X16X0,25
-
5040540415 SHIM 6X18X0,25SHIM 6X18X0,25
-
5040540450 SHIM 6X9,5X0,3SHIM 6X9,5X0,3
-
5040541383 SHIM 6X11X0,1SHIM 6X11X0,1
-
5048600063 SHIM 6X24X0,1SHIM 6X24X0,1
-
5048600064 SHIM 6X22X0,1SHIM 6X22X0,1
-
5048600065 SHIM 6X20X0,1SHIM 6X20X0,1
-
5048600116 SHIM 6X24X0,1 DELTASHIM 6X24X0,1 DELTA
-
5048600217 BACKPLATE 6X10X0,25BACKPLATE 6X10X0,25
-
5048600325 SHIM 6X13X0,1SHIM 6X13X0,1
-
5048600327 SHIM 6X15X0,1SHIM 6X15X0,1
-
5048600329 SHIM 6X17X0,1SHIM 6X17X0,1
-
5048600331 SHIM 6X19X0,1SHIM 6X19X0,1
-
5148600060 PISTON RING 5X1X84PISTON RING 5X1X84
-
5248600042 PISTON REBOUND D=27,7PISTON REBOUND D=27,7
-
5540540486 NUT M6X0,5 REBOUNDNUT M6X0,5 REBOUND
-
5848600081 TUBE 29,3X1X390 D=8,5MMTUBE 29,3X1X390 D=8,5MM
-
5948600048 O-RING NBR 46 X 2O-RING NBR 46 X 2
-
6048600237S AXLE CLAMP L/S CPL. USD48 04AXLE CLAMP L/S CPL. USD48 04
-
6148600238S AXLE CLAMP R/S CPL. USD48 04AXLE CLAMP R/S CPL. USD48 04
-
620015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
6348600163 CHECK VALVE NUT M6X0,5 D=2CHECK VALVE NUT M6X0,5 D=2
-
6448600202 SPRING CHECK VALVE D=0,7SPRING CHECK VALVE D=0,7
-
6948600152S1 TAP COMPRESSION CPL. 03TAP COMPRESSION CPL. 03
-
7048600061 CHECK VALVE 8X24X0,4CHECK VALVE 8X24X0,4
-
7148600047 PISTON COMPRESSION D=27,9PISTON COMPRESSION D=27,9
-
7246811499 O-RING NBR 21X2O-RING NBR 21X2
-
7335480320 O-RING NBR 24X2O-RING NBR 24X2
-
7448600152 TAP COMPRESSIONTAP COMPRESSION
-
7548600190 NEEDLE COMPRESSIONNEEDLE COMPRESSION
-
7648600049 O-RING NBR 8X2O-RING NBR 8X2
-
7948600051 LOCK WASHER RB12LOCK WASHER RB12
-
8048600034 COMPRESSION ADJ. SCREWCOMPRESSION ADJ. SCREW
-
8148600004 COPPER WASHER 29,5X33,5X1COPPER WASHER 29,5X33,5X1
-
8248600141 RUBBER CAP D=35MMRUBBER CAP D=35MM
-
8348600211S1 FORK OIL SAE 5FORK OIL SAE 5
-
8548600075S PRE-LOAD ADJUSTER CPL.(1 PC.)PRE-LOAD ADJUSTER CPL.(1 PC.)
-
8748600076 VENT SCREW M4X8VENT SCREW M4X8
-
8848600046 O-RING NBR 3X1,5O-RING NBR 3X1,5
-
8948600075 SCREW CAP M51X1,5SCREW CAP M51X1,5
-
9048600073 ADAPTER FOR REB. MENDINGADAPTER FOR REB. MENDING
-
9148600077 O-RING NBR 26X2O-RING NBR 26X2
-
9246810010 CIRCLIP 49X1,5CIRCLIP 49X1,5
-
9348600072 LOCKNUTLOCKNUT
-
9448600071 SUPPORT RING FOR SPRINGSUPPORT RING FOR SPRING
-
99R14007 REPAIR-KIT GASKET 4860 MXMAREPAIR-KIT GASKET 4860 MXMA
