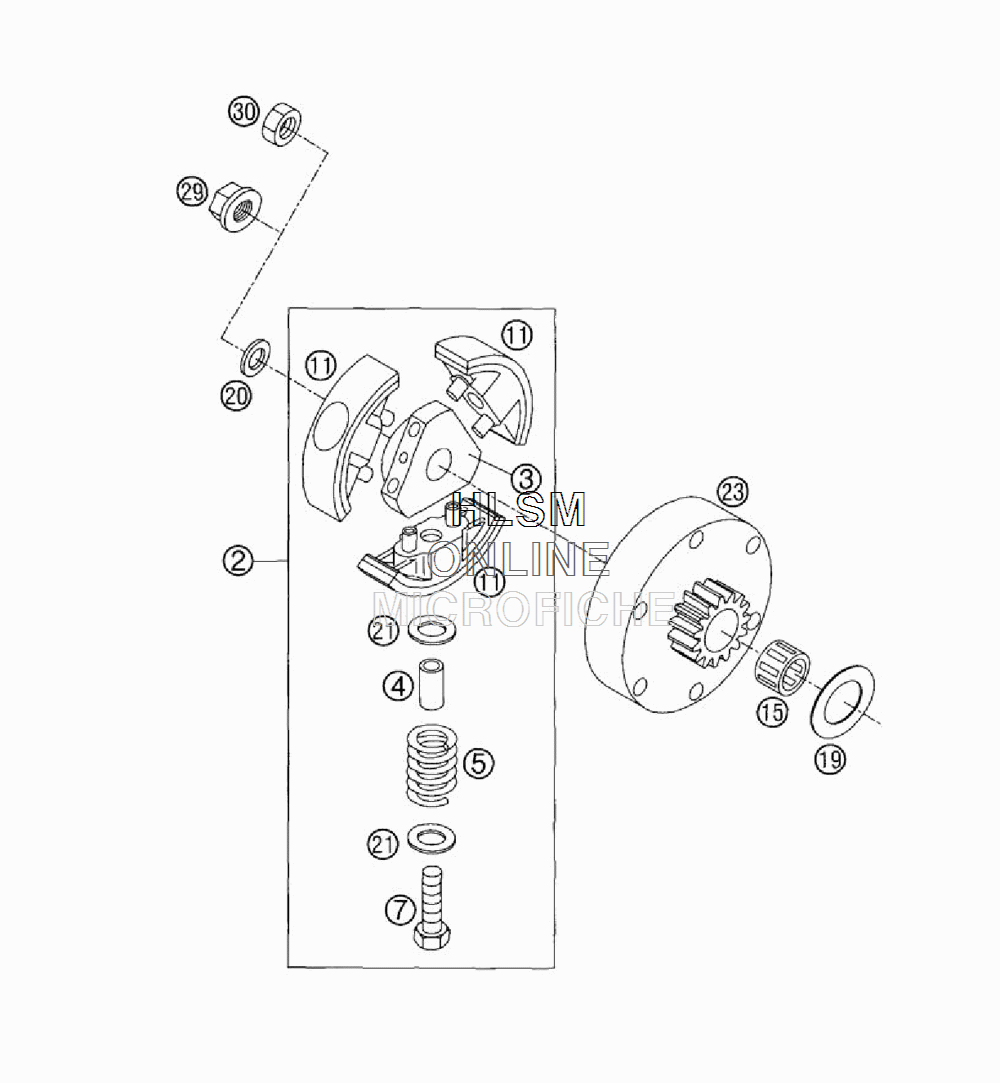

CLUTCH для Ktm 50 Sr Adventure - 2004 года выпуска
-
№АртикулНазвание
-
245132502044 CLUTCH CPL.CLUTCH CPL.
-
345132002000 CLUTCH HUBCLUTCH HUB
-
445132004000 SPACER 6X8X19SPACER 6X8X19
-
545132005100 CLUTCH SPRINGCLUTCH SPRING
-
70933060253 HH SCREW DIN0933-M 6X25HH SCREW DIN0933-M 6X25
-
1145132011100 CLUTCH BLOCKCLUTCH BLOCK
-
1545132015000 NEEDLE BEARING 15X18X17NEEDLE BEARING 15X18X17
-
1947033043000 STOP DISC 15X25X0,5STOP DISC 15X25X0,5
-
1945132020060 SPACER WASHER 15X25X0,6SPACER WASHER 15X25X0,6
-
1947033040000 STOP DISC 15X25X1STOP DISC 15X25X1
-
2045132020000 WASHER 10,4X16,8X0,4WASHER 10,4X16,8X0,4
-
2145132120000 WASHER 8X15,3X0,5WASHER 8X15,3X0,5
-
2345132023016 CLUTCH DRUM 16-TCLUTCH DRUM 16-T
-
3045130029000 SPECIAL NUT 10X1,25X8SPECIAL NUT 10X1,25X8
