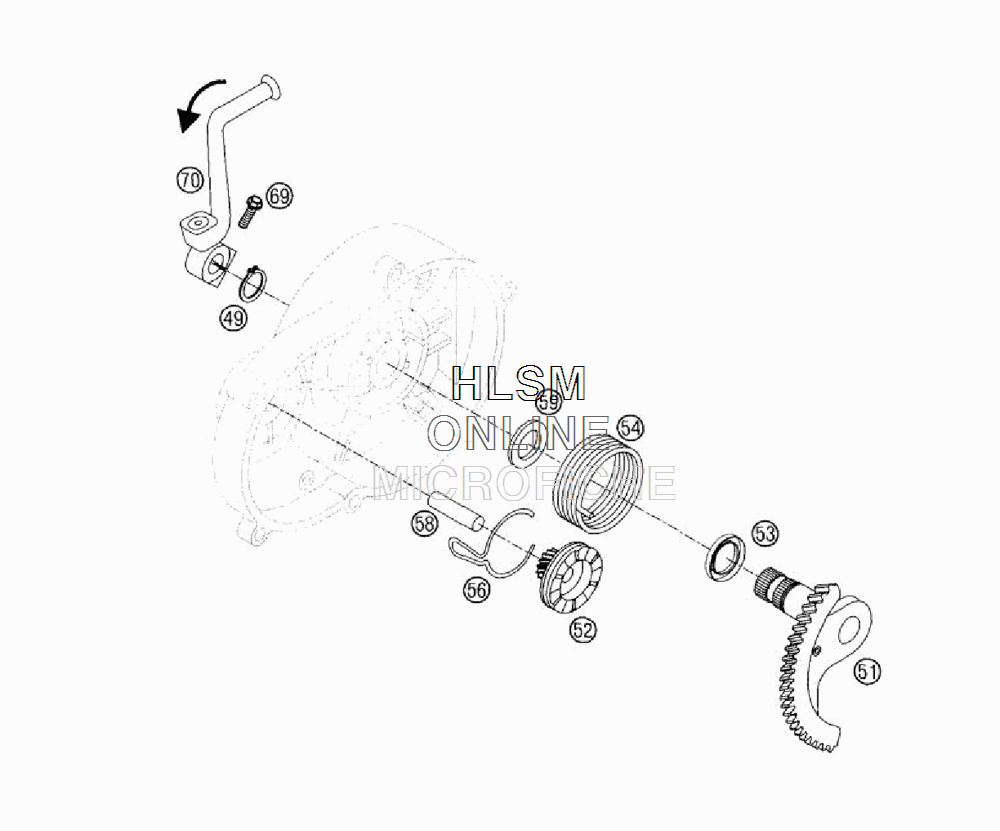

KICKSTARTER для Ktm 50 Sr Adventure - 2004 года выпуска
-
№АртикулНазвание
-
490471150010 CIRCLIP DIN0471-15X1CIRCLIP DIN0471-15X1
-
5145133050100 KICKSTARTER SHAFTKICKSTARTER SHAFT
-
5245133052000 KICKSTARTER SLEEVEKICKSTARTER SLEEVE
-
5345135056000 OIL SEAL RING 16X22X4OIL SEAL RING 16X22X4
-
5445133054000 KICKSTARTER SPRINGKICKSTARTER SPRING
-
5645133056000 KICKSTARTER SLEEVE SPRINGKICKSTARTER SLEEVE SPRING
-
5845133058000 PIN FOR KICKSTARTER SLEE.PIN FOR KICKSTARTER SLEE.
-
5947033041000 STOP DISC 16X26X1STOP DISC 16X26X1
-
690015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
7045133070000 KICKSTARTERKICKSTARTER
Все узлы модели:
- CARBURETOR DELLORTO 14PHVA DS
- CLUTCH
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECAL
- ENGINE CASE
- EXHAUST PIPE
- FENDER W/ MASK
- FRAME W/ SUB FRAME
- FRONT BRAKE CALIPER
- FRONT BRAKE CYLINDER
- FRONT FORK
- FRONT WHEEL
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM
- • KICKSTARTER
- REAR BRAKE
- REAR WHEEL
- SHOCK ABSORBER
- SPECIAL TOOLS
- TANK - SEAT - COVER
- TRANSMISSION - COUNTERSHAFT
