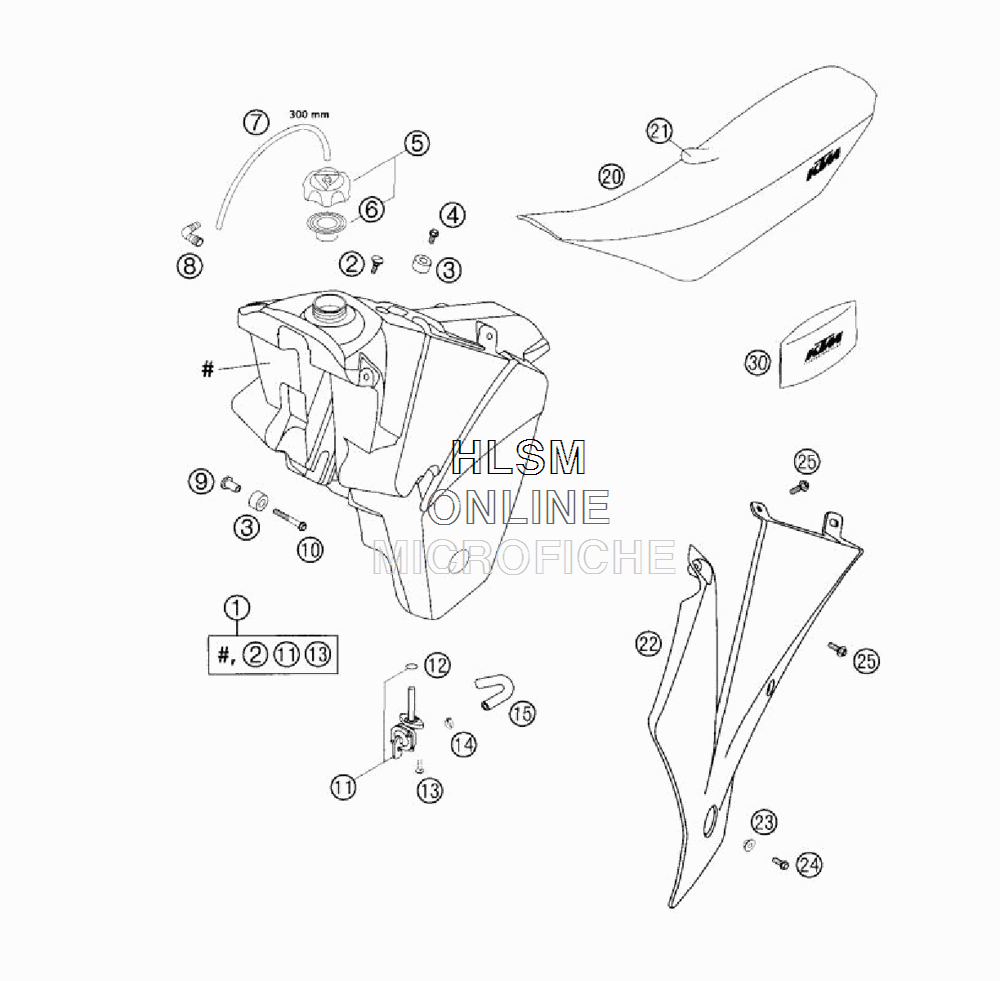

TANK - SEAT - COVER для Ktm 525 SMR - 2004 года выпуска
-
№АртикулНазвание
-
15900711300004 FUEL TANK CPL. SX 7,5LFUEL TANK CPL. SX 7,5L
-
250307011000 SCREW SEAT FASTENING D=6X23/18SCREW SEAT FASTENING D=6X23/18
-
350307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
40015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
559007008044 FILLER CAP CPL. WITH VALVEFILLER CAP CPL. WITH VALVE
-
659007009000 GASKET FOR FILLER CAP HIGHGASKET FOR FILLER CAP HIGH
-
731007107001 PVC-HOSE 6X9 MM PER METREPVC-HOSE 6X9 MM PER METRE
-
851030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
959003001055 SUPORT BUSHING TANKROLLERSUPORT BUSHING TANKROLLER
-
100015060453 HH COLLAR SCREW M 6X45 WS=8HH COLLAR SCREW M 6X45 WS=8
-
1150307005000 GAS COCK MIKUNI ON/OFF (CK-81)GAS COCK MIKUNI ON/OFF (CK-81)
-
120770130023 O-RING 13,00X2,30O-RING 13,00X2,30
-
130017060203 SPECIAL SCREW T60 6X20 WS=6SPECIAL SCREW T60 6X20 WS=6
-
1458031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
1559007016000 FUEL HOSE 7,5X13MMFUEL HOSE 7,5X13MM
-
2054807040000 SEAT BLACK WITH KTM-LOGOSEAT BLACK WITH KTM-LOGO
-
2054807040300 SEAT HIGH 20MMSEAT HIGH 20MM
-
2154807040050 SEAT COVER BLACKSEAT COVER BLACK
-
225030815000004 SPOILER L/S ORANGESPOILER L/S ORANGE
-
225030815100004 SPOILER R/S ORANGESPOILER R/S ORANGE
-
2350308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
240015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
250017060204 SPECIAL SCR. T60 6X20 ALU WS=6SPECIAL SCR. T60 6X20 ALU WS=6
-
3059029099000 TOOL SETTOOL SET
