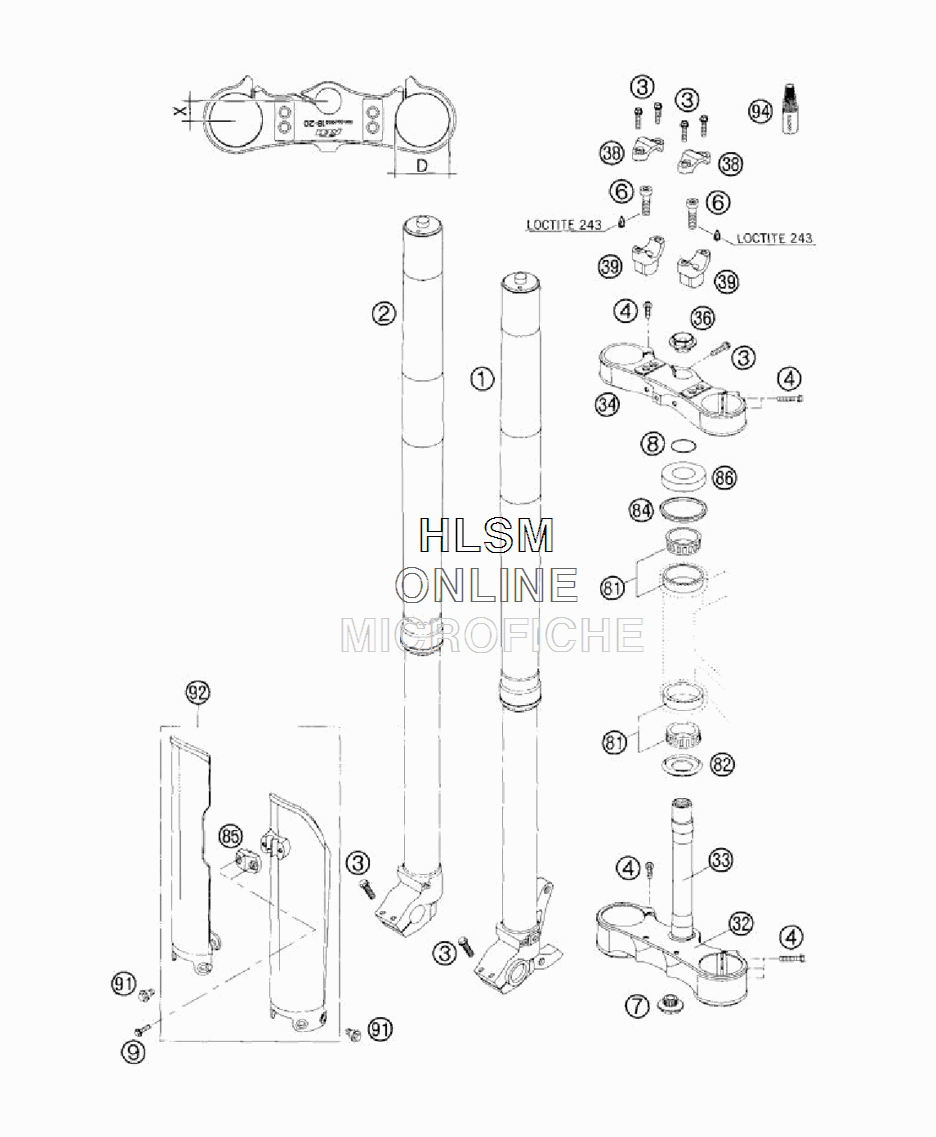

FRONT FORK для Ktm 125 SX TYLA RATTRAY - 2005 года выпуска

№

Артикул

Название
1

14187A01LS FORK LEG L/S WP48

FORK LEG L/S WP48

0 ₽
2

14187A01RS FORK LEG R/S WP48

FORK LEG R/S WP48

0 ₽
3

0015080253 HH COLLAR SCREW M 8X25 WS=10

HH COLLAR SCREW M 8X25 WS=10

300 ₽
4

0015080353 HH COLLAR SCREW M 8X35 WS=10

HH COLLAR SCREW M 8X35 WS=10

410 ₽
6

0912100356 AHSCREW DIN6912-M10X35 10.9

AHSCREW DIN6912-M10X35 10.9

880 ₽
7

54801036100 STE.HEAD SCR. M20X1,5 WS=27 SL (SELF-LOCKING)

STE.HEAD SCR. M20X1,5 WS=27 SL (SELF-LOCKING)

3 390 ₽
8

0770025035 O-RING 25X3,55 NBR70

O-RING 25X3,55 NBR70

150 ₽
9

0017060204 EJOT PT SCREW K60X20 ALL/ WS=6

EJOT PT SCREW K60X20 ALL/ WS=6

740 ₽
32

59401031019 BOTTOM TRIPLE CLAMP D=60MM

BOTTOM TRIPLE CLAMP D=60MM

68 450 ₽
33

59401033000 FORK TUBE L=237MM

FORK TUBE L=237MM

22 460 ₽
34

59401034019 TOP TRIPLE CLAMP D=54MM

TOP TRIPLE CLAMP D=54MM

58 380 ₽
36

54801036000 STEER.HEAD SCREW M20X1,5 WS=27

STEER.HEAD SCREW M20X1,5 WS=27

2 840 ₽
38

59401038000 HANDLEBAR CLAMP 28MM

HANDLEBAR CLAMP 28MM

6 750 ₽
39

59401039032 HANDLEB.SUPP D=28MM H=32MM

HANDLEB.SUPP D=28MM H=32MM

9 840 ₽
39

59401039037 HANDLEB.SUPP. D=28MM H=37MM

HANDLEB.SUPP. D=28MM H=37MM

9 230 ₽
39

59401039042 HANDLEB.SUPP. D=28MM H=42MM

HANDLEB.SUPP. D=28MM H=42MM

9 790 ₽
81

54201081000 TAPERED ROLLER BEARING CPL.

TAPERED ROLLER BEARING CPL.

13 380 ₽
82

54601084100 O-RING SUPPORT W. SEALING LIP

O-RING SUPPORT W. SEALING LIP

4 940 ₽
84

54601184000 STEARING HEAD GASKET TOP

STEARING HEAD GASKET TOP

1 900 ₽
85

59001085100 CLAMP F.SPEED.CABLE D=6MM

CLAMP F.SPEED.CABLE D=6MM

640 ₽
86

54201086000 STEERING HEAD COVER

STEERING HEAD COVER

2 270 ₽
91

59001092050 SPECIAL SCREW M6X12,5 WS=8

SPECIAL SCREW M6X12,5 WS=8

410 ₽
92

5900109400030 FORK PROTECT L/S+R/S BLACK

FORK PROTECT L/S+R/S BLACK

10 550 ₽
94

6899785 LOCTITE 243 BLUE 6CCM

LOCTITE 243 BLUE 6CCM

7 570 ₽
