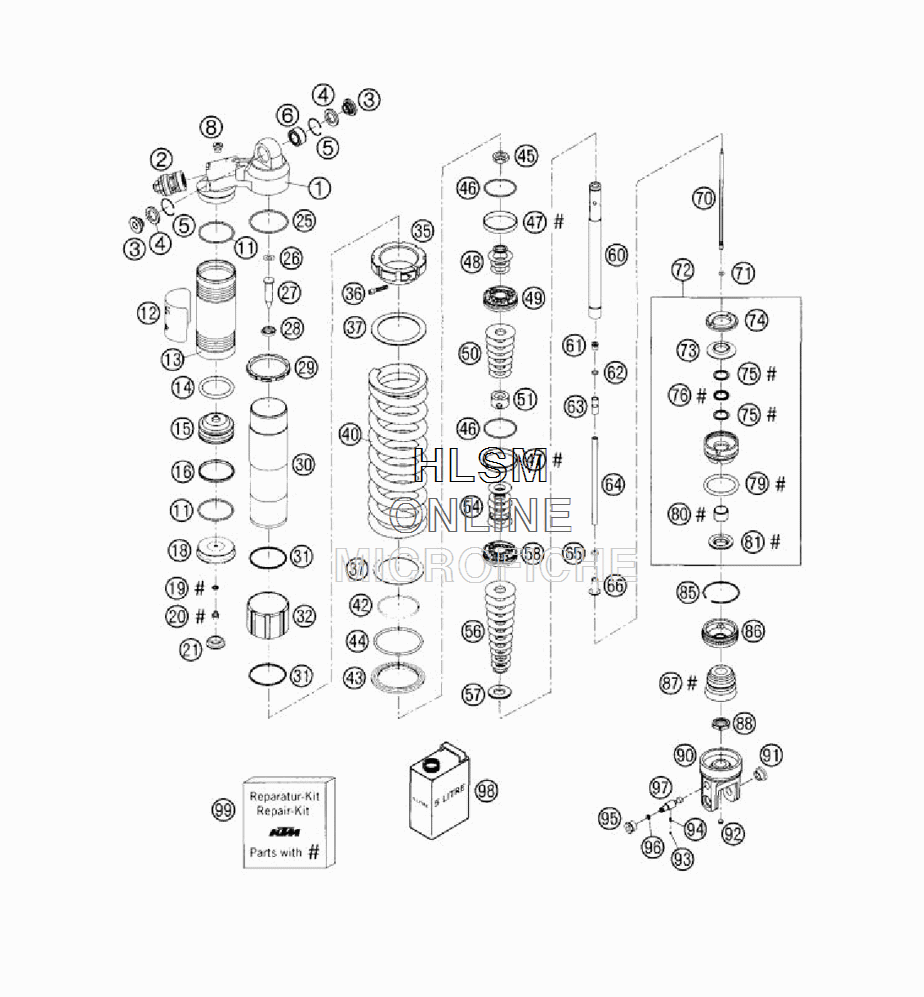

MONOSHOCK - DISASSEMBLED для Ktm 125 SX TYLA RATTRAY - 2005 года выпуска
-
№АртикулНазвание
-
150180429 MONOSHOCK TOP H=30,5 M54X1MONOSHOCK TOP H=30,5 M54X1
-
250180213S6 DCC-COMPRDAMP CONTROL CPL.DCC-COMPRDAMP CONTROL CPL.
-
346180007 ADAPTOR BUSH KGW 12X14ADAPTOR BUSH KGW 12X14
-
446180003 OIL SEAL KGW0=25OIL SEAL KGW0=25
-
550180168 WASHER KGW D=25WASHER KGW D=25
-
650180005 BUSHING KGW 1525 HDBUSHING KGW 1525 HD
-
850180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
1146810016 O-RING NBR 48X2O-RING NBR 48X2
-
1252000041 WP CAUTION (PDS KTM) 58X33WP CAUTION (PDS KTM) 58X33
-
1350180438 RESERV. SCREW L=120 D=52 GOLDRESERV. SCREW L=120 D=52 GOLD
-
1446180014 O-RING VITON41X5O-RING VITON41X5
-
1546180002 SEPARATION PISTON D=52; H=32SEPARATION PISTON D=52; H=32
-
1646180015 PISTON RING 3,9X1,5X156PISTON RING 3,9X1,5X156
-
1850180344 RESERVOIR CAP D=58RESERVOIR CAP D=58
-
1946810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
2036120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
2146811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
2550180097 O-RING 52X2O-RING 52X2
-
2650180177 WASHER 16X8,2X0,6WASHER 16X8,2X0,6
-
2750180444 NEEDLE D=11,4 D=7,6 L=57NEEDLE D=11,4 D=7,6 L=57
-
2850180437 SCREW CAP M20X1 D=11,5 H=5SCREW CAP M20X1 D=11,5 H=5
-
2950180270 LOCK WASHERLOCK WASHER
-
3050180430 TUBE PDS L=198TUBE PDS L=198
-
3150180133 CIRCLIP 5OX1,5CIRCLIP 5OX1,5
-
3250180081 SPRING GUIDANCE L=40SPRING GUIDANCE L=40
-
3550180433 SPRING RETAINER M56X1SPRING RETAINER M56X1
-
360912050303 AH SCREW DIN0912-M 5X30AH SCREW DIN0912-M 5X30
-
3750180114 INTERM.RING SCREW SPRING RETINTERM.RING SCREW SPRING RET
-
4091210001 SPRING 250 69N/MM D=12,0 (62)SPRING 250 69N/MM D=12,0 (62)
-
4091210002 SPRING 250 72N/MM D=12,5 (59)SPRING 250 72N/MM D=12,5 (59)
-
4091210004 SPRING 250 80N/MM D=12,5 (62)SPRING 250 80N/MM D=12,5 (62)
-
4091210005 SPRING 250 84N/MM D=13,0 (62)SPRING 250 84N/MM D=13,0 (62)
-
4091210014 SPRING PDS5-260 66-86N/MMSPRING PDS5-260 66-86N/MM
-
4091210015 SPRING PDS6-260 71,5-90,5N/MMSPRING PDS6-260 71,5-90,5N/MM
-
4091210016 SPRING PDS7-260 76-95N/MMSPRING PDS7-260 76-95N/MM
-
4250180273 CIRCLIP 58,2X2CIRCLIP 58,2X2
-
4350180355 SPRING RETAINER D=80SPRING RETAINER D=80
-
4450180352 O-RING VITON 66,27X3,53O-RING VITON 66,27X3,53
-
4550180141 PISTON ROD NUT M16X1PISTON ROD NUT M16X1
-
4650180099 O-RING VITON 44,17X1,78O-RING VITON 44,17X1,78
-
4750180135 PISTON RING 50-8PISTON RING 50-8
-
4850180034 BACKPLATE 16X20X0,30BACKPLATE 16X20X0,30
-
4850180035 BACKPLATE 16X21X0,30BACKPLATE 16X21X0,30
-
4850180055 SHIM 16X30X0,20SHIM 16X30X0,20
-
4850180056 SHIM 16X32X0,20SHIM 16X32X0,20
-
4850180057 SHIM 16X34X0,20SHIM 16X34X0,20
-
4850180058 SHIM 16X36X0,20SHIM 16X36X0,20
-
4850180210 WASHER 16X21X1WASHER 16X21X1
-
4950180446 PISTON 6+6X3,5/4,5PISTON 6+6X3,5/4,5
-
5050180035 BACKPLATE 16X21X0,30BACKPLATE 16X21X0,30
-
5050180036 BACKPLATE 16X22X0,30BACKPLATE 16X22X0,30
-
5050180037 SHIM 16X23X0,30SHIM 16X23X0,30
-
5050180069 SHIM 16X40X0,25SHIM 16X40X0,25
-
5050180073 SHIM 16X30X0,30SHIM 16X30X0,30
-
5050180074 SHIM 16X32X0,30SHIM 16X32X0,30
-
5050180075 SHIM 16X34X0,30SHIM 16X34X0,30
-
5050180076 SHIM 16X36X0,30SHIM 16X36X0,30
-
5050180077 SHIM 16X38X0,30SHIM 16X38X0,30
-
5050180078 SHIM 16X40X0.30SHIM 16X40X0.30
-
5150180436 SANDWICH BUSH D26XD16X14.5/11SANDWICH BUSH D26XD16X14.5/11
-
5450180034 BACKPLATE 16X20XO.30BACKPLATE 16X20XO.30
-
5450180045 SHIM 16X28X0,15SHIM 16X28X0,15
-
5450180055 SHIM 16X30X0,20SHIM 16X30X0,20
-
5450180054 SHIM 16X28X0,20SHIM 16X28X0,20
-
5450180056 SHIM 16X32X0,20SHIM 16X32X0,20
-
5450180057 SHIM 16X34X0,20SHIM 16X34X0,20
-
5450180067 SHIM 16X36X0,25SHIM 16X36X0,25
-
5650180034 BACKPLATE 16X20X0,30BACKPLATE 16X20X0,30
-
5650180048 SHIM 16X34X0,15SHIM 16X34X0,15
-
5650180057 SHIM 16X34X0,20SHIM 16X34X0,20
-
5650180058 SHIM 16X36X0,20SHIM 16X36X0,20
-
5650180059 SHIM 16X38X0,20SHIM 16X38X0,20
-
5650180060 SHIM 16X40X0,20SHIM 16X40X0,20
-
5650180061 SHIM 16X42X0,20SHIM 16X42X0,20
-
5650180062 SHIM 16X44X0,20SHIM 16X44X0,20
-
5650180063 SHIM 16X28X0,25SHIM 16X28X0,25
-
5650180064 SHIM 16X30X0,25SHIM 16X30X0,25
-
5650180065 SHIM 16X32X0,25SHIM 16X32X0,25
-
5650180066 SHIM 16X34X0,25SHIM 16X34X0,25
-
5650180067 SHIM 16X36X0,25SHIM 16X36X0,25
-
5650180071 SHIM 16X44X0,25SHIM 16X44X0,25
-
5750180196 REBOUND DISC D=34; H=8REBOUND DISC D=34; H=8
-
5850180197 PISTON 6+6X7/4,5PISTON 6+6X7/4,5
-
6050180431 PISTON ROD D=18 L=151 M16X1PISTON ROD D=18 L=151 M16X1
-
6150180200 BUSH M8X1BUSH M8X1
-
6250180157 O-RING VITON 7X1,5O-RING VITON 7X1,5
-
6350180439 NEEDLE SEAT M8X1 D=5,5NEEDLE SEAT M8X1 D=5,5
-
6450180264 TUBE M18X1 L=151,5TUBE M18X1 L=151,5
-
6548600049 O-RING NBR 8X2O-RING NBR 8X2
-
6650180279 TUBE ADAPTOR M8X1 L=23TUBE ADAPTOR M8X1 L=23
-
7050180261 NEEDLE L=175NEEDLE L=175
-
7146811265 O-RING VITON 2,2X1,6O-RING VITON 2,2X1,6
-
7250180435S ADAPTOR CPL. D=50 H=29ADAPTOR CPL. D=50 H=29
-
7350180113 STEEL DISC 18X,5X43,7X6STEEL DISC 18X,5X43,7X6
-
7450180107 REBOUND RUBBERREBOUND RUBBER
-
7550180102 BACKUPRING 22,55X1,5BACKUPRING 22,55X1,5
-
7650180101 QUAD RING 18X2,62QUAD RING 18X2,62
-
7950180103 O-RING 41X5O-RING 41X5
-
8046180119 DU-BUSH 18X2OX12DU-BUSH 18X2OX12
-
8150180082 DUST SEAL 1835DUST SEAL 1835
-
8550180126 CIRCLIP 53X1,75CIRCLIP 53X1,75
-
8650180165 COVER D=50COVER D=50
-
8750180276 BUMP RUBBER WP60 D=18-26BUMP RUBBER WP60 D=18-26
-
8850180283 CONTRA NUT M18X1 H=5CONTRA NUT M18X1 H=5
-
9050180356 FORK PART L=55,5 B=32,5 D=12FORK PART L=55,5 B=32,5 D=12
-
9150180105 THREADED BUSH M12 PDSTHREADED BUSH M12 PDS
-
9250180297 RUBBER PLUG D=8RUBBER PLUG D=8
-
9340540603 STEEL BALL D=3MMSTEEL BALL D=3MM
-
9448600028 SPRING D=2,9 L=7,9SPRING D=2,9 L=7,9
-
9550180281 RESERVOIR CAP M14XIRESERVOIR CAP M14XI
-
9650180222 O-RING NBR 4X1,5O-RING NBR 4X1,5
-
9750180434 ADJUSTING SCREW 80 DEG. L=39ADJUSTING SCREW 80 DEG. L=39
-
9850180342S1 SHOCK ABSORBER FLUID 5 LT (0,33 LITRE)SHOCK ABSORBER FLUID 5 LT (0,33 LITRE)
-
99R12008 REPAIR-KIT GASKET 5018 PDSREPAIR-KIT GASKET 5018 PDS
