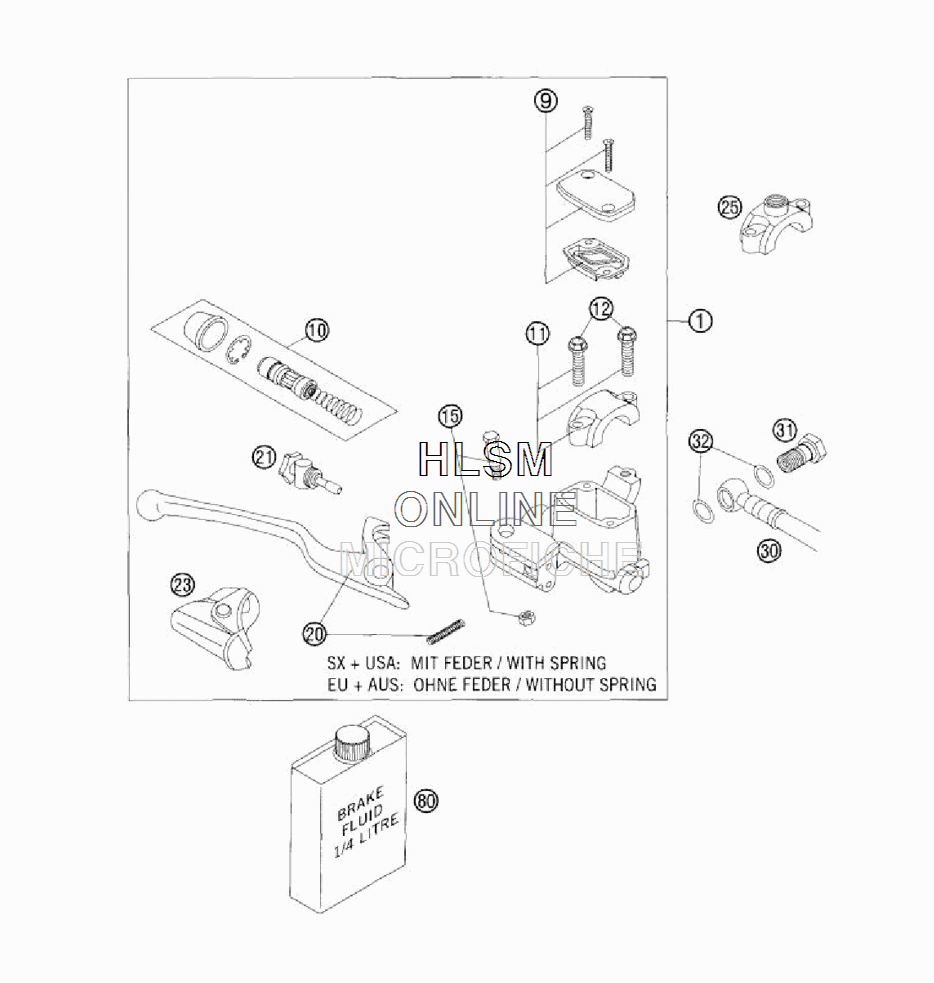

HAND BRAKE CYLINDER для Ktm 540 SXS - 2005 года выпуска
-
№АртикулНазвание
-
154813001000 HAND BRAKE CYLINDER CPL.HAND BRAKE CYLINDER CPL.
-
950313003000 HAND BRAKE CYL.COVER CPL.NATUREHAND BRAKE CYL.COVER CPL.NATURE
-
1054813008000 REP..SET PISTON D=10MMREP..SET PISTON D=10MM
-
1150313005000 CLAMP CPL. NATURECLAMP CPL. NATURE
-
120015060253 HH COLLAR SCREW M6X25 WS=8HH COLLAR SCREW M6X25 WS=8
-
1550313006100 LEVER SCREW CPL.LEVER SCREW CPL.
-
2054813002000 HAND BRAKE LEVER + SPRINGHAND BRAKE LEVER + SPRING
-
2154813007000 ADJUSTING SCREW CPL. SXADJUSTING SCREW CPL. SX
-
2350313004000 PROTECTION CAP HAND BRAKE CYL.PROTECTION CAP HAND BRAKE CYL.
-
2558012040150 CLAMP FOR MIRROWCLAMP FOR MIRROW
-
3059013010000 BRAKEHO. FRONT 1235MMBRAKEHO. FRONT 1235MM
-
3150213025000 HOLLOW SCREW M1OX1X19HOLLOW SCREW M1OX1X19
-
3242013226000 CU-SEAL RING DIN7603-1OX16X1CU-SEAL RING DIN7603-1OX16X1
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
