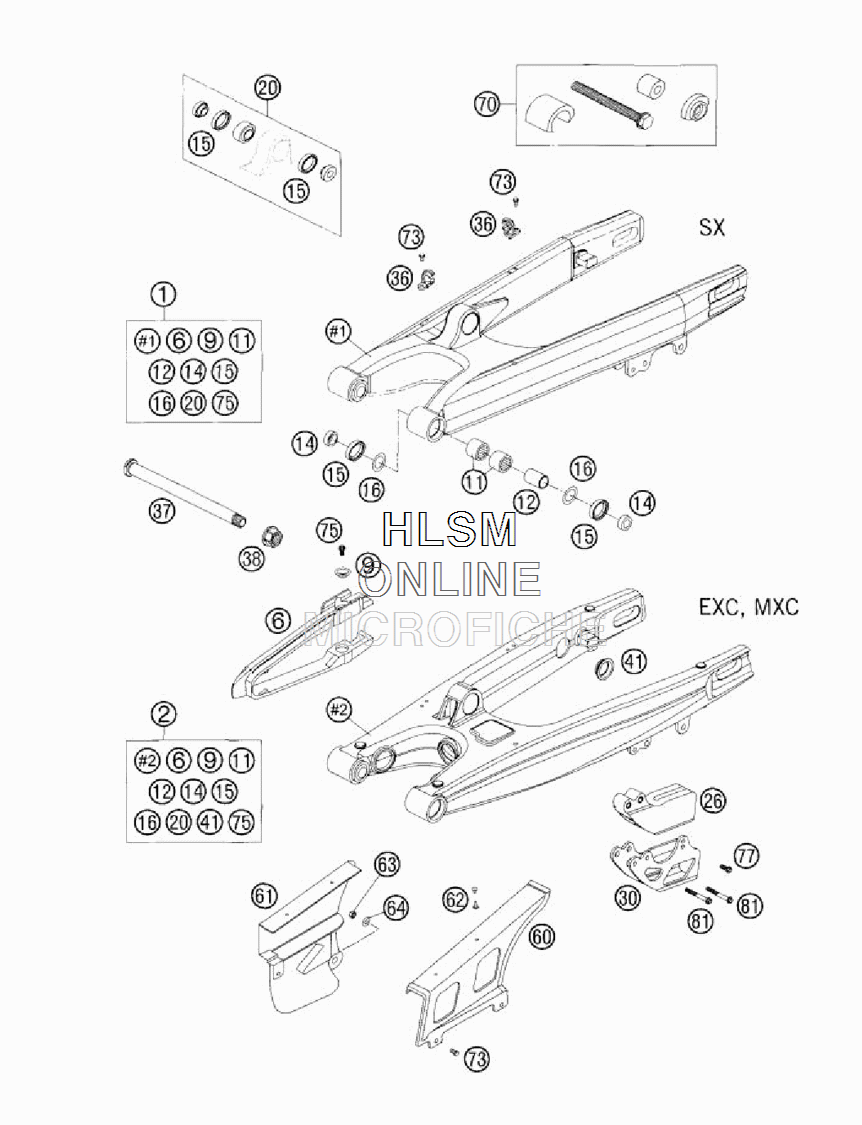

SWINGARM W/ CHAIN GUARD для Ktm 540 SXS - 2005 года выпуска
-
№АртикулНазвание
-
159404030044 SWINGARM CPL.SWINGARM CPL.
-
650304066100 CHAIN GUARDCHAIN GUARD
-
972210079000 BUCKETBUCKET
-
1159004031100 NEEDLE BEARING HK2212VNEEDLE BEARING HK2212V
-
1259404032000 BEARING SLEEVE 17X22X38,7BEARING SLEEVE 17X22X38,7
-
1454804034000 BUCKET F. SHAFT SEAL RINGBUCKET F. SHAFT SEAL RING
-
150760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
1654603036000 STOP DISK 22,2X31, 7X1STOP DISK 22,2X31, 7X1
-
2050304090044 PIVOT BEARING+BUSHES PDSPIVOT BEARING+BUSHES PDS
-
2654607066100 CHAIN GUIDE REARCHAIN GUIDE REAR
-
3054607070144 RETAINING PLATE CPL.RETAINING PLATE CPL.
-
3654611076100 RETAIN.CLAMP FOR BRAKE HOSERETAIN.CLAMP FOR BRAKE HOSE
-
3754804037000 SWINGARM BOLT M16X1,5SWINGARM BOLT M16X1,5
-
3854804038000 SELF LOCKNUT M16X1,5 WS=19SELF LOCKNUT M16X1,5 WS=19
-
4158404041100 CLOSING COVER ROUNDCLOSING COVER ROUND
-
6054607460000 CHAIN GUARD LARGECHAIN GUARD LARGE
-
6150304060100 CHAIN GUARD SMALLCHAIN GUARD SMALL
-
6220012062055 HOLLOW RIVET TWO PARTSHOLLOW RIVET TWO PARTS
-
630985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
640021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
7050329000044 TOOL BEARING MOUNTING PDSTOOL BEARING MOUNTING PDS
-
730009050103 SPECIAL SCREW M50X10SPECIAL SCREW M50X10
-
750015060103 HH COLLAR SCREW M6X10 WS=8HH COLLAR SCREW M6X10 WS=8
-
770015060163 HH COLLAR SCREW M6X16 WS=8HH COLLAR SCREW M6X16 WS=8
-
810015060503 HH COLLAR SCREW M6X50 WS=8HH COLLAR SCREW M6X50 WS=8
