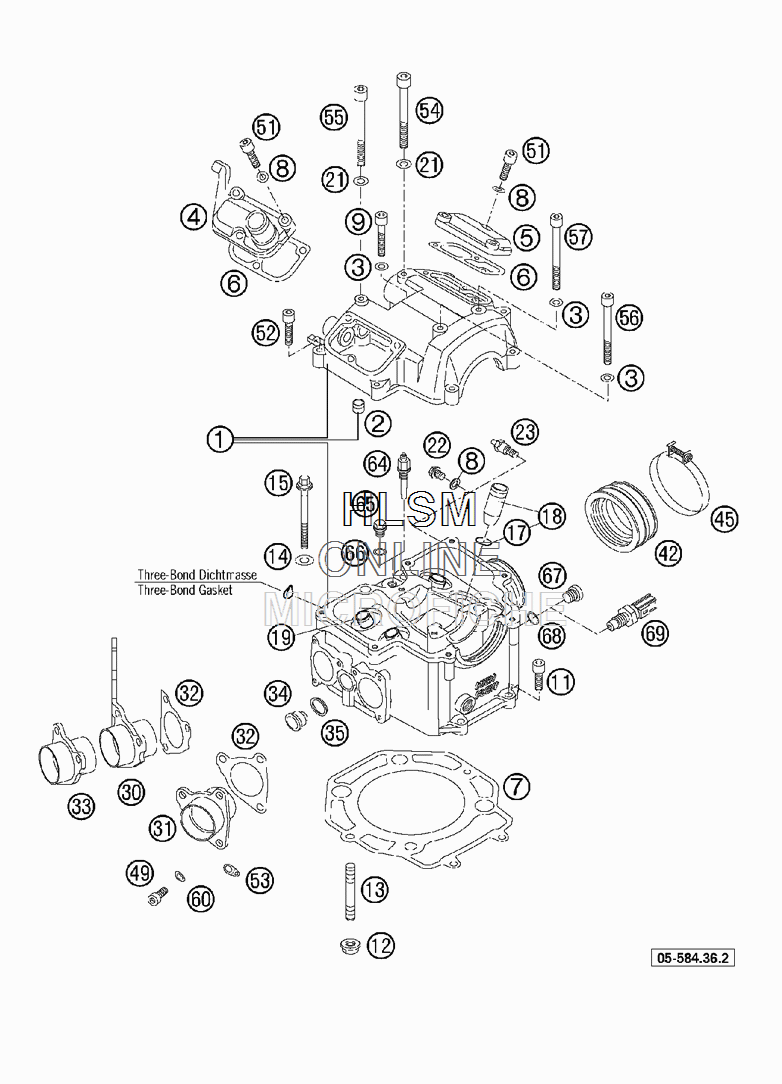

CYLINDER HEAD для Ktm 640 SUPERMOTO PRESTIGE CHASSIS - 2005 года выпуска
-
№АртикулНазвание
-
15843602020023 CYL. HEAD CPL. LC4/SXC SASCYL. HEAD CPL. LC4/SXC SAS
-
258530090000 DOWEL BUSHING 9,8X7,2X10DOWEL BUSHING 9,8X7,2X10
-
358036065100 CU-SEAL RING 6 X 10 X 2CU-SEAL RING 6 X 10 X 2
-
458036152600 VALVE COVER FRONTVALVE COVER FRONT
-
558036052000 VALVE COVER REARVALVE COVER REAR
-
658036053000 VALVE COVER GASKETVALVE COVER GASKET
-
758330036000 CYLINDER HEAD GASKET 101,3 MMCYLINDER HEAD GASKET 101,3 MM
-
80603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
90912060353 AH SCREW DIN0912-M 6X35AH SCREW DIN0912-M 6X35
-
110912060253 AH SCREW DIN0912-M 6X25AH SCREW DIN0912-M 6X25
-
1249030028000 COLLAR NUT M8 - 8MM HIGHCOLLAR NUT M8 - 8MM HIGH
-
1354330043000 STUD DIN0835-M 8X40STUD DIN0835-M 8X40
-
140125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
1558036099100 COLLAR SCREW M10X80 WS=13 10.9COLLAR SCREW M10X80 WS=13 10.9
-
170993012000 CIRCLIP DIN7993-RW12CIRCLIP DIN7993-RW12
-
1858036026644 VALVE GUIDE INTAKE CPL.VALVE GUIDE INTAKE CPL.
-
1958036126644 VALVE GUIDE EXHAUST CPL.VALVE GUIDE EXHAUST CPL.
-
210603070122 CU-SEAL RING DIN7603- 7X12X2CU-SEAL RING DIN7603- 7X12X2
-
220015060083 HH COLLAR SCREW M 6X8 WS=8HH COLLAR SCREW M 6X8 WS=8
-
2358336020190 VACUUM CONECTION M6X1VACUUM CONECTION M6X1
-
3058436039100 EXHAUST FLANGE CPL. R/S SAS 04EXHAUST FLANGE CPL. R/S SAS 04
-
3158036140100 EXHAUST FLANGE L/SEXHAUST FLANGE L/S
-
3258036041000 EXHAUST FLANGE GASKETEXHAUST FLANGE GASKET
-
3358036040100 EXHAUST FLANGE R/SEXHAUST FLANGE R/S
-
3458336024000 PLUG SAS BOREPLUG SAS BORE
-
3558436054000 CU-SEAL RING 12 X 16 X 2CU-SEAL RING 12 X 16 X 2
-
4258436044000 INTAKE BOOT FOR MIKUNI CARBU.INTAKE BOOT FOR MIKUNI CARBU.
-
4258536044000 INTAKE BOOT RALLYEINTAKE BOOT RALLYE
-
4556530061000 CLAMP SM12/A60CLAMP SM12/A60
-
4559030061000 CLAMP D=56MM B=9MM M4X25CLAMP D=56MM B=9MM M4X25
-
490912060163 AH SCREW DIN0912-M 6X16AH SCREW DIN0912-M 6X16
-
510912060203 AH SCREW DIN0912-M 6X20AH SCREW DIN0912-M 6X20
-
520912060253 AH SCREW DIN0912-M 6X25AH SCREW DIN0912-M 6X25
-
5351005074000 RETAINING PLATERETAINING PLATE
-
540912070553 AH SCREW DIN0912-M 7X55 12.9AH SCREW DIN0912-M 7X55 12.9
-
550912070603 AH SCREW DIN0912-M 7X60 12.9AH SCREW DIN0912-M 7X60 12.9
-
560912060653 AH SCREW DIN0912-M 6X65AH SCREW DIN0912-M 6X65
-
570912060703 AH SCREW DIN0912-M 6X70AH SCREW DIN0912-M 6X70
-
600137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
6442011252000 TEMPEMPERATURE SWITCH VDO DUKETEMPEMPERATURE SWITCH VDO DUKE
-
650910100003 PLUG DIN0910-M 10X1PLUG DIN0910-M 10X1
-
660603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
670908120153 PLUG DIN0908-M12X1,5PLUG DIN0908-M12X1,5
-
680770100020 O-RING 10,00X2,00 SILCONEO-RING 10,00X2,00 SILCONE
-
6960011252000 TEMPERAT.-SENSOR WATER LC8TEMPERAT.-SENSOR WATER LC8
