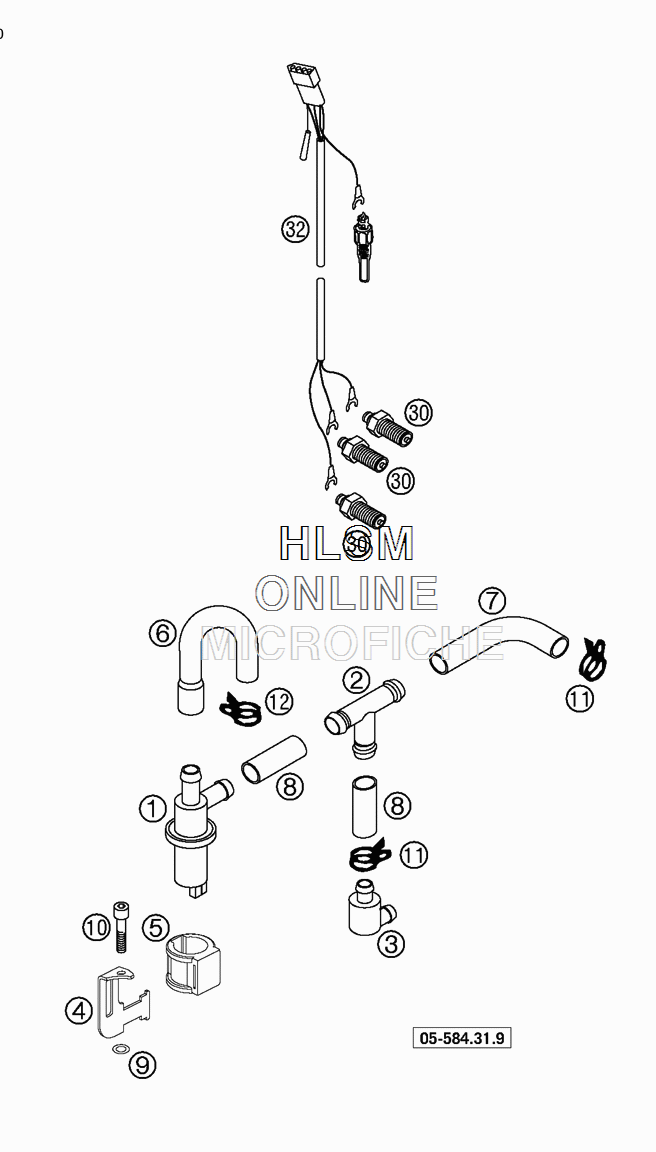

ELECTRONIC POWER C. для Ktm 640 SUPERMOTO PRESTIGE CHASSIS - 2005 года выпуска
-
№АртикулНазвание
-
158431067000 MAGNETIC VALVE PIRBURG EPCMAGNETIC VALVE PIRBURG EPC
-
258431072000 T-CONNECTION 12MMT-CONNECTION 12MM
-
358431070100 AIR FILTER LC4 FOR EPCAIR FILTER LC4 FOR EPC
-
458431069100 BRACKET FOR MAGNETIC VALVEBRACKET FOR MAGNETIC VALVE
-
560031068000 RUBBER SUPPORT F. MAG.VALVERUBBER SUPPORT F. MAG.VALVE
-
658431071000 VACUUM HOSE FOR MAGNETICVACUUM HOSE FOR MAGNETIC
-
758431097000 ANGULAR HOSE T-CON.-CARBURETORANGULAR HOSE T-CON.-CARBURETOR
-
858431097100 TUBE 12MM T-CON.-FILTERTUBE 12MM T-CON.-FILTER
-
958036065100 CU-SEAL RING 6 X 10 X 2CU-SEAL RING 6 X 10 X 2
-
100912060303 AH SCREW DIN0912-M 6X30AH SCREW DIN0912-M 6X30
-
1158431082000 YDNAC-CLAMP 15MMYDNAC-CLAMP 15MM
-
1258431082100 YDNAC-CLAMP 10173 (16MM)YDNAC-CLAMP 10173 (16MM)
-
3058011081100 CONTACT SCREW M10 STEELCONTACT SCREW M10 STEEL
-
3258411085000 WIRING HARN. EPC F. ENGINEWIRING HARN. EPC F. ENGINE
