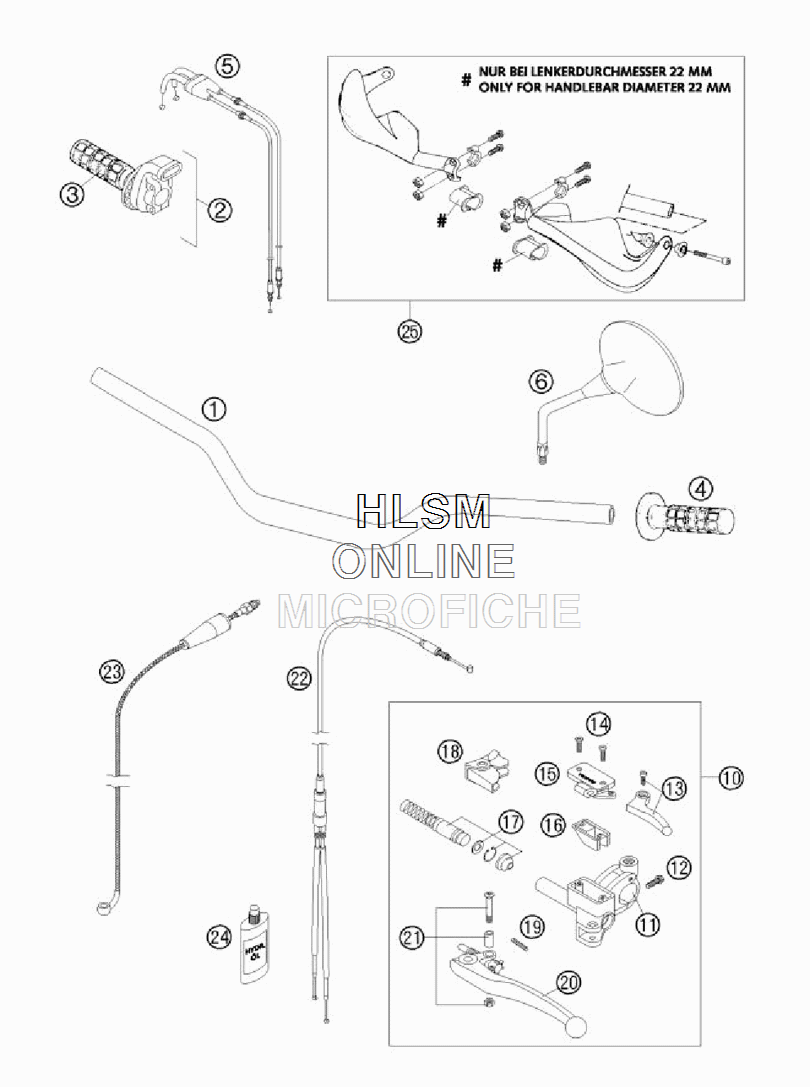

HANDLEBAR W/ CONTROLS для Ktm 950 ADVENTURE S US - 2005 года выпуска
-
№АртикулНазвание
-
160002001000 HANDLEBAR D=28MMHANDLEBAR D=28MM
-
258702010000 THROTTLE GRIP CPL.THROTTLE GRIP CPL.
-
358302003100 TWIST GRIP COVER PERFORATEDTWIST GRIP COVER PERFORATED
-
458302052100 FIXED GRIP L/S PERFORATEDFIXED GRIP L/S PERFORATED
-
560002091000 THROTTLE CABLETHROTTLE CABLE
-
658412040100 REAR MIRROR L/S+R/SREAR MIRROR L/S+R/S
-
1060002030000 MASTER CYLINDER CPL.MASTER CYLINDER CPL.
-
1160002044000 CLAMP MIRROR WITH CLAMPCLAMP MIRROR WITH CLAMP
-
120015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
1360036050000 CHOKE LEVER CPL.CHOKE LEVER CPL.
-
140965040123 FLAT HEAD SCREW DIN0965-M 4X12FLAT HEAD SCREW DIN0965-M 4X12
-
1560002033000 COVER HYD.CLUTCHCOVER HYD.CLUTCH
-
1650302034000 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
1750302032000 REP.SATZ PISTON CLUT.HYDR.REP.SATZ PISTON CLUT.HYDR.
-
1850302037000 PROTECT.CAP FOR LEVER PERCHPROTECT.CAP FOR LEVER PERCH
-
1959002035000 SPRING FOR CLUTCH LEVERSPRING FOR CLUTCH LEVER
-
2060002031000 CLUTCH LEVER LONG CPL.CLUTCH LEVER LONG CPL.
-
2150302038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
2260002095000 CHOKE CABLECHOKE CABLE
-
2360032063100 CLUTCH PIPECLUTCH PIPE
-
2450302036000 OIL FOR HYD.CLUTCH 50MLOIL FOR HYD.CLUTCH 50ML
-
256000207910030 HANDGUARD L/S+R/S CPL.BLACKHANDGUARD L/S+R/S CPL.BLACK
-
256000207910004 HANDGUARD L/S+R/S CPL.ORANGEHANDGUARD L/S+R/S CPL.ORANGE
