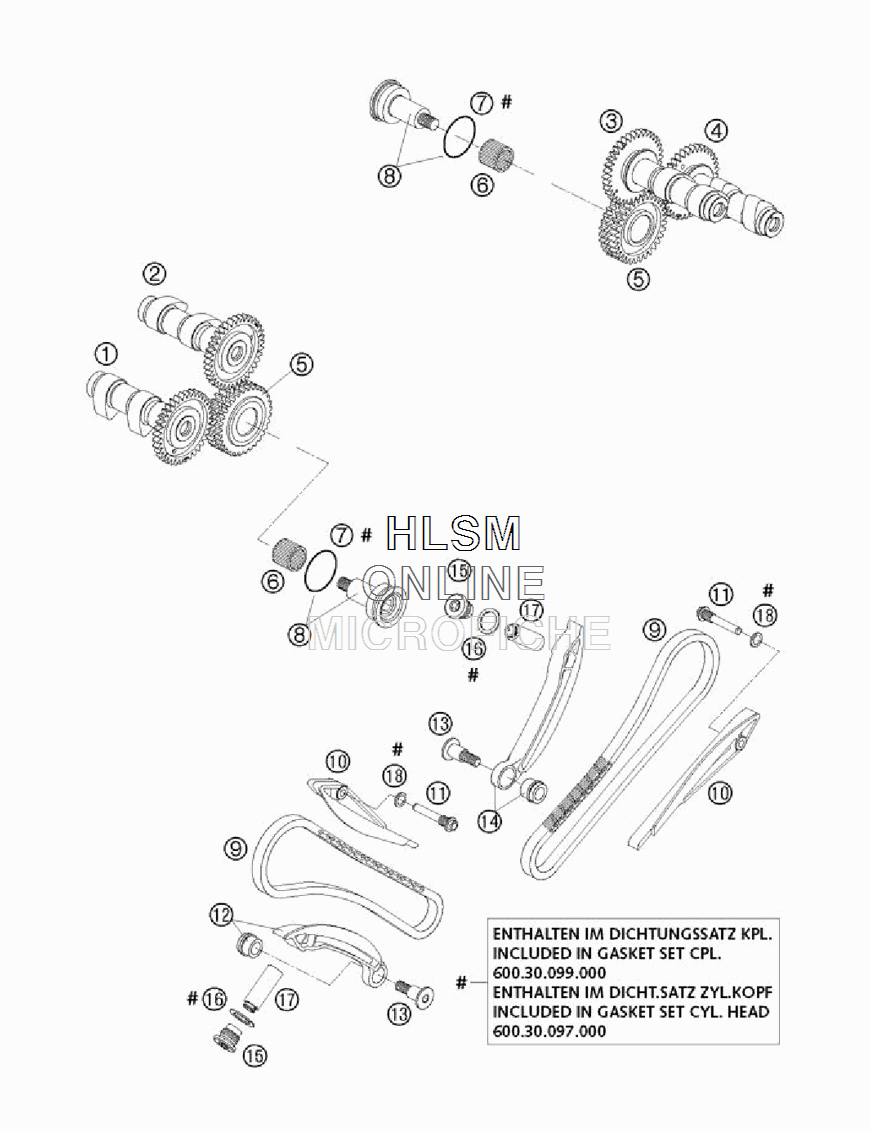

TIMING VALVE для Ktm 950 ADVENTURE S US - 2005 года выпуска
-
№АртикулНазвание
-
160036010144 CAMSHAFT EXHAUST CPL. FRONTCAMSHAFT EXHAUST CPL. FRONT
-
260036009144 CAMSHAFT INTAKE CPL. FRONTCAMSHAFT INTAKE CPL. FRONT
-
360036109144 CAMSHAFT INTAKE CPL. REARCAMSHAFT INTAKE CPL. REAR
-
460036110144 CAMSHAFT EXHAUST CPL. REARCAMSHAFT EXHAUST CPL. REAR
-
560036070000 TIMING GEARS 32-T CPL.TIMING GEARS 32-T CPL.
-
60405182420 NEEDLE BEARING K18/24/20NEEDLE BEARING K18/24/20
-
70770290020 O-RING 29X2 VITONO-RING 29X2 VITON
-
860036071044 BEARING BOLT CPL. W. O-RINGBEARING BOLT CPL. W. O-RING
-
960036013000 TOOTH CHAIN 88 LINK 6,35PITCHTOOTH CHAIN 88 LINK 6,35PITCH
-
1060036001000 GUIDE RAILGUIDE RAIL
-
1160036002060 BUSHING SCREW 2 CYL.BUSHING SCREW 2 CYL.
-
1260036002000 TENSIONER RAIL CPL. FRONTTENSIONER RAIL CPL. FRONT
-
1360036002050 COLLAR SCREW AH M8COLLAR SCREW AH M8
-
1460036102000 TENSIONER RAIL CPL. REARTENSIONER RAIL CPL. REAR
-
1560036008000 SCREW PLUG M16X1,5SCREW PLUG M16X1,5
-
160603162013 CU SEAL-RING DIN7603 16X20X1,3CU SEAL-RING DIN7603 16X20X1,3
-
1760036003000 TIMING-CH.TENS. HYDR.(75YM)TIMING-CH.TENS. HYDR.(75YM)
-
180603082121 SEAL RING CU DIN7603- 8X12X1SEAL RING CU DIN7603- 8X12X1
