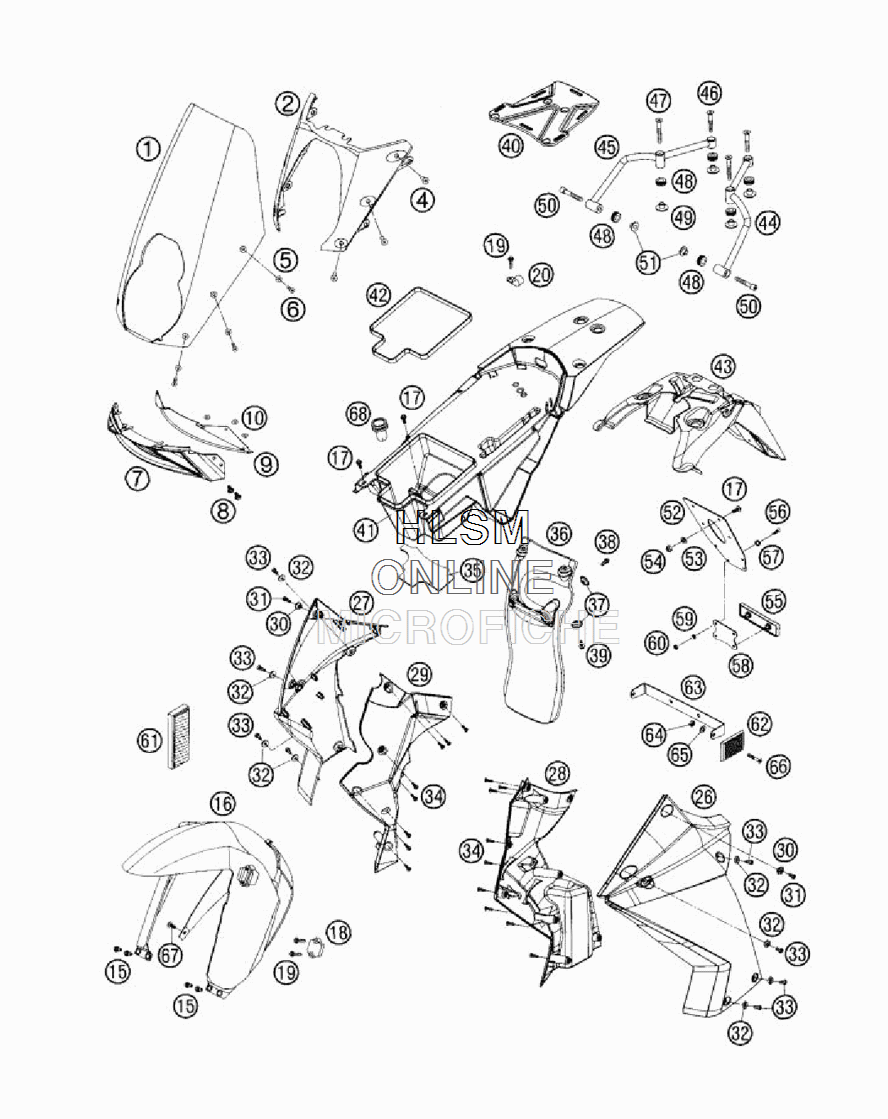

MASK W/ FENDERS для Ktm 950 ADVENTURE - 2005 года выпуска
-
№АртикулНазвание
-
160008008000 FAIRING SCREENFAIRING SCREEN
-
260008001000 HERO LIGHT MASKHERO LIGHT MASK
-
460008008050 BLIND PLUG-IN NUT M5 WN 16ABLIND PLUG-IN NUT M5 WN 16A
-
560008046000 SPECIAL WASHER D=12MMSPECIAL WASHER D=12MM
-
60991050204 FLAT HEAD SCREW DIN7991-M 5X20FLAT HEAD SCREW DIN7991-M 5X20
-
760008011000 AIR INTAKEAIR INTAKE
-
80014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
960008011060 AIR INTAKE GRILLAIR INTAKE GRILL
-
1060008011050 SPRING NUT 012410SPRING NUT 012410
-
1559001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
166000801000006 FENDER FRONT BLUEFENDER FRONT BLUE
-
166000801000040A FENDER FRONT BLACK-METFENDER FRONT BLACK-MET
-
166000801000070B FENDER FRONT ORANGEFENDER FRONT ORANGE
-
170014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
186000802500006 CLAMP F. SPEED CABLE BLUECLAMP F. SPEED CABLE BLUE
-
186000802500040A CLAMP F. SPEED CABLE BLACKCLAMP F. SPEED CABLE BLACK
-
1860008025000701 CLAMP F. SPEED CABLE ORANGECLAMP F. SPEED CABLE ORANGE
-
190081500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
2057013070000 PVC-CLAMP 7/16 HEYCO 3377PVC-CLAMP 7/16 HEYCO 3377
-
266000805000006A SIDE COVER US BLUESIDE COVER US BLUE
-
266000805000040A SIDE COVER US BLACK-METSIDE COVER US BLACK-MET
-
266000805000070 SIDE COVER US ORANGESIDE COVER US ORANGE
-
276000805100006A SIDE COVER R/S BLUESIDE COVER R/S BLUE
-
276000805100040A SIDE COVER R/S BLACK-METSIDE COVER R/S BLACK-MET
-
276000805100070 SIDE COVER R/S ORANGESIDE COVER R/S ORANGE
-
2860008050050 INNER COVER L/SINNER COVER L/S
-
2960008051050 INNER COVER R/SINNER COVER R/S
-
3060008052000 BUSH F. SIDE COVERBUSH F. SIDE COVER
-
310984060163 AH SCREW DIN6912-M 6X16AH SCREW DIN6912-M 6X16
-
3260008045000 SPECIAL WASHER D=16,5MMSPECIAL WASHER D=16,5MM
-
330012060123 AH SCREW DIN6912 M6X12AH SCREW DIN6912 M6X12
-
340016050121 SCREW FOR PLASTIC D=5X12SCREW FOR PLASTIC D=5X12
-
3560008013060 THER.PROT.FOIL REAR FENDERTHER.PROT.FOIL REAR FENDER
-
3660006010000 SPLASH PROTECTSPLASH PROTECT
-
3772210079000 BUCKETBUCKET
-
380015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
390017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
4060012010000 BAGGAGE RACK LC8BAGGAGE RACK LC8
-
4160008013000 REAR FENDER BLACKREAR FENDER BLACK
-
416000801300006A REAR FENDER BLUEREAR FENDER BLUE
-
4260008013070 PROFILED GASKET L=735 MMPROFILED GASKET L=735 MM
-
4360008015000 NUMB.PLATE CARRIERNUMB.PLATE CARRIER
-
4460012008000 HANDLE L/SHANDLE L/S
-
4560012009000 HANDLE R/SHANDLE R/S
-
460991080503 FLAT HEAD SCREW DIN7991-M 8X50FLAT HEAD SCREW DIN7991-M 8X50
-
470991080653 FLAT HEAD SCREW DIN7991-M 8X65FLAT HEAD SCREW DIN7991-M 8X65
-
4841001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
4960012008003 COLLAR BUSHING 8,2X12X28X9COLLAR BUSHING 8,2X12X28X9
-
500912080553 AH SCREW DIN912 M8X55AH SCREW DIN912 M8X55
-
5160012008002 COLLAR BUSHING 8,2X12X20X9COLLAR BUSHING 8,2X12X20X9
-
5260012081000 NUMBER PLATE SUPPORTNUMBER PLATE SUPPORT
-
530021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
540985060003 SELF LOCK NUT DIN0985-M 6SELF LOCK NUT DIN0985-M 6
-
5558412080000 REFLECTOR REDREFLECTOR RED
-
560966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
5740006006000 WASHER 6MMWASHER 6MM
-
5858412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
590125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
600985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
6160012080000 SIDE REFLECTOR YELLOWSIDE REFLECTOR YELLOW
-
6216512180100 SIDE REFLECTOR RED REARSIDE REFLECTOR RED REAR
-
6360012181000 BRACKET SIDE REFLECTORBRACKET SIDE REFLECTOR
-
640985040003 SELF LOCKING NUT DIN0985-M 4SELF LOCKING NUT DIN0985-M 4
-
650021040003 WASHER DIN9021-A 4,3WASHER DIN9021-A 4,3
-
660966040203 OVAL HEAD SCREW DIN966 M4X20OVAL HEAD SCREW DIN966 M4X20
-
670014060133 HH COLLAR SCREW M6X13 WS=8HH COLLAR SCREW M6X13 WS=8
-
6850206020000 RUBBER GRIMMET SLOTTEDRUBBER GRIMMET SLOTTED
