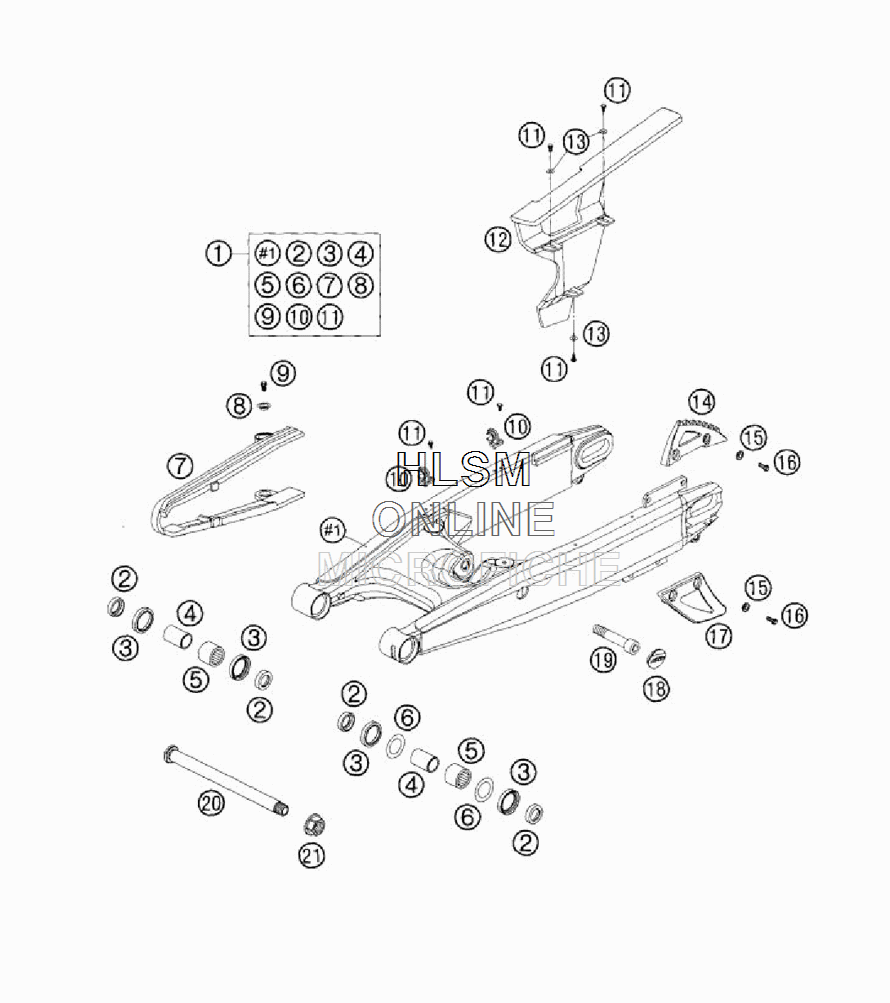

SWINGARM W/ CHAIN GUARD для Ktm 950 ADVENTURE - 2005 года выпуска

№

Артикул

Название
1

60004030144 SWINGARM CPL. G4

SWINGARM CPL. G4

340 ₽
2

60004034000 BUCKET F SHAFT SEAL RING

BUCKET F SHAFT SEAL RING

1 840 ₽
3

0760304073 SHAFT SEAL RING 30X40X7

SHAFT SEAL RING 30X40X7

760 ₽
4

60004032000 INNER RING JR20X25X38,5

INNER RING JR20X25X38,5

4 440 ₽
5

60004031000 NEEDLE BUSH HK2526B

NEEDLE BUSH HK2526B

2 680 ₽
6

60004033000 STOP DISK

STOP DISK

380 ₽
7

60004066000 CHAIN SLID. GUARD SWINGARM

CHAIN SLID. GUARD SWINGARM

6 140 ₽
8

72210079000 BUCKET

BUCKET

680 ₽
9

0015060103 HH COLLAR SCREW M6X1O WS=8

HH COLLAR SCREW M6X1O WS=8

500 ₽
10

5461107610030 RET CLAMP F. BRAKE HOSE BLACK

RET CLAMP F. BRAKE HOSE BLACK

270 ₽
11

0009050103 SPECIAL SCREW M 5,0X10

SPECIAL SCREW M 5,0X10

290 ₽
12

60004061000 CHAINGUARD

CHAINGUARD

2 650 ₽
13

0021050003 WASHER DIN9021-A 5,3

WASHER DIN9021-A 5,3

120 ₽
14

60004075000 REAR SPROCKET GUARD

REAR SPROCKET GUARD

760 ₽
15

50308053000 BUSH FOR SPOILER 6X11X16X7,5

BUSH FOR SPOILER 6X11X16X7,5

1 460 ₽
16

0015060163 HH COLLAR SCREW M 6X16 WS=8

HH COLLAR SCREW M 6X16 WS=8

290 ₽
17

60004070000 CHAIN GUIDE

CHAIN GUIDE

1 270 ₽
18

60004041000 PLUG SWINGARM

PLUG SWINGARM

1 640 ₽
19

60004017000 SCREW M14X1,5 L=73MM

SCREW M14X1,5 L=73MM

1 190 ₽
20

60004037000 SWINGARM BOLT M19X1,5 L=268

SWINGARM BOLT M19X1,5 L=268

16 330 ₽
21

60004038000 COLLAR NUT M19X1,5 WS=27MM

COLLAR NUT M19X1,5 WS=27MM

4 410 ₽
