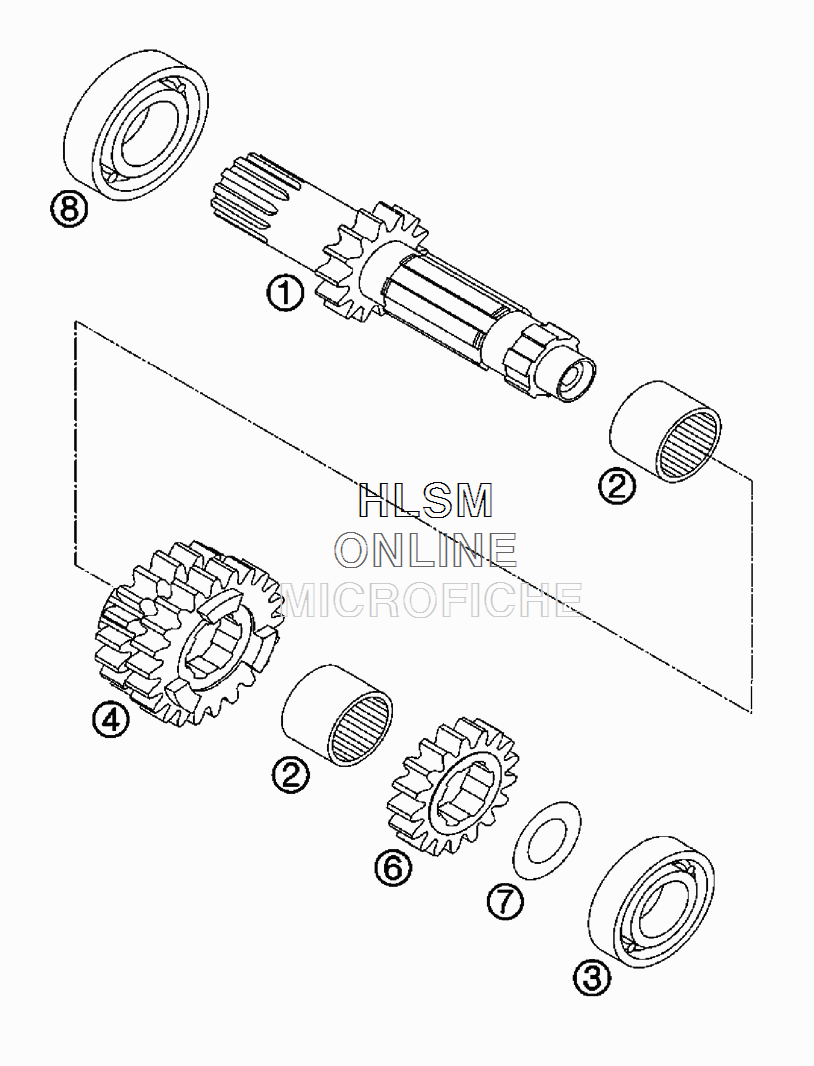

TRANSMISSION - MAINSHAFT для Ktm 450 SX - 2006 года выпуска
-
№АртикулНазвание
-
159033001300 MAIN SHAFT-ZB 16-T SX 03MAIN SHAFT-ZB 16-T SX 03
-
259033032100 SPACER BUSHING 25X30X24,4SPACER BUSHING 25X30X24,4
-
30625062035 BALL BEARING 6203 JR2 C3BALL BEARING 6203 JR2 C3
-
459033003046 SLIDING GEAR 3/4.G 20/22-T"46"SLIDING GEAR 3/4.G 20/22-T"46"
-
659033002037 SOLID GEAR 2.G 18-T "37"SOLID GEAR 2.G 18-T "37"
-
756033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
-
80625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
