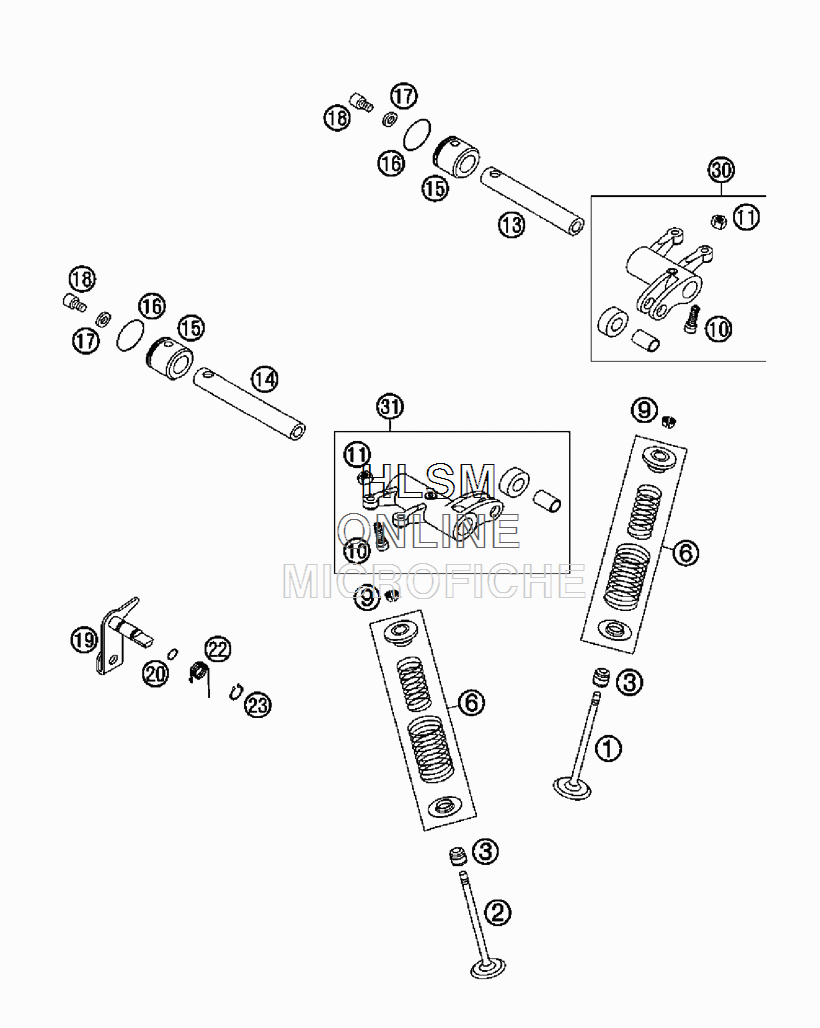

VALVE DRIVE для Ktm 450 SX - 2006 года выпуска
-
№АртикулНазвание
-
159436030000 INTAKE VALVE D=35MM TITANINTAKE VALVE D=35MM TITAN
-
259436031000 EXHAUST VALVE D=30MM TITANEXHAUST VALVE D=30MM TITAN
-
359036027000 VALVE-STEM SEALING RACINGVALVE-STEM SEALING RACING
-
659436128044 VALVE SPRING SET CPL.VALVE SPRING SET CPL.
-
959036033000 VALVE COLLET KK 6 HVALVE COLLET KK 6 H
-
1059036062000 ADJUSTMENT SCREW M6X0,75ADJUSTMENT SCREW M6X0,75
-
1159036062100 NUT M6X0,75NUT M6X0,75
-
1359036056000 ROCKER ARM SHAFT INTAKEROCKER ARM SHAFT INTAKE
-
1459036057000 ROCKER ARM SHAFT EXHAUSTROCKER ARM SHAFT EXHAUST
-
1559036061095 END CAP ROCKER ARM SHAFTEND CAP ROCKER ARM SHAFT
-
160770191016 O-RING 19,10X1,60 NBR 70O-RING 19,10X1,60 NBR 70
-
1759036060010 SHIM ALU 5,2X10X2SHIM ALU 5,2X10X2
-
180912050083 AH SCREW DIN 912 M 5X8AH SCREW DIN 912 M 5X8
-
1959036050000 DECOMPRESSION SHAFT CPL.DECOMPRESSION SHAFT CPL.
-
200770051016 O-RING 5,10X1,60 NBR 70O-RING 5,10X1,60 NBR 70
-
2259036059000 DECOMPRESSION LEVER SPRINGDECOMPRESSION LEVER SPRING
-
230471080000 CIRCLIP DIN0471- 8X0,8CIRCLIP DIN0471- 8X0,8
-
3059036060144 ROCKER ARM INTAKE CPL.ROCKER ARM INTAKE CPL.
-
3159036061144 ROCKER ARM EXHAUST CPL.ROCKER ARM EXHAUST CPL.
