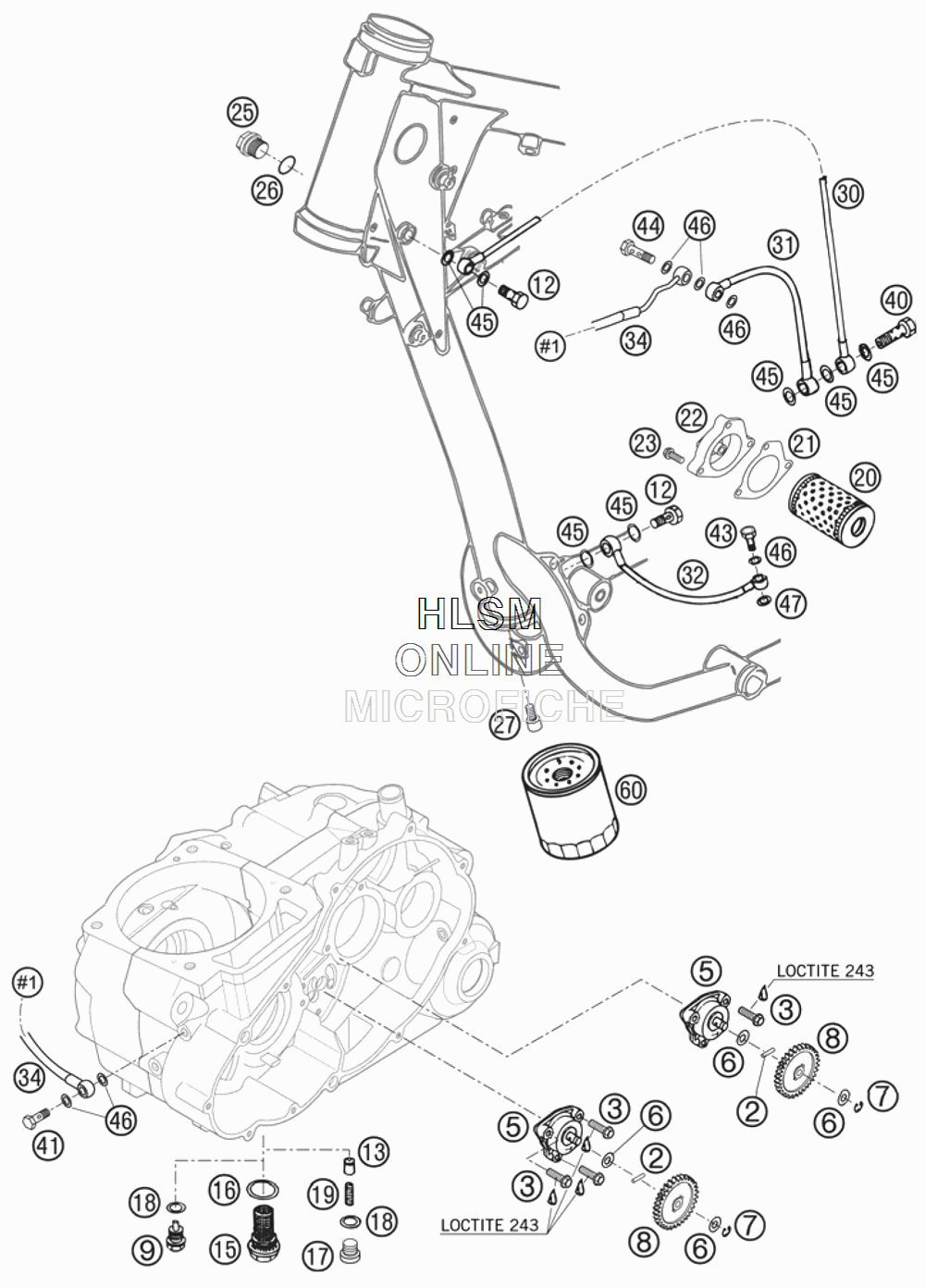

LUBRICATING SYSTEM для Ktm 640 LC4 ADVENTURE - 2006 года выпуска
-
№АртикулНазвание
-
20402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8NEEDLEROL.DIN5402 NRA 2,5X19,8
-
30015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
558038007700 OIL PUMP MIKUNI G-73-10OIL PUMP MIKUNI G-73-10
-
658038007755 STOP DISK 8,1 X 15 X 0,5STOP DISK 8,1 X 15 X 0,5
-
70799060000 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
858438001000 OIL PUMP GEAR 26-TOIL PUMP GEAR 26-T
-
958030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
1254313025000 HOLLOW SCREW M10 X 1HOLLOW SCREW M10 X 1
-
1358038028000 VALVE PISTON D=10MMVALVE PISTON D=10MM
-
1558038019100 OIL DRAIN PLUG M22X1,5OIL DRAIN PLUG M22X1,5
-
1658038017100 CU-SEAL RING DIN7603-22X27X2CU-SEAL RING DIN7603-22X27X2
-
170908120153 PLUG DIN0908-M12X1,5PLUG DIN0908-M12X1,5
-
1858038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
1958038023300 PRESSURE SPRING L=25MM D=1MMPRESSURE SPRING L=25MM D=1MM
-
2058038005100 OIL FILTER LONGOIL FILTER LONG
-
2158530041000 OIL FILTER COVER GASKET 2001OIL FILTER COVER GASKET 2001
-
2258030008700 OIL FILTER COVEROIL FILTER COVER
-
230015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
250910160153 PLUG DIN0910-M16X1,5PLUG DIN0910-M16X1,5
-
260603162220 CU-SEAL RING 16X22X2CU-SEAL RING 16X22X2
-
270984060103 AH SCREW DIN7984-M 6X10AH SCREW DIN7984-M 6X10
-
3058038234700 OIL LINE FILTER-FRAME TUBE R10/R10 - 865MMOIL LINE FILTER-FRAME TUBE R10/R10 - 865MM
-
3158338034000 OIL LINE CLUTCH COVER-FRAME R10/R8 - 206MMOIL LINE CLUTCH COVER-FRAME R10/R8 - 206MM
-
3258338034100 OIL LINE CLUTCH COVER-FRAME R10/R8 - 240MMOIL LINE CLUTCH COVER-FRAME R10/R8 - 240MM
-
3458438034000 OIL LINE 8/8 BENT R8/R8 - 265MMOIL LINE 8/8 BENT R8/R8 - 265MM
-
4058038033200 DUAL BANJO BOLT M10X1DUAL BANJO BOLT M10X1
-
4158038029000 BANJO BOLT M8X1BANJO BOLT M8X1
-
4358038130000 JET SCREW M 8 X 1 "150"JET SCREW M 8 X 1 "150"
-
4458038033000 DUAL BANJO BOLT M8X1DUAL BANJO BOLT M8X1
-
450603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
460603082121 SEAL RING CU DIN7603- 8X12X1SEAL RING CU DIN7603- 8X12X1
-
4758038032300 CU-SEAL RING 8 X 12 X 1,5CU-SEAL RING 8 X 12 X 1,5
-
6058338045100 SCREW TYPE FILTERSCREW TYPE FILTER
