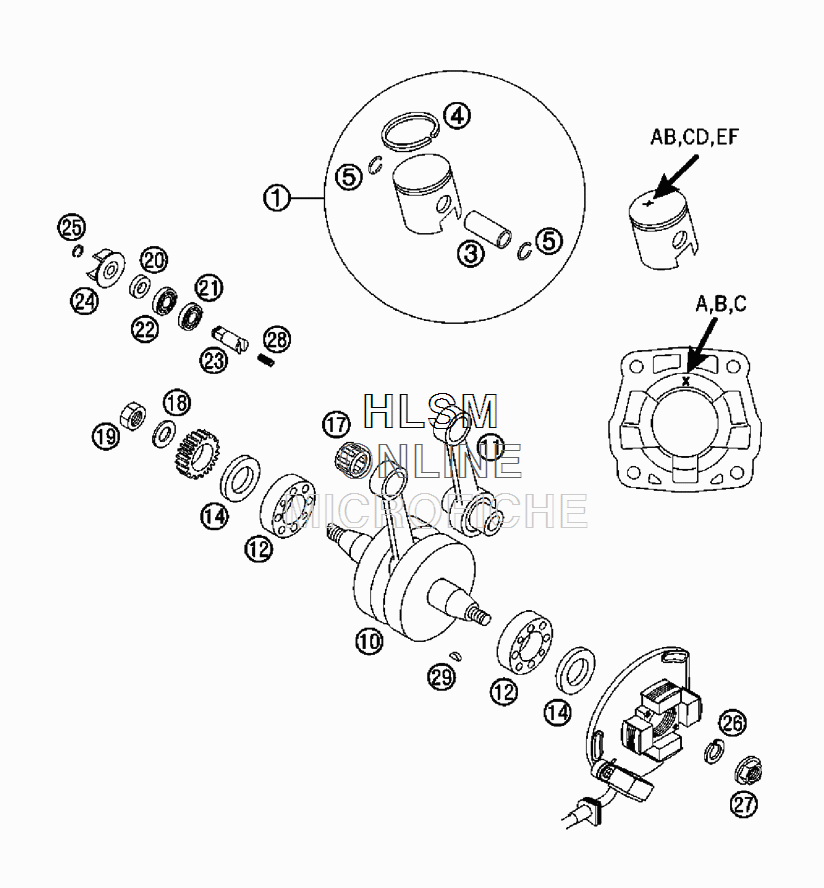

CRANKSHAFT W/ PISTON для Ktm 65 SX - 2006 года выпуска

№

Артикул

Название
1

46030007500 A PISTON CPL. 45MM "A/B"

PISTON CPL. 45MM "A/B"

40 300 ₽
1

46030007500 C PISTON CPL. 45MM "C/D"

PISTON CPL. 45MM "C/D"

40 510 ₽
1

46030007500 E PISTON CPL. 45MM "E/F"

PISTON CPL. 45MM "E/F"

40 300 ₽
3

46030033000 PISTON PIN 12X38

PISTON PIN 12X38

2 390 ₽
4

46030030500 PISTON RING 45MM 65CCM

PISTON RING 45MM 65CCM

12 850 ₽
5

45130074000 CIRCLIP

CIRCLIP

350 ₽
10

46030018200 CRANKSHAFT CPL. STROKE 40,8 03

CRANKSHAFT CPL. STROKE 40,8 03

155 390 ₽
11

46030015100 CONN.ROD REPAIR SET

CONN.ROD REPAIR SET

73 450 ₽
12

46030082200 GROOVED BALL BEAR.20X52X15 NTN

GROOVED BALL BEAR.20X52X15 NTN

6 110 ₽
14

47030076100 SEAL SHAFT RING 20X35X6 BTSL

SEAL SHAFT RING 20X35X6 BTSL

5 780 ₽
17

46030034000 NEEDLE BEAR.PISTONPIN 12X15X17

NEEDLE BEAR.PISTONPIN 12X15X17

8 820 ₽
18

46030078100 LOCKING WASHER 14X20X1 UNTIL ENGINE NO. B65 5

LOCKING WASHER 14X20X1 UNTIL ENGINE NO. B65 5

740 ₽
18

47033040000 STOP DISC 15X25X1 FROM ENGINE NO. B65 5000875

STOP DISC 15X25X1 FROM ENGINE NO. B65 5000875

240 ₽
19

46030029100 HH-NUT M14X1,25X5

HH-NUT M14X1,25X5

2 600 ₽
20

46035056100 SHAFT SEAL RING 10X18X4

SHAFT SEAL RING 10X18X4

2 800 ₽
21

46035057000 WATER PUMP BEARING 10X19X5

WATER PUMP BEARING 10X19X5

7 130 ₽
22

46035058000 WA.PU.BEAR. 10X19X5 DOUBLELIP

WA.PU.BEAR. 10X19X5 DOUBLELIP

8 000 ₽
23

45135054000 WATER PUMP SHAFT

WATER PUMP SHAFT

9 230 ₽
24

46035055100 WATER PUMP WHEEL

WATER PUMP WHEEL

2 980 ₽
25

0471090010 CIRCLIP DIN0471- 9X1

CIRCLIP DIN0471- 9X1

290 ₽
26

50230029012 LOCKING RING VSK 12

LOCKING RING VSK 12

290 ₽
27

49030021000 COLLAR NUT M12X1 R/S

COLLAR NUT M12X1 R/S

2 660 ₽
28

45135058000 SPRING FOR WATER PUMP SHAFT

SPRING FOR WATER PUMP SHAFT

320 ₽
29

0888030050 WOODRUFF KEY DIN6888-3X5X13

WOODRUFF KEY DIN6888-3X5X13

290 ₽
