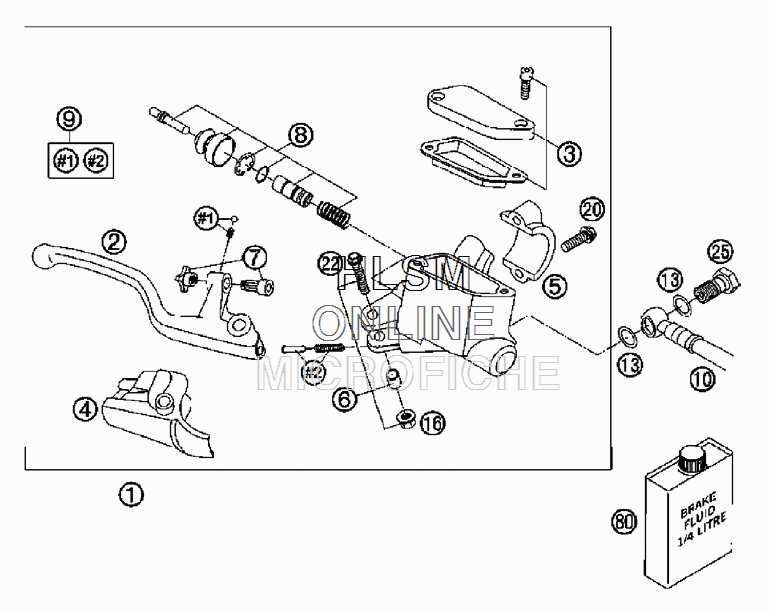

HAND BRAKE CYLINDER для Ktm 65 SX - 2006 года выпуска
-
№АртикулНазвание
-
147013001000 HAND BRAKE CYL. CPL.HAND BRAKE CYL. CPL.
-
247013002000 BRAKE LEVER LOOSEBRAKE LEVER LOOSE
-
347013003000 CYLINDER COVER CPL. FRONTCYLINDER COVER CPL. FRONT
-
447013004000 PROTECTION COVERPROTECTION COVER
-
547013005000 CLAMP FOR BRAKE CYLINDERCLAMP FOR BRAKE CYLINDER
-
647013006000 SCREW+BUSHING+NUTSCREW+BUSHING+NUT
-
747013007000 ADJUSTING SCREW CPL.ADJUSTING SCREW CPL.
-
847013008000 REP.SET PISTON FRONT D=11MMREP.SET PISTON FRONT D=11MM
-
947013009000 BALL+SPRING+SPRING GUIDEBALL+SPRING+SPRING GUIDE
-
1046113010100 BRAKE HOSE FRONTBRAKE HOSE FRONT
-
130770080019 O-RING 8,00X1,00 EPDMO-RING 8,00X1,00 EPDM
-
1656509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
200015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
220015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
2547013025000 HOLLOW SCREW BRAKE CYLINDER 03HOLLOW SCREW BRAKE CYLINDER 03
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
