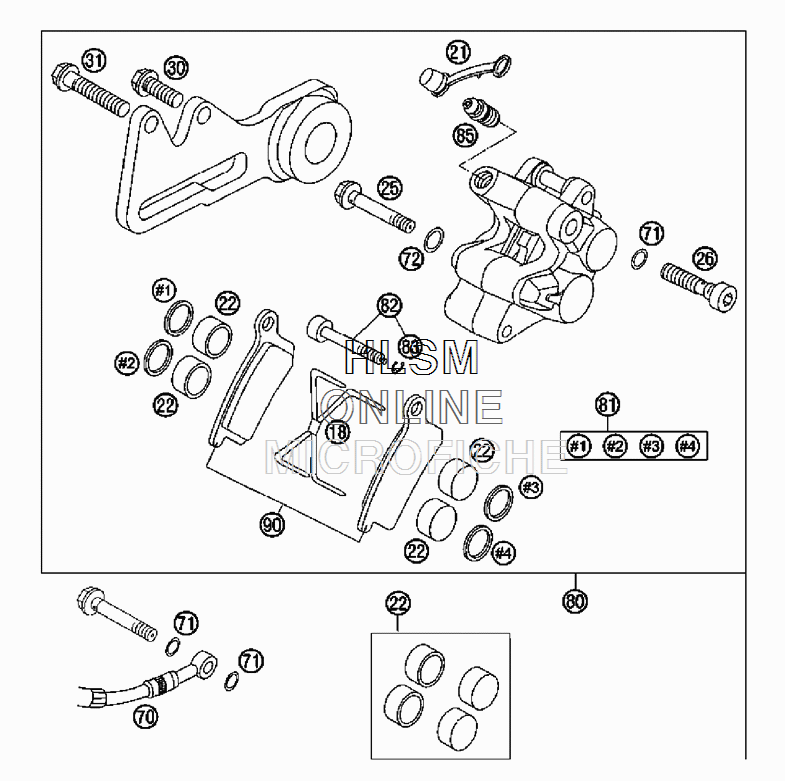

BRAKE CALIPER REAR для Ktm 85 SX - 2006 года выпуска
-
№АртикулНазвание
-
1846113018000 RETAINING SPRINGRETAINING SPRING
-
2147013021000 CAP FOR BLEEDER SCREWCAP FOR BLEEDER SCREW
-
2247013083100 REPAIR KIT BRAKEPISTONREPAIR KIT BRAKEPISTON
-
2547013225000 HOLLOW SCREW REARHOLLOW SCREW REAR
-
2647013325000 HOLLOW SCREW REARHOLLOW SCREW REAR
-
300015080203 HH COLLAR SCREW M 8X20 WS=10HH COLLAR SCREW M 8X20 WS=10
-
310015080403 HH COLLAR SCREW M 8X40 WS=10HH COLLAR SCREW M 8X40 WS=10
-
7047013070000 BRAKE HOSE REARBRAKE HOSE REAR
-
710770080019 O-RING 8,00X1,00 EPDMO-RING 8,00X1,00 EPDM
-
720770100019 O-RING 10X1 EPDMO-RING 10X1 EPDM
-
8047013080100 BRAKE CALIPER RE. CPL.BRAKE CALIPER RE. CPL.
-
8147013081000 REPAIR KIT SEAL RING REARREPAIR KIT SEAL RING REAR
-
8247013425000 AH SCREW + CIRCLIP 85/105AH SCREW + CIRCLIP 85/105
-
830799040009 TAB WASHER DIN6799-RA 4,0TAB WASHER DIN6799-RA 4,0
-
8547013085000 BLEEDER SCREW M8X1BLEEDER SCREW M8X1
-
9047013090100 BRAKE PAD SET REARBRAKE PAD SET REAR
